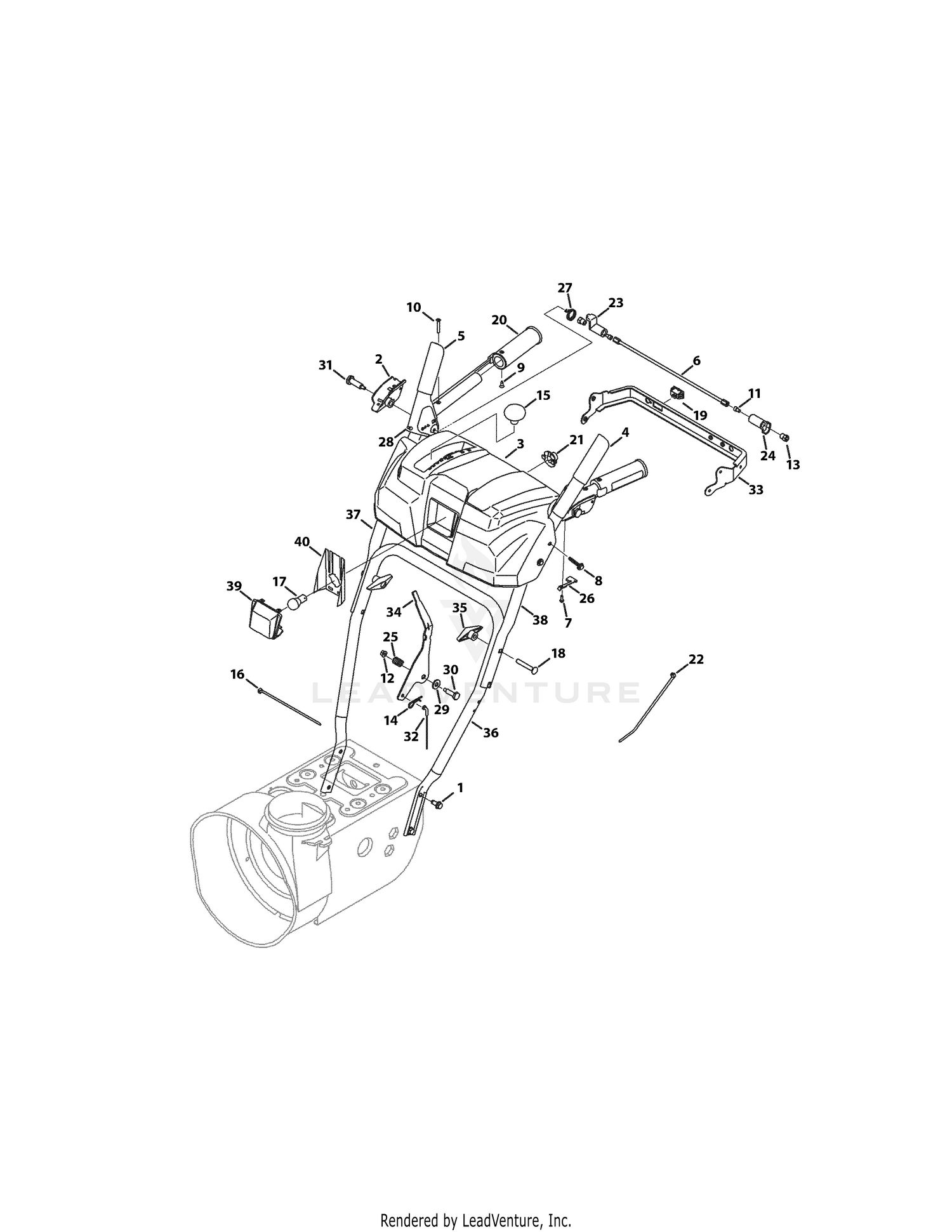

| Ref | Part Number | Description |
|---|
| 1 |
710-04484 |
SCREW 5/16-18 x .750 Price: $3.19 |
| 2 |
631-04133A |
Clutch Lock, LH Price: $13.42 |
| 2 |
631-04134B |
Clutch Lock, RH Price: $13.42 |
| 3 |
931-04181A |
Handle Panel w/ Light Price: $51.97 |
| 4 |
684-04105D |
HANDLE ASSEMBLY (LH) This part replaces 684-04105C. Price: $20.10 |
| 5 |
684-04106D |
HANDLE ASSEMBLY (RH) This part replaces 684-04106C. Price: $19.00 |
| 6 |
684-04250 |
Pivot Rod Price: $11.00 |
| 7 |
710-04326 |
Screw, Plastite, 8-16 x .50 Price: $3.37 |
| 8 |
710-04586 |
Screw, Taptite, 1/4-20 x 1.625 Price: $6.07 |
| 9 |
710-0837 |
Screw, 10-16 x 0.625 Price: $3.85 |
| 10 |
710-1233 |
Screw, 10-24 x 1.375 Price: $3.95 |
| 11 |
710-3069 |
Screw, 1/4-20 x .50 Price: $4.08 |
| 12 |
712-04064 |
Nut, Flange Lock, 1/4-20 Price: $3.64 |
| 13 |
712-04081A |
Nut, Hex, 1/4-20 Price: $6.49 |
| 14 |
714-0145 |
Click Pin This part replaces 914-0145. Price: $4.42 |
| 15 |
720-04039 |
Shift Knob Price: $9.09 |
| 16 |
725-0157 |
Cable Tie, 7" Price: $3.46 |
| 17 |
925-1629 |
Lamp, 12.8V Price: $9.70 |
| 18 |
710-0572 |
Screw, Carriage, 5/16-48 x 2.25 Price: $3.75 |
| 19 |
725-04393 |
Heated Grip Switch Price: $14.90 |
| 20 |
720-0274 |
Grip Price: $9.99 |
| 21 |
925-1649A |
HEADLIGHT SOCKET (1/4 TURN) This part replaces 925-1649. Price: $10.30 |
| 22 |
926-0154 |
Cable Tie, Push Mount Price: $5.50 |
| 23 |
731-04894D |
Plate, Lock Price: $4.61 |
| 24 |
731-04896C |
CLUTCH LOCK CAM This part replaces 731-04896B. Price: $3.56 |
| 25 |
732-0193 |
Compression Spring, .39 x .60 x .88 Price: $4.11 |
| 26 |
732-04219C |
Clutch Lock Spring Price: $3.70 |
| 27 |
732-04238B |
Torsion Spring, 0.8156 x .3038 Price: $4.66 |
| 28 |
735-0199A |
Rubber Bumper This part replaces 935-0199A. Price: $6.89 |
| 29 |
936-0267 |
Washer, Flat, .385 x .87 Price: $3.90 |
| 30 |
738-04125 |
Screw, Shield, .374 x 1.05 Price: $4.08 |
| 31 |
738-04348 |
Screw, Shoulder, .437 x 1.345 x 1/4-20 Price: $3.14 |
| 32 |
946-04396A |
Speed Selector Cable Price: $18.04 |
| 33 |
790-00248E-0637 |
HANDLE SUPPORT BRACKET This part replaces 790-00248C. Price: $21.49 |
| 34 |
790-00311C-0637 |
Shift Lever Price: $24.22 |
| 35 |
720-0284 |
Knob This part replaces 920-0284. Price: $4.08 |
| 36 |
749-04138C-0637 |
Lower Handle This part replaces 749-04138B-0638. Price: $77.98 |
| 37 |
749-04190A-0637 |
Upper RH Handle This part replaces 749-04190A-0638. Price: $39.79 |
| 38 |
749-04191A-0637 |
Upper LH Handle This part replaces 749-04191A-0638. Price: $39.80 |
| 39 |
731-05319 |
Lens Panel, Troy-Bilt Price: $12.25 |
| 40 |
777X41805 |
Lens Label, Troy-Bilt Price: $8.16 |
