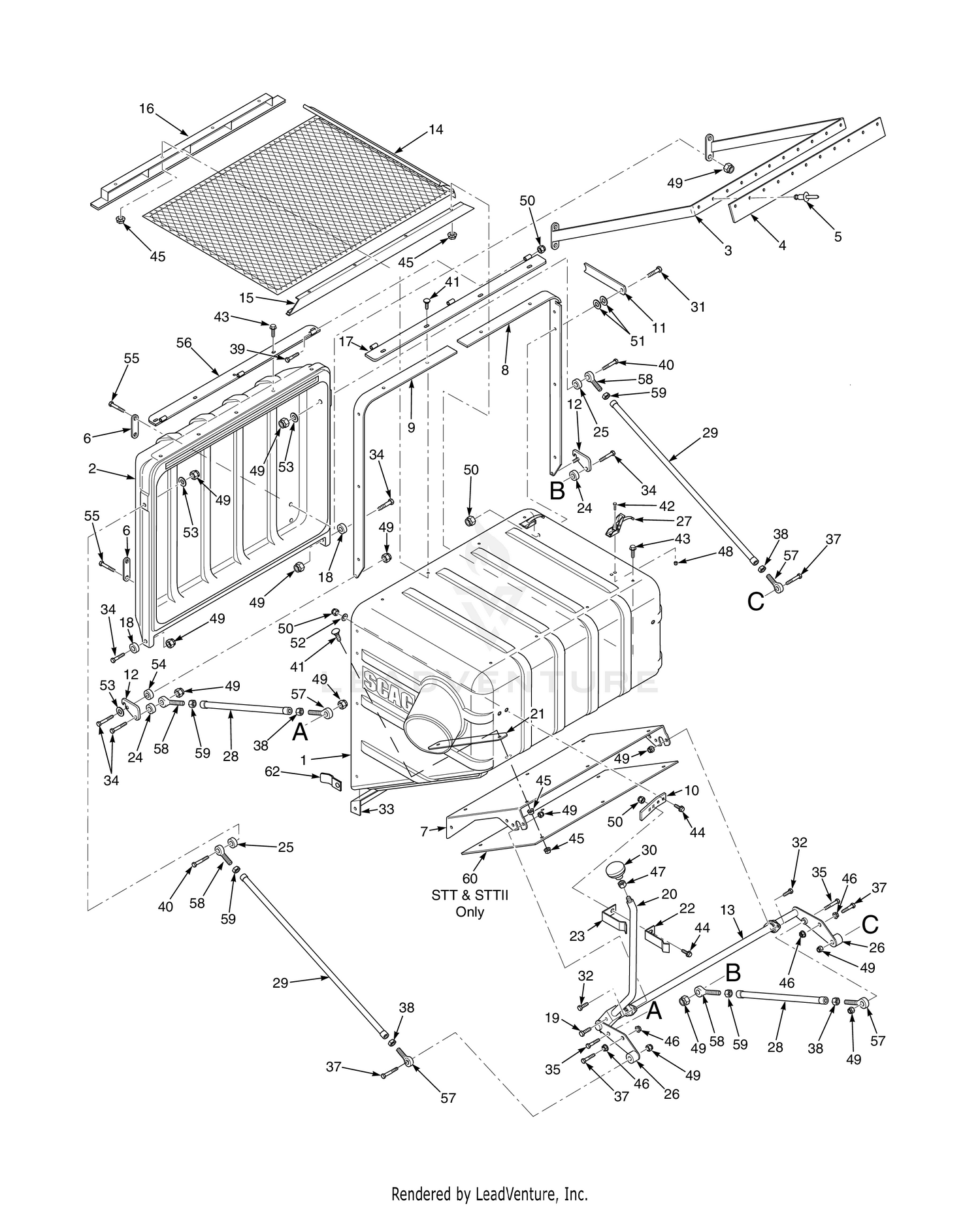

| Ref | Part Number | Description |
|---|
| 1 |
483038 |
Hopper, GC-STT-CS Price: Call Us |
| 2 |
482732 |
Door, GC-CS Price: Call Us |
| 3 |
461626 |
Sweeper Weldment, GC-CS Price: Call Us |
| 4 |
482777 |
Pad, Rubber Price: Call Us |
| 5 |
04090-02 |
Pop Rivet, 3/16 x .652" Price: Call Us |
| 6 |
423834 |
Plate, Stiffener Price: Call Us |
| 7 |
428293 |
Support Frame, Hopper Price: Call Us |
| 8 |
423849 |
Hinge Bracket, L.H. Price: Call Us |
| 9 |
423850 |
Hinge Bracket, R.H. Price: Call Us |
| 10 |
425802 |
Mounting Bracket, Dump Handle Latch Price: Call Us |
| 11 |
423837 |
Latch, Door Prop Price: Call Us |
| 12 |
423840 |
Plate, Latch Price: Call Us |
| 13 |
451980 |
Bellcrank Weldment, Upper Price: Call Us |
| 14 |
451601 |
Debris Screen Weldment Price: Call Us |
| 15 |
451602 |
Screen Support Weldment, Rear Price: Call Us |
| 16 |
451603 |
Screen Support Weldment, Front Price: Call Us |
| 17 |
451607 |
Hinge Weldment, Hopper Price: Call Us |
| 18 |
43631 |
Spacer, Idler Bearing Price: Call Us |
| 19 |
04001-12 |
Bolt, Hex Head 5/16-18 x 1-1/2" - Front Price: Call Us |
| 20 |
44185 |
Rod, Dump Lever GC-SCZ-CS Price: Call Us |
| 21 |
423836 |
Retainer Strip, Hopper Price: Call Us |
| 22 |
424405 |
Latch, Dump Rod Inner Price: Call Us |
| 23 |
424406 |
Latch, Dump Rod Outer Price: Call Us |
| 24 |
43063 |
SPACER, IDLER Price: Call Us |
| 25 |
43282 |
SPACER, J PULL ROD Price: Call Us |
| 26 |
43277 |
SPACER, J-PULL ROD Price: Call Us |
| 27 |
481309 |
LATCH, HOOD Price: Call Us |
| 28 |
43641 |
Linkage Assembly, Lower Price: Call Us |
| 29 |
43640 |
Linkage Assembly, Upper Price: Call Us |
| 30 |
481245 |
Knob, Cutter Deck Release Price: Call Us |
| 31 |
04001-10 |
Bolt, 5/16 - 18 x 1 - 1/4" Hex Head Price: Call Us |
| 32 |
04001-18 |
Bolt, Hex Head, 3/8-16 x 3/4" Price: Call Us |
| 33 |
423855 |
Bracket, Lower Stiffener Price: Call Us |
| 34 |
04001-20 |
Bolt, Hex Head 3/8-16 x 1-1/2" B&S 32BV Price: Call Us |
| 35 |
04001-21 |
Bolt, Hex Head 3/8-16 x 1-3/4" (Kohler EFI) Price: Call Us |
| 36 |
423865 |
Alignment Bracket, GC-CS Price: Call Us |
| 37 |
04001-45 |
Capscrew, Hex Head 3/8-16 x 2.0" Price: Call Us |
| 38 |
04020-25 |
Nut, 3/8-24 UNF R.H. Thread Price: Call Us |
| 39 |
04001-63 |
Bolt, Hex Head 5/16-18 x 3-1/2" Price: Call Us |
| 40 |
04001-77 |
Bolt, Hex Head, 3/8-16 x 3-1/2" Price: Call Us |
| 41 |
04003-04 |
Bolt, Carriage 5/16-18x1" (large frame units only) Price: Call Us |
| 42 |
04010-01 |
SCREW, PHILLIPS WASHER HEAD #10-32 X 1/2" Price: Call Us |
| 43 |
04017-16 |
Capscrew, 5/16-18 x .75 Serrated Flange Hex Head Price: Call Us |
| 44 |
04017-17 |
Cpscrw, 5/16-18 x 1"Serrated Flange Hex Head Price: Call Us |
| 45 |
04019-03 |
Nut, Serrated Flange 5/16-18 (Right Front Engine Mounting, Briggs and Kohler Only) Price: Call Us |
| 46 |
04019-04 |
NUT, 3/8-16 SERRATED FLANGE HEX HEAD Price: Call Us |
| 47 |
04020-12 |
Nut, Jam 3/8-16 Price: Call Us |
| 48 |
04021-01 |
HEX NUT, ELASTIC STOP LOCK # 10-32 Price: Call Us |
| 49 |
04021-09 |
HEX NUT, ELASTIC STOP LOCK, 3/8-16 Price: Call Us |
| 50 |
04021-10 |
HEX NUT, ELASTIC STOP LOCK, 5/16-18 Price: Call Us |
| 51 |
04032-01 |
Socket Head Capscrew #8-32 x 1/2" Price: Call Us |
| 52 |
04040-15 |
Flatwasher, 5/16-.375 x .875 x .083 (35BV & 37BV-EFI) Price: Call Us |
| 53 |
04041-07 |
Flatwasher, 3/8" Special (.391 x .938 x .105) Price: Call Us |
| 54 |
43642 |
Bushing, Hopper Latch GC-CS Price: Call Us |
| 55 |
04001-54 |
Bolt, Hex Head 3/8-16 x 3" - 52" Price: Call Us |
| 56 |
451598 |
Hinge Weldment, Door Price: Call Us |
| 57 |
482586 |
Rod End, Male 3/8-24 RH Thread This part replaces 481539. Price: Call Us |
| 58 |
482585 |
Rod End, Male 3/8-24 LH Thread This part replaces 481538. Price: Call Us |
| 59 |
04020-26 |
Nut, 3/8-24 UNF-2B LH Thread Price: Call Us |
| 423859 |
Backing |
Plate, Hopper (Not Shown) Price: Call Us 423859 |
