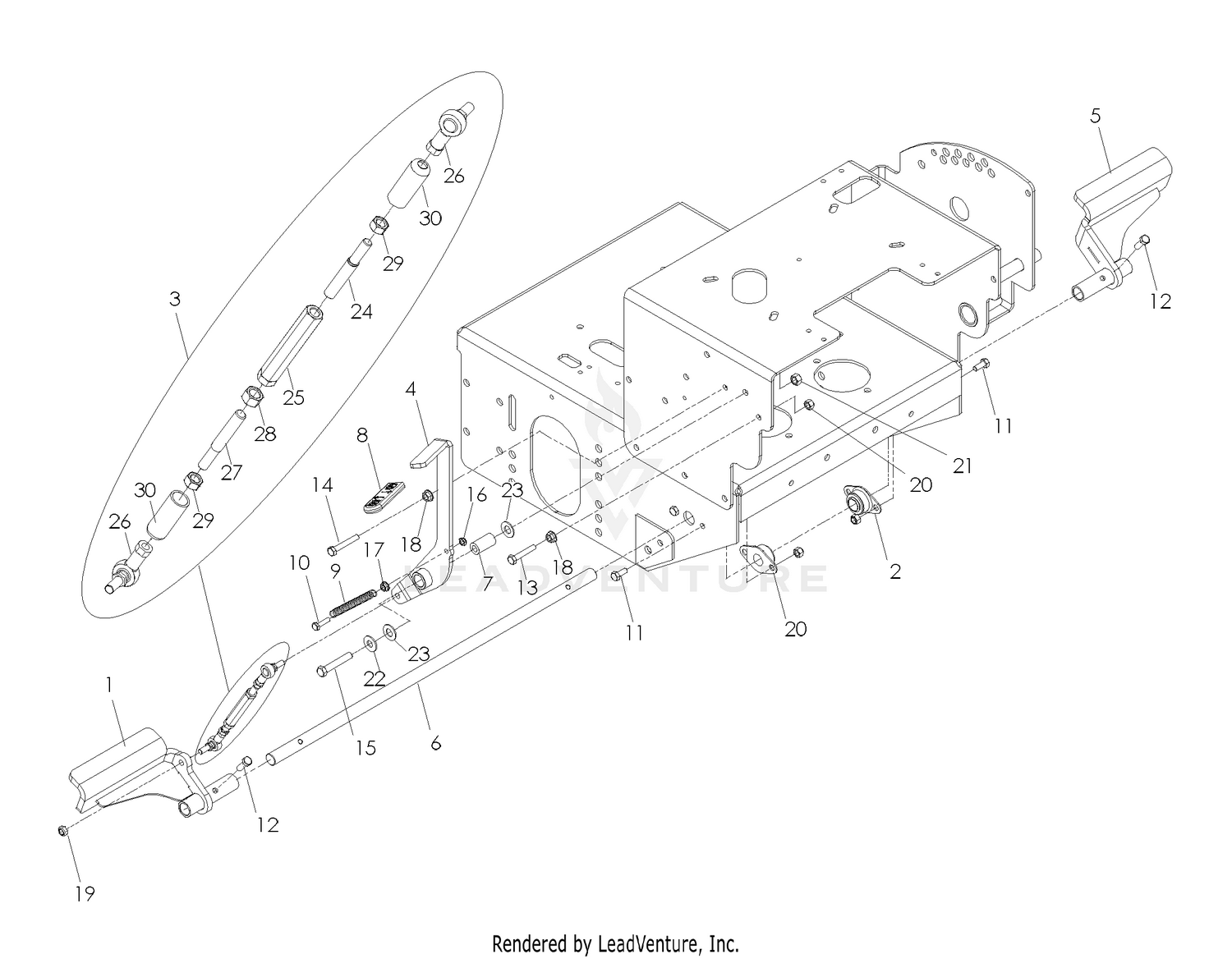

| Ref | Part Number | Description |
|---|
| 1 |
104-4620 |
SEAT This part replaces 92-1180. Price: $273.15 |
| 1 |
539110355 |
SNUBBER WELDMENT, LT Price: $69.99 |
| 2 |
323-4 |
SCREW-HH Price: $1.02 |
| 2 |
539102797 |
FLANGE BEARING Price: $9.99 |
| 3 |
539110347 |
LINKAGE, BRAKE Price: $169.95 |
| 3 |
75-4370-03 |
BRACKET-SEAT Price: $20.93 |
| 4 |
3296-54 |
NUT-LOCK Price: $3.59 |
| 4 |
539110358 |
ARM, BRAKE, WELDMENT Price: $43.99 |
| 5 |
539110356 |
SNUBBER WELDMENT, RT Price: $69.99 |
| 5 |
92-8753 |
DISCONTINUED Price: Call Us |
| 6 |
3250-29 |
SCREW-PPH Price: $0.25 |
| 6 |
539110350 |
SHAFT, BRAKE Price: $39.99 |
| 7 |
539101836 |
BUSHING, SLEEVE Price: $2.99 |
| 7 |
92-8001 |
SENSOR-SWITCH, REED Price: $86.02 |
| 8 |
539109798 |
GRIP, PARK BRAKE Price: $3.99 |
| 8 |
75-4360-03 |
BRACKET-SUSPENSION, SEAT Price: $17.81 |
| 9 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 9 |
539977250 |
SPRING Price: $3.99 |
| 10 |
110-9730 |
SEAT SUSPENSION ASM This part replaces 75-3000. Price: $776.63 |
| 10 |
539990548 |
HCS 1/4 X 1 Price: $2.99 |
| 11 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 539990206. Price: $3.99 |
| 11 |
74-0720 |
TUBE-MANUAL Price: $22.99 |
| 12 |
2412-133 |
CLAMP-R Price: $3.19 |
| 12 |
596580801 |
Bolts This part replaces 539990209. Price: $2.99 |
| 13 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 13 |
874780528 |
SCREW This part replaces 539990669. Price: $4.99 |
| 14 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 14 |
539976937 |
HCS 5/16-18X2 Price: $2.99 |
| 15 |
322-3 |
SCREW-HH Price: $0.79 |
| 15 |
539990588 |
HCS 3/8C X 2 Price: $3.99 |
| 16 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 539108120. Price: $1.99 |
| 17 |
539108735 |
NUT 1/4-20 HEX FLG LK ZD Price: $3.99 |
| 18 |
596039201 |
GSPW Hardware This part replaces 539990585. Price: $2.99 |
| 19 |
596580701 |
Nuts This part replaces 539990184. Price: $2.99 |
| 20 |
596583702 |
Nuts This part replaces 539990717. Price: $2.99 |
| 21 |
596240901 |
GSPW Nuts This part replaces 539976979. Price: $2.99 |
| 22 |
596433701 |
GSPW Washers This part replaces 539990517. Price: $2.99 |
| 23 |
596581701 |
Washers This part replaces 539102843. Price: $2.99 |
| 24 |
539110347 |
LINKAGE, BRAKE This part replaces 539110360. Price: $169.95 |
| 25 |
539109149 |
TURNBUCKLE, 3/8 Price: $39.99 |
| 26 |
539110603 |
SPHERICAL ROD END, RH Price: $27.99 |
| 27 |
539110359 |
LINKAGE, LH Price: $12.15 |
| 28 |
539990155 |
NUT 3/8F Price: $2.99 |
| 29 |
596040901 |
Hardware This part replaces 539990223. Price: $2.99 |
