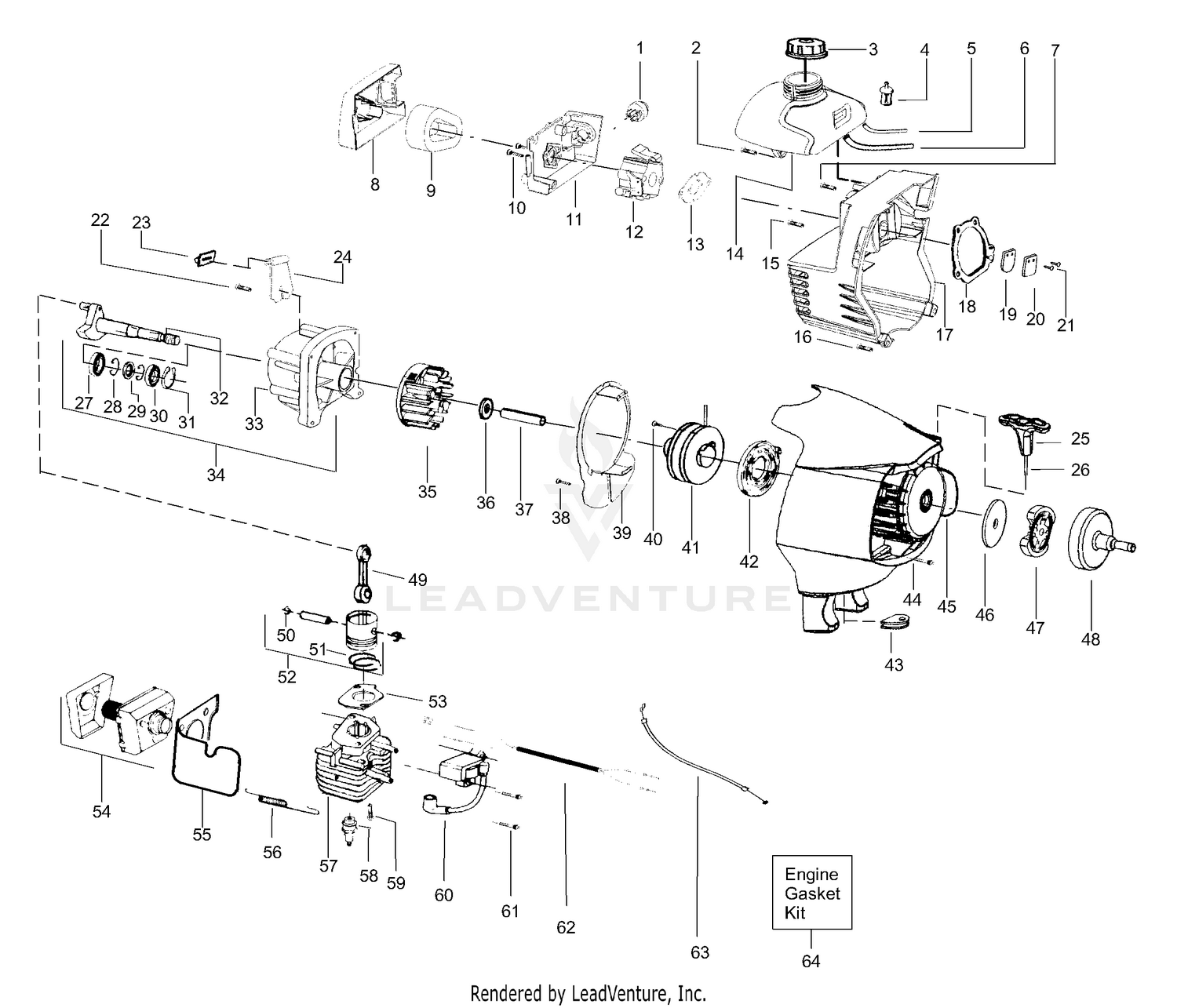

Engine Assembly
Parts (61)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 530047721 | Bulb-purge Price: $3.99 |
| 2 | 530015843 | Screw-tank Price: $1.99 |
| 3 | 530057973 | Assy - Fuel Cap w/retainer This part replaces 530049386. Price: $7.99 |
| 4 | 530095646 | Assy-Fuel pick-up Price: $2.99 |
| 5 | 530069247 | Kit-Fuel Line This part replaces 530071404. Price: $3.99 |
| 6 | 530069216 | Kit-Fuel/Purge line Price: $3.99 |
| 7 | 530015775 | Screw Price: $1.99 |
| 8 | 530054935 | Cover-Air box Price: $1.99 |
| 9 | 530054946 | Filter-Air Price: $1.99 |
| 10 | 530015849 | Screw-carb. Price: $1.99 |
| 11 | 530054934 | Air Box Price: $3.99 |
| 12 | 530071565 | Assy-carb.(wt619) Price: $19.68 |
| 13 | 530071401 | Gasket-Carb. (kit) Price: $3.99 |
| 14 | 545075305 | Assy-Fuel Tank This part replaces 530055317. Price: $11.99 |
| 15 | 530015771 | Screw-crankcase Price: $1.99 |
| 16 | 530015952 | Screw-shrd to f/hsg. Price: $1.99 |
| 17 | 530056044 | Shroud Price: $11.99 |
| 18 | 530071401 | Gasket-c/case (kit) Price: $3.99 |
| 19 | 530027593 | Valve-reed Price: $1.99 |
| 20 | 530054596 | Stop-reed Price: $1.99 |
| 21 | 545227101 | SCREW 6-19X.437 This part replaces 530016064. Price: $1.99 |
| 22 | 530015875 | Screw-tank retainer Price: $1.99 |
| 23 | 530055492 | Isolator-fuel tank Price: $1.99 |
| 24 | 530054941 | Ret.-fuel tank Price: $1.99 |
| 25 | 530054834 | Handle-starter Price: $1.99 |
| 26 | 530071400 | Kit-Rope Price: $1.20 |
| 27 | 530032103 | Bearing-inner Price: Call Us |
| 28 | 530015787 | Retainer Price: $1.99 |
| 29 | 530019158 | Seal Price: $2.99 |
| 30 | 530032102 | Bearing-outer Price: $8.99 |
| 31 | 530015789 | Retainer-crankshaft Price: $2.99 |
| 32 | 530054948 | Assy-crankshaft Price: $22.99 |
| 33 | 530014016 | Assy-crankcase Price: Call Us |
| 35 | 530071402 | Kit-Flywheel Assy. Price: $8.64 |
| 36 | 530016030 | Washer Price: $1.99 |
| 37 | 530055620 | Spacer Price: $4.99 |
| 38 | 530015775 | Screw-baffle Price: $1.99 |
| 39 | 530056864 | Plate-baffle Price: $3.33 |
| 40 | 530016326 | Screw-rope Price: $1.99 |
| 42 | 545008011 | KIT STARTER SPRING This part replaces 530042086. Price: $5.99 |
| 43 | 530019182 | Grommet Price: $1.99 |
| 44 | 530016386 | SCREW This part replaces 530015810. Price: $5.99 |
| 45 | 530056225 | Housing-Fan w/eyelet Price: $11.29 |
| 46 | 530094189 | Washer-Clutch Price: $2.99 |
| 47 | 530055122 | Assy.-Clutch Price: $8.99 |
| 48 | 530028799 | Assy-Drum Price: $4.48 |
| 49 | 530010960 | Assy-Connecting rod Price: $14.99 |
| 50 | 530015162 | Retainer-piston pin Price: $1.99 |
| 51 | 530025875 | Ring-Piston Price: $4.99 |
| 52 | 530069899 | Kit-Piston Price: $19.99 |
| 53 | 530071401 | Gasket-Cylinder (kit) Price: $3.99 |
| 54 | 530069310 | Kit-Muffler Price: $9.99 |
| 55 | 530058957 | Shield This part replaces 530053346. Price: $3.99 |
| 56 | 530036409 | Spring-muffler Price: $1.99 |
| 57 | 530071582 | Kit-Cylinder Price: $19.99 |
| 58 | 952030249 | Spark plug (RCJ-6Y) Price: $3.99 |
| 59 | 530001624 | Bolt-Cylinder Price: $1.99 |
| 60 | 545081826 | Kit - Ignition Module This part replaces 530039217. Price: $32.99 |
| 61 | 530016357 | Screw-module Price: $1.99 |
| 62 | 530057238 | Assy-Rear wire Price: $5.99 |
| 63 | 530054942 | Assy-Throttle Cable Price: $3.99 |
