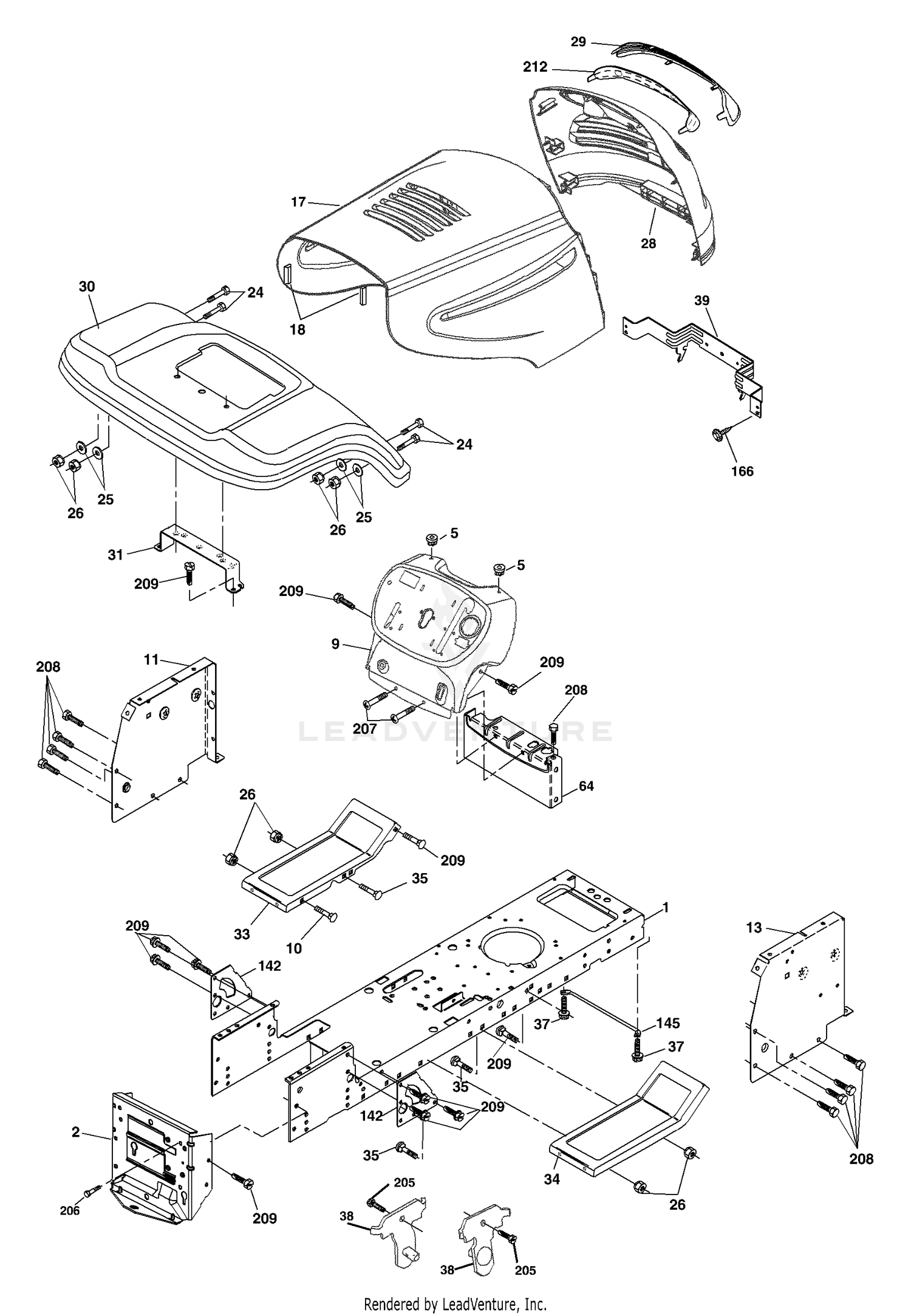

Chassis And Enclosures

Chassis And Enclosures

Parts (38)

RefPart NumberDescription
1 104-8301 NUT-HF, NI Price: $1.09
1 174619 Chassis Price: Call Us
2 110-0621-03 BLADE-MEDIUM FLOW Price: $38.49
2 110-0624-03 BLADE-ROTARY, ATOMIC Price: $43.26
2 176554 Drawbar Price: Call Us
3 72-9361 CUP-SCALP, ANTI Price: $39.78
4 92-5816 BOLT-BLADE Price: $4.93
5 155272 Bumper Hood/Dash Price: Call Us
9 187846X012 Dash Price: Call Us
10 72140608 Bolt Carriage 3/8-16 x 1 Price: Call Us
11 174996 Panel Dash Lh Price: Call Us
13 179174X010 Panel Dash Rh Price: Call Us
17 183394X428 Hood Price: Call Us
18 126938X Bumper Hood Price: Call Us
24 74780616 Bolt Fin Hex 3/8-16 x 1 Gr. 5 Price: Call Us
25 19131312 Washer 13/32 x 13/16 x 12 Ga. Price: Call Us
26 73800600 Nut Lock Hex W/Ins 3/8-16 unc Price: Call Us
28 183826 Grille Price: Call Us
29 183824X599 Lens Price: Call Us
30 169468X505 Fender Footrest STLT Pnt Price: Call Us
31 136619 Bracket Support Fender Price: Call Us
33 179716X505 Footrest Pnt Lh Price: Call Us
34 179717X505 Footrest Pnt Rh Price: Call Us
35 72110606 Bolt Rdhd Sht Sqnk 3/8-16 x 3/4 Price: Call Us
37 17490508 Screw Thdrol 6/16-18 x 1/2 TYT Price: Call Us
38 175710 Bracket Asm. Pivot Mower Rear Price: Call Us
39 174714 Bracket Pivot Price: Call Us
64 154798 Dash Lower STLT Price: Call Us
142 175702 Plate Reinforcement STLT Price: Call Us
145 156524 Rod Pivot Chassis/Hood Price: Call Us
166 171875 Screw HWHD Hi-Lo #13-16 x 5/8 Price: Call Us
205 17490608 Screw Thdrol 3/8-16 x 1-1/4 Price: Call Us
206 170165 Bolt Shoulder 5/16-18 Price: Call Us
207 17670508 Screw Thdrol 5/16-18 x 1/2 Price: Call Us
208 17670608 Screw Thdrol 3/8-16 x 1/2 Price: Call Us
209 17000612 Screw Hex Wsh Thdr. 3/8-16 x 3/4 Price: Call Us
212 183823 Insert Lens Reflect Price: Call Us
5479J Plug Btn Blk .359 Price: Call Us 5479J
