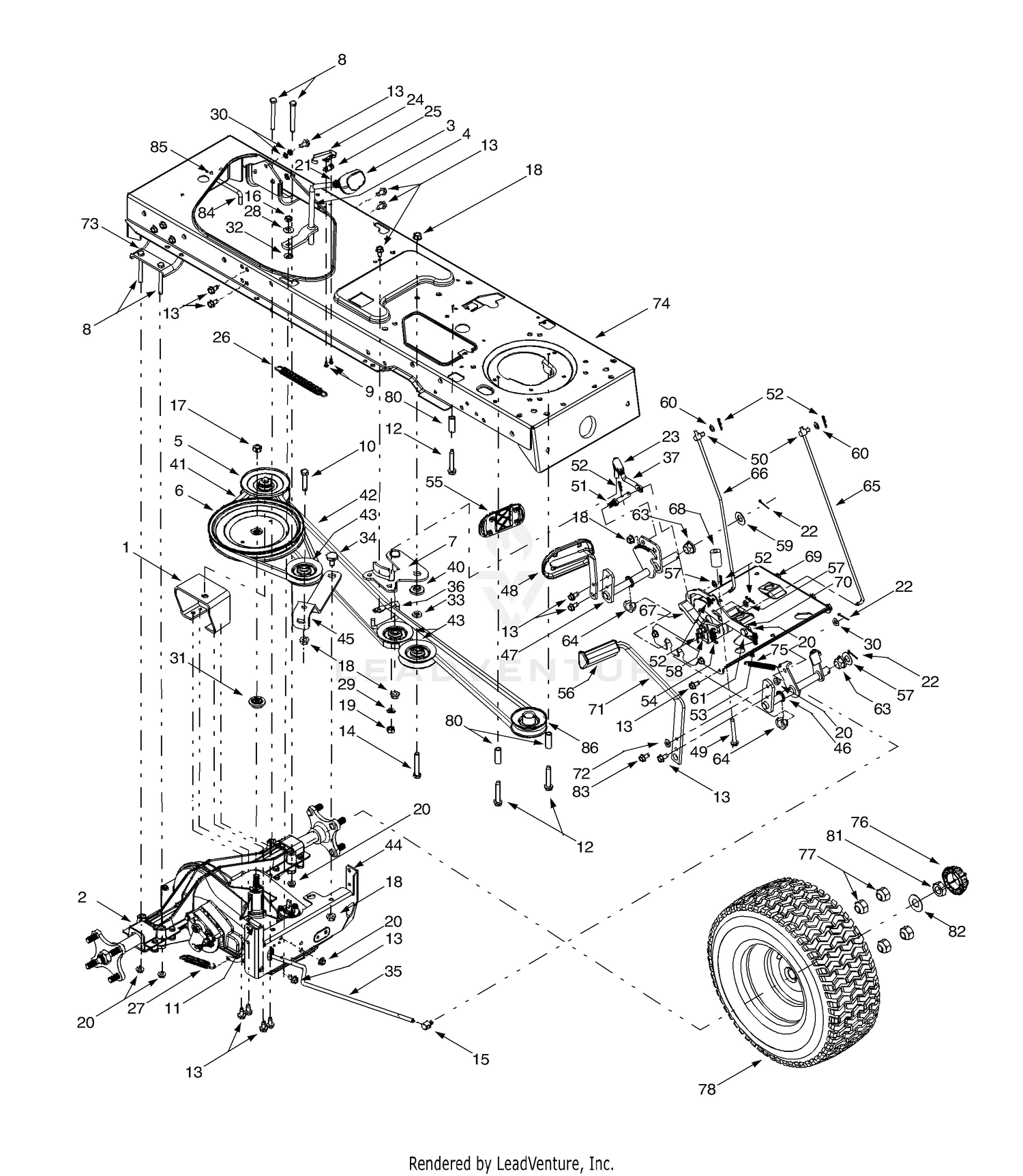

| Ref | Part Number | Description |
|---|
| 1 |
918-0375 |
BRACKET ASSEMBLY Not Available Price: |
| 2 |
753-05002 |
TRANS ASSEMBLY-COMP 2SPD Not Available Price: |
| 3 |
931-0009A |
Shfter Knob Price: $13.05 |
| 4 |
647-0037 |
SHIFT LEVER Not Available Price: |
| 5 |
656-0050 |
VARIABLE SPEED PULLEY ASSEMBLY Not Available Price: |
| 6 |
956-0665 |
Transmission Pulley, 8.5 Price: $64.59 |
| 8 |
710-0176 |
Hex Cap Screw, 5/16-18 x 2.75 Price: $3.89 |
| 9 |
710-0227 |
Self Tapping Screw, #8-18 x .5 Price: $3.90 |
| 10 |
710-0347 |
Hex Cap Screw, 3/8-16 x 1.75 Price: $4.39 |
| 11 |
710-0805A |
SCREW 5/16-18 x 1.5 LG This part replaces 710-0805. Price: $3.75 |
| 12 |
710-0809 |
Self-tapping Screw, 1/4-20 x 1.25 Price: $6.37 |
| 13 |
710-0604A |
Self Tapping Screw, 5/16-18 x .625 Price: $3.96 |
| 14 |
710-3011 |
Hex Cap Screw, 3/8-16 x 2.25 Price: $6.49 |
| 15 |
911-0677 |
Ferrule, 5/16 x .312 Dia. Price: $15.59 |
| 16 |
712-0181 |
Top Lock Jam Nut, 3/8-16 This part replaces 912-0181. Price: $3.90 |
| 17 |
912-0702 |
Hex Flange Nut, 7/16-20 Price: $16.10 |
| 18 |
912-0431 |
Flange Lock Nut, 3/8-16 Price: $4.29 |
| 19 |
712-0798 |
Hex Nut, 3/8-16 Price: $3.86 |
| 20 |
712-3004A |
HEX FLANGE NUT Price: $3.49 |
| 21 |
912-3008 |
Hex Jam Nut, 3/8-16 Price: $4.08 |
| 22 |
714-0111 |
Cotter Pin This part replaces 914-0111. Price: $4.20 |
| 23 |
923-3018 |
Ball Joint, 3/8-24 Price: $15.50 |
| 24 |
725-1713 |
REVERSE SAFETY SWITCH Not Available Price: |
| 25 |
926-0320 |
Insulator Nut Plate Price: $6.01 |
| 26 |
932-0384 |
EXTENSION SPRING Not Available Price: |
| 27 |
732-0716D |
Extension Spring, .59 OD x 4.0 Price: $11.49 |
| 28 |
736-0105 |
Bell Washer, .401 x .870 x .063 Price: $3.96 |
| 29 |
736-0169 |
L-Wash. 3/8" I.D." This part replaces 936-0169. Price: $3.33 |
| 30 |
736-0275 |
FLAT WASHER This part replaces 936-0275. Price: $5.99 |
| 31 |
918-0771A |
PULLEY HUB Not Available Price: |
| 32 |
736-0642 |
FLAT WASHER .44 x .75 x .06 Not Available Price: |
| 33 |
736-3010 |
Flat Washer, .407 x .812 x .135 Price: $4.02 |
| 34 |
738-0322A |
Shoulder Screw, .625 Dia. x .21 Price: $5.94 |
| 35 |
747-1122 |
BRAKE ROD Not Available Price: |
| 37 |
747-1127 |
IDLER ADJUSTMENT ROD Not Available Price: |
| 38 |
710-1026 |
Self-tapping Screw, 1/4-20 x 1.75 Price: $5.94 |
| 39 |
747-1185 |
TRANSMISSION BELT GUARD ROD Not Available Price: |
| 40 |
738-0372B |
Shoulder Spacer, .380 ID Price: $8.78 |
| 41 |
954-0468 |
Variable-speed Belt Price: $28.07 |
| 42 |
954-0467A |
Drive Belt Price: $46.63 |
| 43 |
756-04224 |
Flat Idler, 2.75 OD Price: $24.80 |
| 44 |
783-0667A-0637 |
TRANSMISSION TORQUE BRACKET Not Available Price: |
| 45 |
783-0669-0637 |
Idler Bracket Price: $18.95 |
| 46 |
753-05606 |
SERVICE REPLACEMENT KITLAC Not Available Price: |
| 47 |
647-0032A-0637 |
SPEED CONTROL ASSEMBLY (POWDER BLACK) Not Available Price: |
| 48 |
683-0266 |
CONTROL PEDAL ASSEMBLY Not Available Price: |
| 49 |
710-1135 |
SCREW 5/16-18 x 2.50 Not Available Price: |
| 50 |
711-0736 |
ADJUSTMENT FERRULE 1/4-20 x 1.00 Not Available Price: |
| 51 |
711-1363 |
PIN 3/8-16 x 2.21 Not Available Price: |
| 52 |
714-0104 |
Hairpin Clip This part replaces 914-0104. Price: $3.90 |
| 53 |
732-0437 |
Compression Spring, .34 OD x 1.0 Price: $8.93 |
| 54 |
732-0955 |
Extension Spring, .5 OD x 1.41 Price: $8.34 |
| 55 |
735-0662 |
Drive Pedal Pad Price: $10.46 |
| 56 |
735-3049A |
Brake Pedal Pad Price: $11.30 |
| 57 |
736-0140 |
Flat Washer, .385 x .62 x .063 This part replaces 936-0140. Price: $6.20 |
| 58 |
736-0142 |
Flat Washer, 9/32 x 1/2 x 1/16 This part replaces 936-0142. Price: $3.95 |
| 59 |
736-0187 |
Flat Washer, .64 x 1.24 x .06 Price: $4.02 |
| 60 |
736-0204 |
Flat Washer, .344 x .062 x .03 Price: $3.89 |
| 61 |
938-0155 |
Shoulder Screw, .437 x 1.62 Price: $6.01 |
| 62 |
738-0507B |
Shoulder Screw, .5D x .434 This part replaces 938-0507B. Price: $3.86 |
| 63 |
941-0225 |
Hex Flange Bearing Price: $6.55 |
| 64 |
741-3065B |
Split Hex Flange Bearing Price: $7.45 |
| 65 |
747-1137 |
CRUISE CONTROL ROD Not Available Price: |
| 66 |
747-1138 |
LOCK CONTROL BRAKE ROD Not Available Price: |
| 67 |
748-0413 |
CRUISE LATCH Not Available Price: |
| 68 |
748-0415B |
SPACER .385ID x 1.54" Not Available Price: |
| 69 |
783-04612-0637 |
Steering Support Bracket Price: $78.74 |
| 70 |
783-0732A |
LOCKOUT BRACKET Not Available Price: |
| 72 |
936-3008 |
Flat Washer, .344 x .750 x .120 Price: $6.24 |
| 75 |
732-0963 |
Extension Spring, .5 OD x 6.37 Price: $8.91 |
| 76 |
731-2290B |
HUB CAP This part replaces 731-2290A. Price: $3.82 |
| 77 |
712-3050 |
Lug Nut, 7/16-14 Price: $9.17 |
| 78 |
634-0202A |
WHEEL ASM COMP.23X Not Available This part replaces 634-0202A-0911. Price: |
| 78 |
634Z04238-0662 |
RIM ASSEMBLY (12 x 7) (OYSTER GREY) This part replaces 634-04238-0662. Price: $173.78 |
| 78 |
734-1728 |
Tire Only, Square Shoulder Price: $116.52 |
| 78 |
934-0255 |
Air Valve Price: $3.83 |
| 79 |
750-0768 |
SPACER-.260 ID x 1.32 LG x 16 Not Available Price: |
| 80 |
750-0566A |
Spacer, .372 x .26 x 1.03 Price: $9.17 |
| 81 |
712-3026 |
Jam Nut This part replaces 912-3026. Price: $4.29 |
| 82 |
736-0316 |
Flat Washer, .78 x 1.59 x .06 This part replaces 936-0316. Price: $4.02 |
| 83 |
710-1260A |
Hex Screw, 5/16-18 x .75 Price: $3.34 |
| 84 |
747-1185 |
TRANSMISSION BELT GUARD ROD Not Available Price: |
| 85 |
710-0599 |
Self Tapping Screw,1/4-20 x .5 Price: $3.86 |
