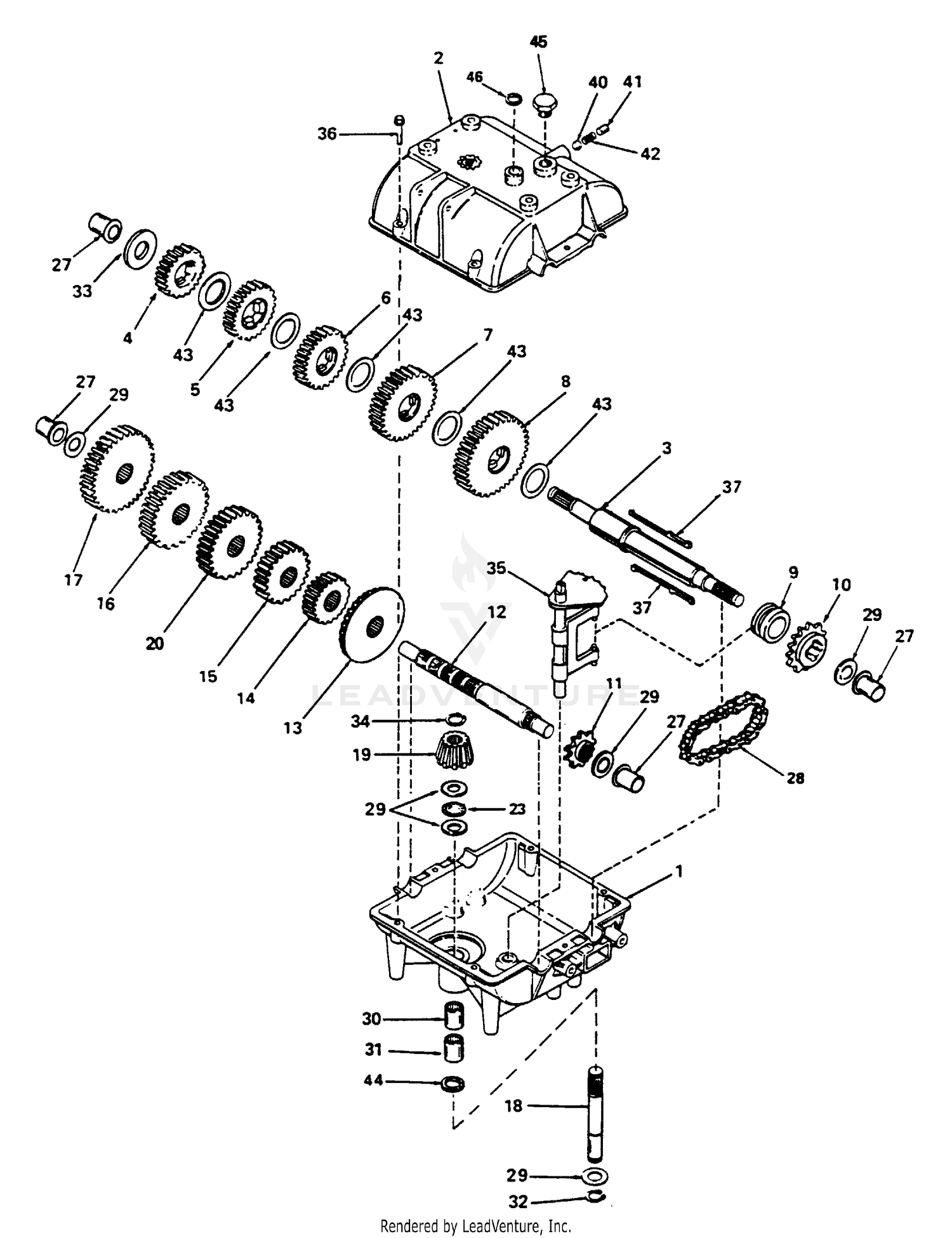

| Ref | Part Number | Description |
|---|
| 1 |
539102075 |
TRANSMISSION CASE Price: $119.60 |
| 2 |
539100371 |
TRANSMISSION COVER Price: $83.34 |
| 2 |
77-3590 |
SHIELD Price: $10.40 |
| 3 |
539102179 |
OUTPUT & BRAKE SHAFT Price: $24.99 |
| 3 |
77-3830 |
CLIP Price: $14.58 |
| 4 |
539102077 |
SPUR GEAR (27 TEETH) Price: $71.69 |
| 4 |
77-3840 |
DISCONTINUED Price: Call Us |
| 5 |
33114-016 |
SCREW-HH This part replaces 48-7700. Price: $0.27 |
| 5 |
539100377 |
SPUR GEAR (30 TEETH) Price: $43.35 |
| 6 |
539102078 |
SPUR GEAR (32 TEETH) Price: $78.05 |
| 6 |
77-3800 |
DISCONTINUED Price: Call Us |
| 7 |
33114-025 |
SCREW-HH This part replaces 48-9460. Price: $0.70 |
| 7 |
539100376 |
SPUR GEAR (35 TEETH) Price: $53.70 |
| 8 |
539102079 |
SPUR GEAR (37 TEETH) Price: $103.11 |
| 8 |
77-3810 |
DISCONTINUED Price: Call Us |
| 9 |
539977561 |
SHIFT COLLAR Price: $14.97 |
| 9 |
74-7560 |
LOCKWASHER Price: $0.67 |
| 10 |
539977562 |
SPROCKET (18 TEETH) Price: $25.44 |
| 10 |
74-7910 |
SCREW - HEX HD Price: $2.92 |
| 11 |
539977563 |
SPROCKET (9 TEETH) Price: $24.99 |
| 11 |
77-3820 |
SUPPORT - SHIELD Price: $32.22 |
| 12 |
539977564 |
COUNTERSHAFT Price: $120.63 |
| 12 |
77-3870 |
WASHER Price: $0.93 |
| 13 |
539977565 |
GEAR, BEVEL (42 TEETH) Price: $128.05 |
| 13 |
77-3860 |
LOCKNUT Price: $0.93 |
| 14 |
539102080 |
SPUR GEAR (12 TEETH) Price: $28.95 |
| 14 |
77-3580 |
SHIELD Price: $181.55 |
| 15 |
539102081 |
SPUR GEAR (15 TEETH) Price: $28.97 |
| 15 |
77-3570 |
SHIELD Price: $72.66 |
| 16 |
539100382 |
SPUR GEAR (20 TEETH) Price: $70.31 |
| 17 |
539102082 |
SPUR GEAR (23 TEETH) Price: $99.26 |
| 18 |
539977571 |
INPUT SHAFT Price: $49.99 |
| 19 |
539100372 |
INPUT BEVEL PINION Price: $56.10 |
| 20 |
539102083 |
SPUR GEAR (18 TEETH) Price: $87.24 |
| 23 |
539100374 |
THRUST BEARING Price: $11.66 |
| 27 |
539977573 |
BUSHING, FLANGED Price: $14.99 |
| 28 |
539977574 |
CHAIN, ROLLER #41 24 LINK Price: $35.98 |
| 29 |
539977575 |
THRUST WASHER Price: $2.99 |
| 30 |
539977592 |
NEEDLE BEARING Price: $69.99 |
| 31 |
539977576 |
NEEDLE BEARING Price: $74.99 |
| 32 |
539977577 |
RETAINING RING Price: $2.26 |
| 33 |
539102084 |
WASHER, THRUST Price: $2.64 |
| 34 |
539977579 |
RETAINING RING Price: $2.99 |
| 35 |
539102180 |
SHIFT ROD & FORK Price: $32.34 |
| 36 |
539977581 |
W-FLANGED HEX HD THREADFOR Price: $4.69 |
| 37 |
539977582 |
KEY Price: $24.70 |
| 40 |
539977583 |
STEEL BALL 5/16" Price: $1.91 |
| 41 |
539977584 |
SET SCREW 3/8-16 X 3/8" Price: $3.03 |
| 42 |
539977585 |
SPRING Price: $2.59 |
| 43 |
539977586 |
WASHER THRUST Price: $3.43 |
| 44 |
539977587 |
O RING Price: $4.54 |
| 45 |
539100148 |
SWITCH, TRANS Price: $34.99 |
| 46 |
539100388 |
SEAL, SQUARE CUT Price: $1.91 |
