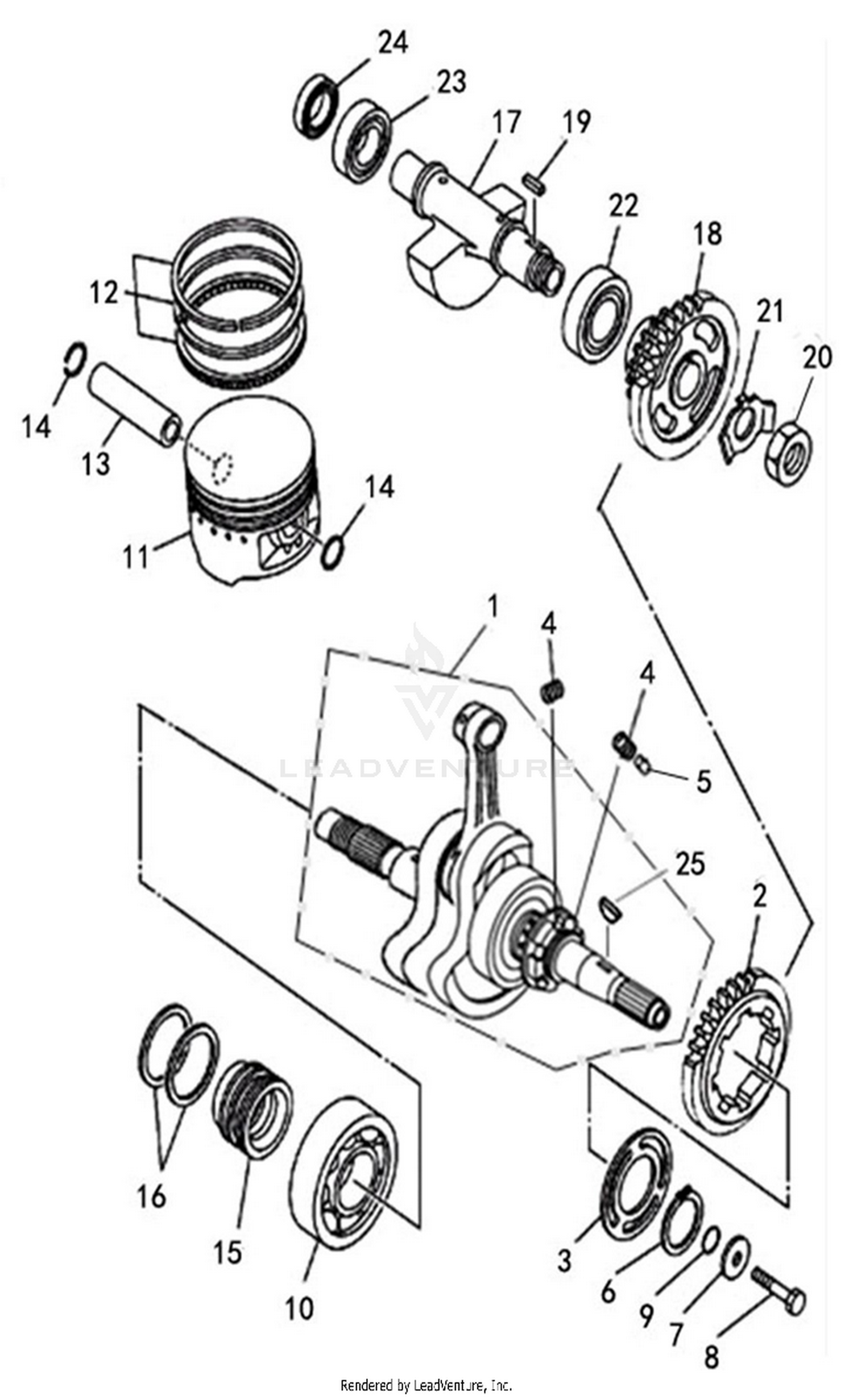

| Ref | Part Number | Description |
|---|
| 1 |
503-02890 |
CRANKSHAFT Price: $1,236.48 |
| 2 |
503-00994 |
DRIVING GEAR BALANCE SHAFT Price: $180.30 |
| 3 |
503-00995 |
OUTER BALANCE GEAR LOC PLATE Not Available Price: |
| 4 |
503-01296 |
BALANCE GEAR BUFFER SPRING Price: $3.88 |
| 5 |
503-00997 |
BALANCE GEAR SPACER PIN Price: $3.50 |
| 6 |
503-00998 |
CIRCLIP FOR SHAFT Price: $3.58 |
| 7 |
503-01297 |
WASHER 10 x 32 x 5 Price: $4.06 |
| 8 |
503-01298 |
HEX FLANGE BOLT M10 x 1.25 x 40 Price: $3.98 |
| 9 |
503-01001 |
O-RING 16X3 Price: $7.17 |
| 10 |
503-01002 |
BEARING 6307 Price: $89.38 |
| 11 |
503-01299 |
PISTON Price: $82.45 |
| 12 |
503-01300P |
PISTON RING SET Price: $42.25 |
| 13 |
503-01301 |
PISTON PIN Price: $12.92 |
| 14 |
503-01302 |
PISTON PIN CLIP Price: $3.98 |
| 15 |
503-01007 |
SEALING RING BUSHING Price: $58.47 |
| 16 |
503-01008 |
SEALING RING Price: $24.12 |
| 17 |
503-01303 |
BALANCE SHAFT ASSEMBLY Price: $88.85 |
| 18 |
503-01304 |
DRIVEN GEAR BALANCE SHAFT ASM Price: $148.64 |
| 19 |
503-01011 |
KEY B5X12 Price: $16.15 |
| 20 |
503-01012 |
HEX NUT M18X1 Price: $14.34 |
| 21 |
503-01013 |
TAB WASHER A Price: $3.58 |
| 22 |
503-01014 |
BEARING 6305 Price: $99.98 |
| 23 |
503-01015 |
BEARING 6304 Price: $48.09 |
| 24 |
503-01016 |
OIL SEAL 20X30X7 Price: $29.04 |
