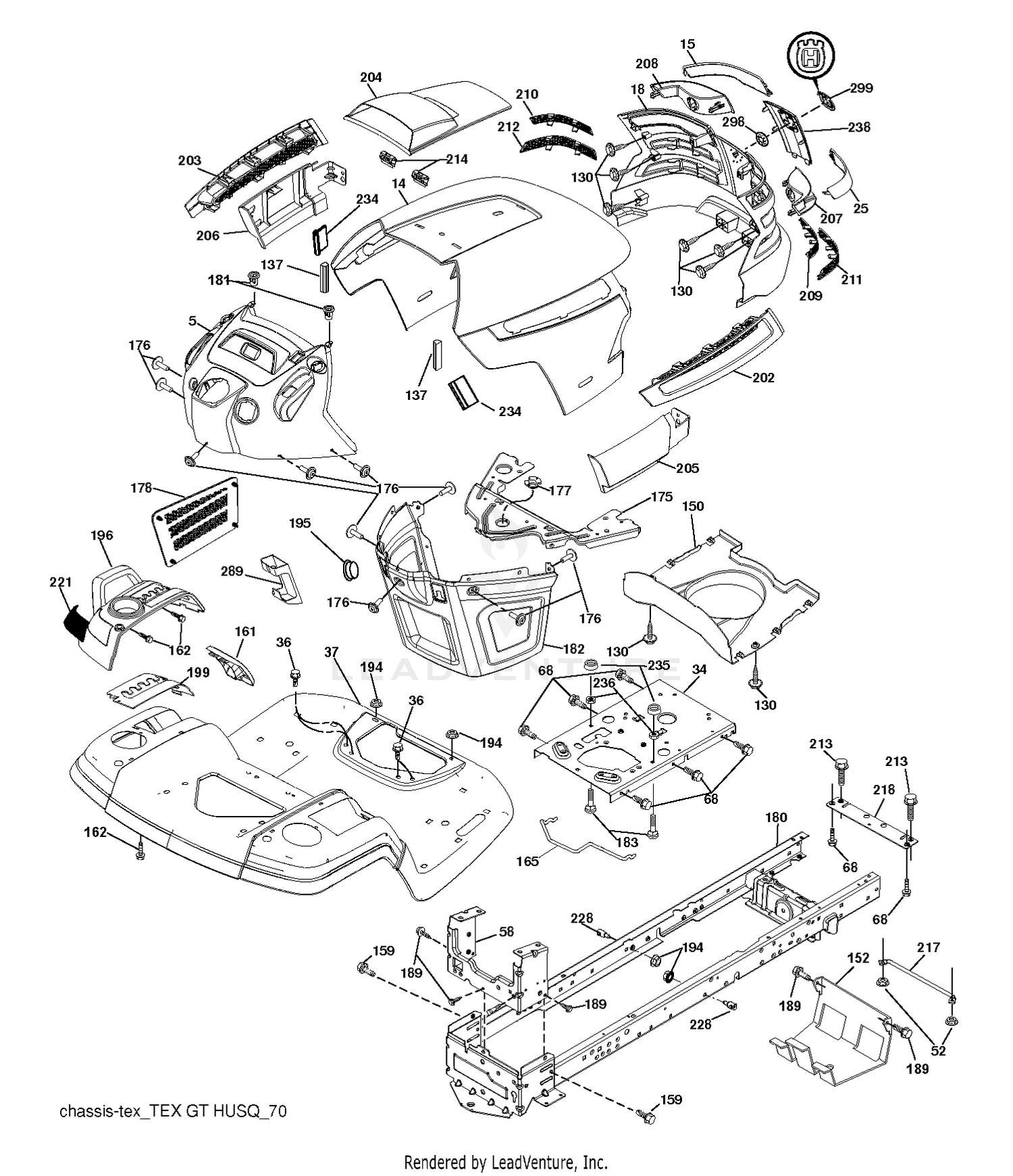

| Ref | Part Number | Description |
|---|
| 1 |
93-4422-01 |
GUARD-BELT Price: $650.61 |
| 2 |
93-4034 |
V-BELT Price: $204.67 |
| 3 |
93-4001 |
PULLEY-4 GROOVE This part replaces 93-4001-01. Price: $473.22 |
| 4 |
323-4 |
SCREW-HH Price: $1.02 |
| 5 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 6 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 7 |
3253-7 |
WASHER-LOCK Price: $0.27 |
| 8 |
325-14 |
SCREW-HH Price: $2.64 |
| 9 |
3217-7 |
NUT-HEX Price: $0.28 |
| 10 |
13-2680 |
BUSHING Price: $217.68 |
| 11 |
93-4445-01 |
ARM-TRAILING, RH Price: $634.65 |
| 12 |
93-4428 |
SPACER-PULLEY Price: $21.92 |
| 13 |
108-0893-01 |
MOUNT-GUARD, FAN Price: $48.07 |
| 14 |
3296-53 |
NUT-LOCK, NI Price: $1.47 |
| 14 |
532442396 |
HOOD.ASM.HUSQVARNA.GT.TEX.ORAN This part replaces 532411046. Price: $149.99 |
| 15 |
3296-23 |
NUT-LOCK, NI Price: $0.52 |
| 15 |
532198907 |
LENS.LH.TEX.GT.HUSQ.CL Price: $22.99 |
| 16 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 17 |
93-4433-01 |
BRACKET-PULLEY Price: $40.65 |
| 18 |
327-6 |
SCREW-HH Price: $12.99 |
| 18 |
532408607 |
GRILL.ASM.HUSQ.TG/CRD.W/TRIM Price: $129.99 |
| 21 |
56-6230 |
BEARING-ROLLER Price: $72.34 |
| 22 |
13-4960 |
SHAFT-PLATE, FINGER Price: $126.35 |
| 23 |
13-2840 |
KEY-SQUARE Price: $1.40 |
| 24 |
32152-2 |
NUT-LOCK, CONE Price: $1.79 |
| 25 |
115-9026 |
END PLATE ASM This part replaces 93-0189. Price: $75.83 |
| 25 |
532198906 |
LENS.RH.TEX.GT.HUSQ.CL Price: $32.99 |
| 26 |
144-3697-01 |
FLEX TIP REEL This part replaces 93-0197-01. Price: $1,218.97 |
| 27 |
115-9024 |
PLATE-CENTER This part replaces 93-0185. Price: $49.00 |
| 28 |
115-9028 |
END PLATE ASM This part replaces 93-0187. Price: $71.85 |
| 29 |
115-9022 |
FINGER-PLASTIC This part replaces 13-2470. Price: $1.83 |
| 30 |
13-3090 |
SPRING-FINGER Price: $9.71 |
| 31 |
115-9023 |
CLAMP-FINGER This part replaces 13-2480. Price: $5.46 |
| 32 |
32140-94 |
SCREW-HH, SEMS Price: $5.89 |
| 33 |
120-5986 |
HOOK-TRANSPORT This part replaces 93-7711. Price: $70.97 |
| 34 |
13-0560 |
SPACER Price: $5.29 |
| 34 |
580910801 |
PLATE.ENGINE.WELDED.CHASSIS This part replaces 532196125. Price: $59.99 |
| 35 |
603773 |
LOCKNUT This part replaces 32153-2. Price: $2.09 |
| 36 |
13-0360 |
SPACER Price: $13.03 |
| 36 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK This part replaces 817060512. Price: $4.99 |
| 37 |
13-3070 |
SPACER Price: $8.69 |
| 37 |
532441208 |
FENDER.PNT.TX.GT.CH/FW/DL.HUSQ This part replaces 532401825. Price: $219.99 |
| 38 |
32153-5 |
NUT-HEX Price: $1.59 |
| 39 |
13-5540-01 |
LIFTING LINK This part replaces 13-5540. Price: $40.11 |
| 40 |
328-10 |
SCREW-HH Price: $14.93 |
| 41 |
63-5300-01 |
DISCONTINUED Price: Call Us |
| 42 |
32153-6 |
NUT-LOCK Price: $3.46 |
| 43 |
325-9 |
SCREW-HH Price: $1.87 |
| 44 |
323-9 |
SCREW-HH Price: $1.29 |
| 45 |
13-0320 |
COLLAR-LOCK Price: $42.44 |
| 46 |
32121-45 |
PIN-SPRING Price: $0.27 |
| 47 |
13-0330 |
BLOCK-PIVOT Price: $112.26 |
| 48 |
13-5550-01 |
ARM-WHEEL, GAUGE Price: $504.47 |
| 49 |
13-5570 |
PIVOT Price: $47.91 |
| 50 |
117-8544 |
WHEEL-CASTER This part replaces 13-2870. Price: $120.71 |
| 51 |
13-5590 |
ROD-ADJUSTING Price: $108.27 |
| 52 |
13-5670 |
SPACER-LOCKING Price: $189.75 |
| 52 |
596040501 |
Hardware This part replaces 873680500. Price: $2.99 |
| 53 |
3217-9 |
NUT-HH Price: $0.37 |
| 54 |
93-4415-01 |
PULLEY - IDLER This part replaces 93-4415. Price: $63.14 |
| 55 |
325-5 |
SCREW-HH Price: $1.20 |
| 56 |
63-5250 |
SPACER-ARM Price: $93.57 |
| 57 |
3254-8 |
WASHER-LOCK Price: $0.37 |
| 58 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 58 |
532412281 |
DRAWBAR.UPPER.2PC,LRG.FENDER Price: $37.99 |
| 59 |
256-298 |
BUSHING Price: $22.19 |
| 60 |
93-4429 |
WASHER-PULLEY Price: $8.07 |
| 61 |
323-10 |
SCREW-HH Price: $0.89 |
| 62 |
117-8544 |
WHEEL-CASTER This part replaces 93-7715. Price: $120.71 |
| 63 |
323-5 |
SCREW-HH Price: $0.41 |
| 66 |
323-6 |
SCREW-HH Price: $0.66 |
| 68 |
596030701 |
Screws This part replaces 817490508. Price: $2.99 |
| 70 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 71 |
108-0892-01 |
ARM ASM Price: $45.62 |
| 130 |
596321701 |
Screws This part replaces 532416358. Price: $2.99 |
| 137 |
532407590 |
BUMPER DASH Price: $3.99 |
| 150 |
532198514 |
AIR.DUCT.TEXGT.HUSQ.31 Price: $24.99 |
| 152 |
531169901 |
SERVICE KIT SHIELD SHIELD.BROW This part replaces 532199535. Price: $19.99 |
| 159 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 161 |
532401801 |
FUEL WINDOW This part replaces 532401826. Price: $5.99 |
| 162 |
596134101 |
Screws This part replaces 532142432. Price: $2.99 |
| 165 |
532196826 |
SUPPORT.TANK.REAR.W/TEX Price: $22.99 |
| 175 |
590607702 |
PLATE.PNT.CROSSMEMBER.HUSQ/PRE This part replaces 532196304. Price: $32.99 |
| 176 |
532400776 |
SCREW.#10-24X5/8.RN.QU Price: $4.99 |
| 177 |
532195227 |
BUSHING, STEERING Price: $5.99 |
| 178 |
532199782 |
CARGO.ASM.NET.TXGT.W/C Price: $29.99 |
| 180 |
531437601 |
CHASSIS WELDMENT This part replaces 532415064. Price: $219.99 |
| 181 |
532403025 |
BUSHING.MNT.FEND.CRGO. Price: $4.99 |
| 182 |
532406859 |
DASH.LOWER.COMMON.12V.ADAPTOR Price: $84.99 |
| 183 |
595305701 |
Screws This part replaces 874780520. Price: $3.99 |
| 189 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 194 |
596135701 |
GSPW Nuts This part replaces 873900500. Price: $2.99 |
| 195 |
532404137 |
PLUG.HOLE.DASH.LOWER.12V.BLK Price: $4.99 |
| 196 |
532400299 |
RP CONSOLE.ASM.DECKLFT.W/ Price: $69.99 |
| 199 |
532198259 |
PLATE.DECK.LIFT.HUSQVARNA.GT Price: $17.99 |
| 202 |
532403048 |
VENT.SIDE.HOOD.HUSQ.RH.GREY Price: $7.99 |
| 203 |
532403076 |
VENT.SIDE.HOOD.HUSQ.LH.GRAY Price: $7.99 |
| 204 |
532416615 |
VENT.ASM.TORPHD.HUSQGT.LOGO.CL This part replaces 532416613. Price: $16.99 |
| 205 |
532401709 |
SKIRT.HOOD.SIDE.HUSQ.RH.GREY Price: $6.99 |
| 206 |
532401711 |
SKIRT.HOOD.SIDE.HUSQ.LH.GREY Price: $5.99 |
| 207 |
532197198 |
BEZEL.RH.TEX.GT.HUSQ Price: $19.99 |
| 208 |
532197199 |
BEZEL.LH.TEX.GT.HUSQ Price: $17.99 |
| 209 |
532199130 |
INSERT.HEX.GRILL.HUSQ.GREY Price: $4.99 |
| 210 |
532199131 |
INSERT.HEX.GRILL.HUSQ. Price: $2.99 |
| 211 |
532199132 |
INSERT.HEX.GRILL.HUSQ. Price: $2.99 |
| 212 |
532199133 |
INSERT.HEX.GRILL.HUSQ. Price: $2.99 |
| 213 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 874760512. Price: $3.99 |
| 214 |
532199145 |
CLIP.RETAINER.TINNER. Price: $2.99 |
| 217 |
532409167 |
ROD.PIVOT.HOOD Price: $9.99 |
| 218 |
532196395 |
X-PIECE.HOOD.STOP.NON/ Price: $6.99 |
| 221 |
532198909 |
REFLECTOR.LH.TEX GT HU Price: $14.99 |
| 228 |
593824001 |
STUD.W/"D"ANTI-ROTATION This part replaces 532195161. Price: $3.99 |
| 234 |
532404742 |
BUMPER.HOOD.TEX.HUSQVARNA Price: $5.99 |
| 235 |
596564201 |
Spacers This part replaces 532406129. Price: $4.99 |
| 236 |
873930500 |
NUT.CENTERLOCK.5/16- Price: $3.99 |
| 238 |
532408606 |
TRIM.HUSQ.TG/CRD.SERVICE Price: $17.99 |
| 289 |
532403571 |
PLUG.N/CRUISE.COMMON.YT/GT.BLK Price: $3.99 |
| 299 |
532430771 |
LOGO.HUSQ.GT.LT.CROWN.H This part replaces 532405012. Price: $5.99 |
