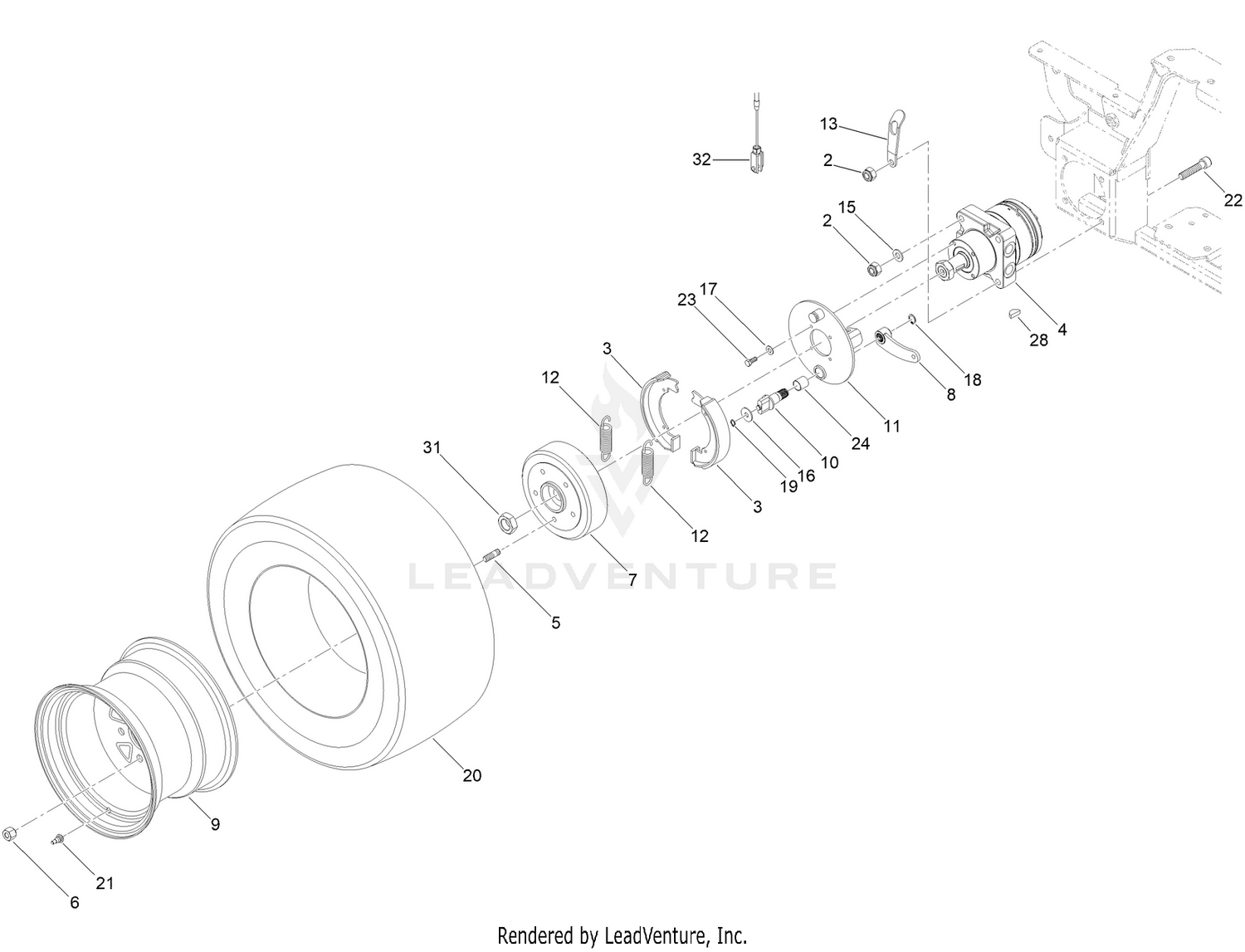

Brakes Assembly
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 134-0561 | NUT Price: $0.57 |
| 3 | 134-0624 | SHOE-BRAKE Price: $45.81 |
| 4 | 134-0666 | MOTOR-HYDRAULIC Price: $1,116.82 |
| 5 | 134-0686 | STUD Price: $10.18 |
| 6 | 134-0688 | NUT-LUG, WHEEL Price: $4.83 |
| 7 | 134-0711 | DRUM-BRAKE Price: $160.47 |
| 8 | 134-0714 | LEVER-BRAKE Price: $21.72 |
| 9 | 134-0715 | RIM-FRONT WHEEL Price: $210.18 |
| 10 | 134-0717 | CAMSHAFT Price: $34.99 |
| 11 | 134-0718 | PLATE-BRAKE Price: $48.62 |
| 12 | 134-0722 | SPRING Price: $7.38 |
| 13 | 134-0726 | BRACKET-CABLE, BRAKE Price: $13.22 |
| 15 | 134-1047 | WASHER Price: $0.25 |
| 16 | 134-1048 | WASHER Price: $0.36 |
| 17 | 134-1054 | WASHER Price: $0.32 |
| 18 | 134-1062 | RING-RETAINING, INT Price: $0.22 |
| 19 | 134-1063 | RING-RETAINING, INT Price: $0.31 |
| 20 | 134-1229 | TIRE-FRONT Price: $189.46 |
| 21 | 134-1261 | VALVE-TIRE Price: $2.22 |
| 22 | 134-1298 | SCREW Price: $2.22 |
| 23 | 134-1299 | SCREW Price: $1.06 |
| 24 | 134-1320 | BUSHING Price: $6.31 |
| 28 | 134-2970 | FEATHER KEY Price: $4.50 |
| 31 | 134-2967 | NUT Price: $37.89 |
