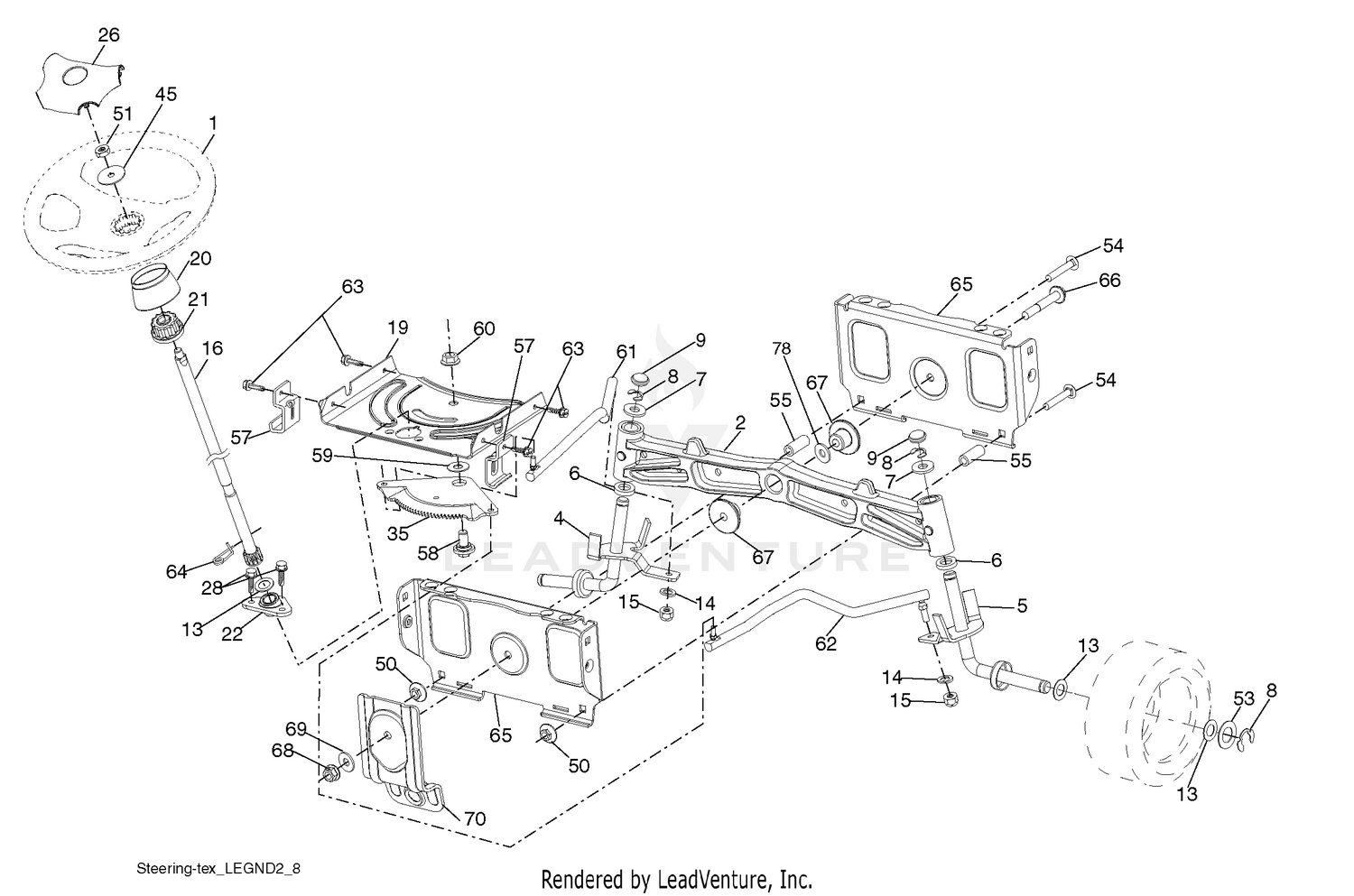

| Ref | Part Number | Description |
|---|
| 1 |
186093X428 |
Wheel, Steering Price: Call Us |
| 1 |
76-9370-03 |
ROPS-2 POST Price: $2,558.35 |
| 2 |
184706 |
Axle Asm., Front Price: Call Us |
| 2 |
325-33 |
SCREW-HH Price: $11.49 |
| 3 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 4 |
325-2 |
SCREW-HH Price: $1.02 |
| 4 |
403087 |
Spindle Asm., LH Price: Call Us |
| 5 |
3253-7 |
WASHER-LOCK Price: $0.27 |
| 5 |
403088 |
Spindle Asm., RH Price: Call Us |
| 6 |
6266H |
Bearing, Race Thrust Harden Price: Call Us |
| 6 |
82-5370 |
FOAM-ROPS Price: $13.65 |
| 7 |
121748X |
Washer 25/32 x 1-5/8 x 16 Ga. Price: Call Us |
| 7 |
3296-25 |
NUT-LOCK, NI Price: $1.34 |
| 8 |
12000029 |
Ring, Clip #T5304-75 Price: Call Us |
| 8 |
3212-5 |
SCREW-HH Price: $2.46 |
| 9 |
121232X |
Cap, Spindle Price: Call Us |
| 9 |
3253-6 |
WASHER-LOCK Price: $0.39 |
| 10 |
3256-5 |
WASHER-FLAT Price: $0.27 |
| 11 |
3256-28 |
WASHER-FLAT Price: $0.48 |
| 12 |
112-0169 |
SEATBELT ASM-SERVICE This part replaces 21-4191. Price: $283.31 |
| 13 |
110-9730 |
SEAT SUSPENSION ASM This part replaces 76-1970. Price: $776.63 |
| 13 |
121749X |
Washer 25/32 x 1-1/4 x 16 Ga. Price: Call Us |
| 14 |
10040600 |
Washer, Lock Hvy. Hlcl. Spr. 3/8 Price: Call Us |
| 14 |
3256-2 |
WASHER-FLAT Price: $0.39 |
| 15 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 15 |
73540600 |
Nut, Crown Lock 3/8-24 unf Price: Call Us |
| 16 |
322-3 |
SCREW-HH Price: $0.79 |
| 16 |
408219 |
Shaft Steering Price: Call Us |
| 17 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 18 |
104-4620 |
SEAT Price: $273.15 |
| 19 |
194729 |
Plate Steering Price: Call Us |
| 19 |
92-7307 |
LH ARMREST ASM Price: $200.08 |
| 20 |
199743X428 |
Boot, Steering Price: Call Us |
| 20 |
92-7306 |
RH ARMREST ASM Price: $198.41 |
| 21 |
186737 |
Adapter, Wheel Steering Price: Call Us |
| 21 |
3234-14 |
SCREW-HHF Price: $0.61 |
| 22 |
194845 |
Bushing, Strg. Blk Price: Call Us |
| 22 |
66-9290 |
SPACER-SUSPENSION Price: $3.60 |
| 23 |
3218-2 |
NUT-JAM Price: $0.25 |
| 26 |
186095X428 |
Insert, Wheel Steering Price: Call Us |
| 28 |
17000612 |
Screw 3/8-16 x 3/4 Price: Call Us |
| 30 |
92-6282 |
SWITCH-SEAT Price: $31.99 |
| 35 |
194732 |
Gear, Sector Plate Price: Call Us |
| 45 |
19183812 |
Washer 9/16 ID x 2-3/8 x 12 Ga. Price: Call Us |
| 50 |
73900600 |
Nut Lock 3/8-16 unc Price: Call Us |
| 51 |
73940800 |
Nut Hex Jam Toplock 1/2-20 unf Price: Call Us |
| 53 |
188967 |
Washer Hardened .793 x 1.637 x .060 Price: Call Us |
| 54 |
74760636 |
Bolt Hex 3/8-16 unc x 2-1/4 Price: Call Us |
| 55 |
414736 |
Spacer Brace Axle Price: Call Us |
| 57 |
407465 |
Bracket Upstop Price: Call Us |
| 58 |
194747 |
Bolt Shoulder Sector Pivot CFM Price: Call Us |
| 59 |
194748 |
Washer Thrust Sector Steering Price: Call Us |
| 60 |
73971000 |
Nut Flange Lock 5/8-11 Price: Call Us |
| 61 |
194740 |
Draglink, LH Price: Call Us |
| 62 |
194741 |
Draglink, RH Price: Call Us |
| 63 |
17000512 |
Screw 5/16-18 x 3/4 Price: Call Us |
| 64 |
199849 |
Retainer Clip Spring Steering Price: Call Us |
| 65 |
194734 |
Brace Axle Front Price: Call Us |
| 66 |
71020748 |
Bolt Hex Fghd 7/16-14 x 3 Serr Price: Call Us |
| 67 |
194737 |
Bushing PM Front Axle Price: Call Us |
| 68 |
73900700 |
Nut Lock Flange 7/16-14 Gr. 5 Price: Call Us |
| 69 |
199162 |
Washer 1.5 x .505 x .118 Price: Call Us |
| 70 |
196197 |
Bracket Deck Susp. Front Price: Call Us |
