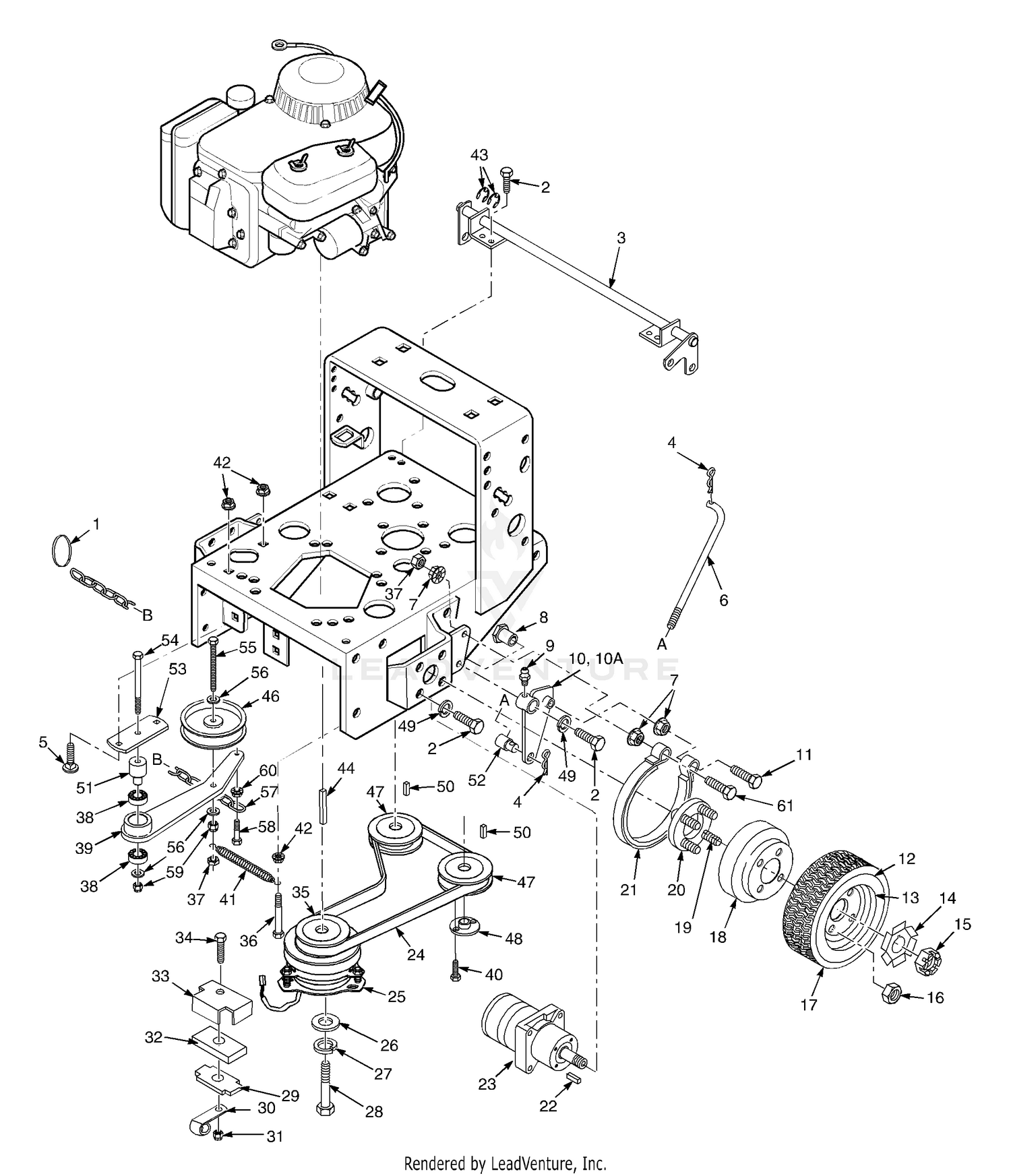

| Ref | Part Number | Description |
|---|
| 1 |
3-4371 |
CASE ASM Price: $1,438.03 |
| 1 |
481876 |
Ring, Split Price: Call Us |
| 2 |
04001-19 |
Bolt, 3/8-16 x 1" Hex Head Price: Call Us |
| 2 |
3-0596 |
HOUSING-AXLE Price: $308.03 |
| 3 |
237-33 |
O-RING Price: $11.26 |
| 3 |
45842 |
Brake Shaft Assembly Weldment Price: Call Us |
| 4 |
04062-01 |
Hair Pin Cotter, .094 x 1.62 Price: Call Us |
| 4 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 5 |
04003-12 |
Carrage Bolt, 5/16-18 x .75" Price: Call Us |
| 5 |
322-4 |
SCREW-HH Price: $0.35 |
| 6 |
251-138 |
BEARING-BALL Price: $65.70 |
| 6 |
44126 |
Rod, Brake Lower Price: Call Us |
| 7 |
04019-04 |
Nut, 3/8-16 Serr. Flange Price: Call Us |
| 7 |
251-137 |
BEARING-BALL Price: $74.53 |
| 8 |
32120-62 |
RING-RETAINING Price: $4.29 |
| 8 |
43415 |
Bushing, Brake Price: Call Us |
| 9 |
253-82 |
SEAL-OIL Price: $28.34 |
| 9 |
48114-05 |
Grease Fitting Price: Call Us |
| 10 |
105-5381 |
AXLE This part replaces 3-8392. Price: $249.43 |
| 10 |
45860 |
Brake Actuator Wlmt., LH Price: Call Us |
| 10A |
45861 |
Brake Actuator Wlmt., RH Price: Call Us |
| 11 |
04001-46 |
Bolt, 3/8-16 x 2-1/4" Price: Call Us |
| 11 |
3257-23 |
KEY-WOODRUFF Price: $6.79 |
| 12 |
3-0492 |
ROLLER ASM Price: $521.02 |
| 12 |
481871 |
Tire, 18 x 6.50, 4 ply Price: Call Us |
| 13 |
253-88 |
SEAL-OIL Price: $24.29 |
| 13 |
481890 |
Rim Assy Price: Call Us |
| 14 |
32108-51 |
DISCONTINUED Price: Call Us |
| 14 |
422214 |
Lock Washer, Wheel Motor Price: Call Us |
| 15 |
3296-19 |
NUT-HEX Price: $0.65 |
| 15 |
48679 |
Hex Castle Nut, 3/4-28 UNEF Price: Call Us |
| 16 |
04028-02 |
Nut, Lug Price: Call Us |
| 16 |
3-8347 |
CAP-HUB Price: $67.73 |
| 17 |
3-0454 |
GEAR-RING Price: $291.29 |
| 18 |
3-0450 |
CASE-DIFFERENTIAL Price: $131.21 |
| 18 |
422215 |
Brake Drum Price: Call Us |
| 19 |
3-0452 |
SHAFT-GEAR, DIFFERENTIAL Price: $9.70 |
| 20 |
3-0453 |
SPACER-GEAR, DIFFERENTIAL Price: $11.54 |
| 20 |
46928 |
Hub, Wheel Price: Call Us |
| 21 |
105-5380 |
GEAR-DIFFERENTIAL This part replaces 3-3858. Price: $38.93 |
| 21 |
481470 |
Brake Band, 7.5" Price: Call Us |
| 22 |
04063-07 |
Key, 3/16 X .75 Woodruff Price: Call Us |
| 22 |
3296-27 |
NUT-LOCK, NI Price: $0.27 |
| 23 |
3273-23 |
SCREW-HH Price: $8.35 |
| 23 |
481416 |
Wheel Motor Price: Call Us |
| 24 |
3-0455 |
SHAFT-IDLER Price: $54.87 |
| 24 |
481837 |
Belt, Pump Drive Price: Call Us |
| 25 |
237-22 |
O-RING Price: $2.43 |
| 25 |
461397 |
Electric Clutch Price: Call Us |
| 26 |
04041-28 |
Flat Washer .469 x 1.75 x .25 Price: Call Us |
| 26 |
3-0457 |
GEAR-INTERMEDIATE Price: $344.97 |
| 27 |
04030-05 |
Lockwasher, 7/16” Spring Price: Call Us |
| 27 |
3-0456 |
GEAR-IDLER Price: $72.91 |
| 28 |
04102-05 |
Bolt, Hex Head 7/16-20 x 2-3/4” w/Patch, (Kawasaki FX & FT, Yamaha MX) Price: Call Us |
| 28 |
252-49 |
BEARING-NEEDLE Price: $35.05 |
| 29 |
32120-63 |
RING-RETAINING Price: $0.26 |
| 29 |
422534 |
Plate, Backing Price: Call Us |
| 30 |
2412-39 |
CLAMP-R This part replaces 3-0460. Price: $1.70 |
| 30 |
48030-09 |
Clamp Price: Call Us |
| 31 |
04021-10 |
Nut, 5/16-18 Elastic Stop Price: Call Us |
| 31 |
255-5 |
BALL-STEEL Price: $1.86 |
| 32 |
321-3 |
SCREW-HH Price: $0.28 |
| 32 |
481716 |
Rubber Pad, Clutch Stop Price: Call Us |
| 33 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 33 |
422533 |
Retainer, Clutch Stop Price: Call Us |
| 34 |
04001-12 |
Hex Head Bolt, 5/16-18 x 1.75" Price: Call Us |
| 34 |
88-8810-01 |
COVER-CLUTCH This part replaces 5-1388. Price: $18.44 |
| 35 |
3-0475 |
CLUTCH PIN Price: $20.13 |
| 35 |
482754 |
Pulley, Pump Drive Engine Price: Call Us |
| 36 |
04001-13 |
Hex Head Bolt, 5/16-18 x 2.75" Price: Call Us |
| 36 |
3-0465 |
DISCONTINUED Price: Call Us |
| 37 |
04021-05 |
Nut, 3/8-16 Center Lock Price: Call Us |
| 38 |
48224 |
Ball Bearings Price: Call Us |
| 38 |
88-8700 |
GEAR-PINION This part replaces 3-0461. Price: $56.31 |
| 39 |
32120-64 |
RING-SNAP, EXTERNAL Price: $0.25 |
| 40 |
04001-172 |
Bolt, Hex Head 1/4-20 x 1" Grd 8 Price: Call Us |
| 40 |
3-0458 |
DISCONTINUED Price: Call Us |
| 41 |
251-139 |
BEARING-BALL Price: $104.98 |
| 41 |
483526 |
Spring, Pump Belt Idler This part replaces 481835. Price: Call Us |
| 42 |
04019-03 |
Nut, 5/16-18 Serr. Flange Price: Call Us |
| 42 |
3-1545 |
SPACER-CLUTCH Price: $53.38 |
| 43 |
04050-02 |
Retaining Ring, 3/4" Ext. "E" Price: Call Us |
| 43 |
5-1423 |
HOUSING-CLUTCH Price: $170.16 |
| 44 |
04063-29 |
Key, 1/4x1/4 x 3.75" Price: Call Us |
| 44 |
3-0467 |
DISCONTINUED Price: Call Us |
| 45 |
04041-07 |
Flat Washer, 3/8 Price: Call Us |
| 45 |
3-0470 |
DISCONTINUED Price: Call Us |
| 46 |
255-8 |
BALL-STEEL Price: $4.60 |
| 46 |
483213 |
Pulley, Idler 4.5" Price: Call Us |
| 47 |
3-0471 |
PLATE-BACKING, CLUTCH Price: $45.90 |
| 47 |
482649 |
Pulley, Pump Shaft Price: Call Us |
| 48 |
3-4066 |
BUSHING Price: $2.78 |
| 48 |
482085 |
Tapered Hub Price: Call Us |
| 49 |
04030-04 |
Lockwasher, 3/8” Spring, Kawasaki FX / FT & FT-EFI / B&S 32BV Price: Call Us |
| 49 |
251-140 |
BEARING-BALL Price: $121.27 |
| 50 |
04063-14 |
Key, 5.0 x 5.0 x 25mm Price: Call Us |
| 50 |
3290-264 |
WASHER-WAVE Price: $2.46 |
| 51 |
3-0481 |
WASHER-CLUTCH Price: $5.02 |
| 51 |
43504 |
Pivot, Idler (Long) Price: Call Us |
| 52 |
32120-65 |
RING-SNAP Price: $1.97 |
| 52 |
43032 |
Swivel Joint Price: Call Us |
| 53 |
105-5368 |
PULLEY ASM This part replaces 3-0480. Price: $240.44 |
| 53 |
422713 |
Base, Idler Pivot Price: Call Us |
| 54 |
04001-54 |
Bolt, Hex Head 3/8-16 x 3" Price: Call Us |
| 54 |
99-5902 |
DISC-CLUTCH This part replaces 3-0514. Price: $17.07 |
| 55 |
04001-161 |
Bolt, Hex Head 3/8-16 x 2.75" Price: Call Us |
| 55 |
3-0477 |
PLATE-CLUTCH Price: $29.40 |
| 56 |
04043-04 |
Flatwasher 3/8" Price: Call Us |
| 56 |
3-0478 |
SPRING-CLUTCH Price: $37.47 |
| 57 |
3-6801 |
KEY Price: $8.50 |
| 57 |
481873 |
Chain Price: Call Us |
| 58 |
04001-59 |
Bolt, Hex Head 1/4-20 x 1.25" Price: Call Us |
| 58 |
3296-6 |
NUT-LOCK Price: $1.49 |
| 59 |
04021-09 |
Nut, Hex Elastic Stop 3/8-16 Price: Call Us |
| 59 |
3290-211 |
WASHER-SPRING Price: $4.89 |
| 60 |
04019-02 |
Nut, Serrated Flange 1/4-20 Price: Call Us |
| 60 |
3-0472 |
DRIVER-CLUTCH Price: $37.24 |
| 61 |
3-0592 |
CLUTCH-REEL, MALE Price: $41.36 |
| 62 |
32121-4 |
PIN-ROLL, SLOTTED Price: $3.49 |
| 63 |
251-163 |
BEARING-BALL Price: $149.58 |
| 64 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 65 |
2-4779 |
UNIVERSAL DRIVER AND PIN ASM Price: $140.36 |
| 66 |
32121-25 |
PIN-ROLL Price: $0.61 |
| 67 |
3254-2 |
WASHER-LOCK, INTERNAL Price: $0.27 |
| 68 |
322-8 |
SCREW-HH Price: $1.26 |
| 69 |
95-1810 |
PIVOT-YOKE This part replaces 3-2154. Price: $136.98 |
| 70 |
3-0485 |
GASKET-TRANSMISSION Price: $16.87 |
| 71 |
98-3412 |
COVER ASM This part replaces 3-1775. Price: $635.34 |
| 72 |
3-0488 |
FORK-SHIFT Price: $11.69 |
| 73 |
32153-3 |
NUT-HEX, SIDE DEFORM This part replaces 32146-5. Price: $5.59 |
| 74 |
3-0486 |
ROD-CLUTCH, REEL Price: $41.32 |
| 75 |
281-3 |
PLUG-PIPE, SQH Price: $3.92 |
| 76 |
3-0487 |
DISCONTINUED Price: Call Us |
| 77 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 78 |
3258-19 |
SCREW Price: $0.42 |
| 79 |
3-0631 |
BALL-GRIP Price: $10.76 |
| 80 |
32140-90 |
Screw Price: Call Us |
| 81 |
3253-17 |
WASHER-LOCK Price: $0.25 |
| 82 |
281-1 |
PLUG-PIPE, SQH Price: $4.56 |
| 83 |
237-38 |
O-RING Price: $1.94 |
| 84 |
95-1807 |
COVER-BEARING This part replaces 3-2068. Price: $35.00 |
| 85 |
256-112 |
BUSHING Price: $1.29 |
| 86 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 87 |
3296-28 |
NUT-LOCK, NI Price: $0.61 |
| 88 |
3-1830 |
SPRING-FLAT Price: $108.43 |
| 89 |
3256-2 |
WASHER-FLAT Price: $0.39 |
| 90 |
321-11 |
SCREW-HH Price: $0.36 |
| 91 |
3-2072 |
SEAL-BEARING Price: $6.74 |
| 92 |
3-1716 |
PAN-DRIP, OIL Price: $20.53 |
| 93 |
3295-2 |
RIVET-TUBULAR Price: $0.68 |
| 94 |
3-1776 |
BUSHING Price: $15.88 |
| 95 |
3-2552 |
Main Leaf Price: Call Us |
| 96 |
3-2078 |
Center Leaf Price: Call Us |
| 97 |
3-2075 |
LEAF-LOWER Price: $66.27 |
| 98 |
3-2074 |
SPACER Price: $9.42 |
| 99 |
3-2077 |
Spring Bracket Price: Call Us |
| 100 |
3290-212 |
WASHER-SPRING This part replaces 3-2554. Price: $1.56 |
| 101 |
3-4494 |
WASHER-THRUST Price: $23.81 |
| 102 |
253-59 |
SEAL-OIL Price: $21.77 |
