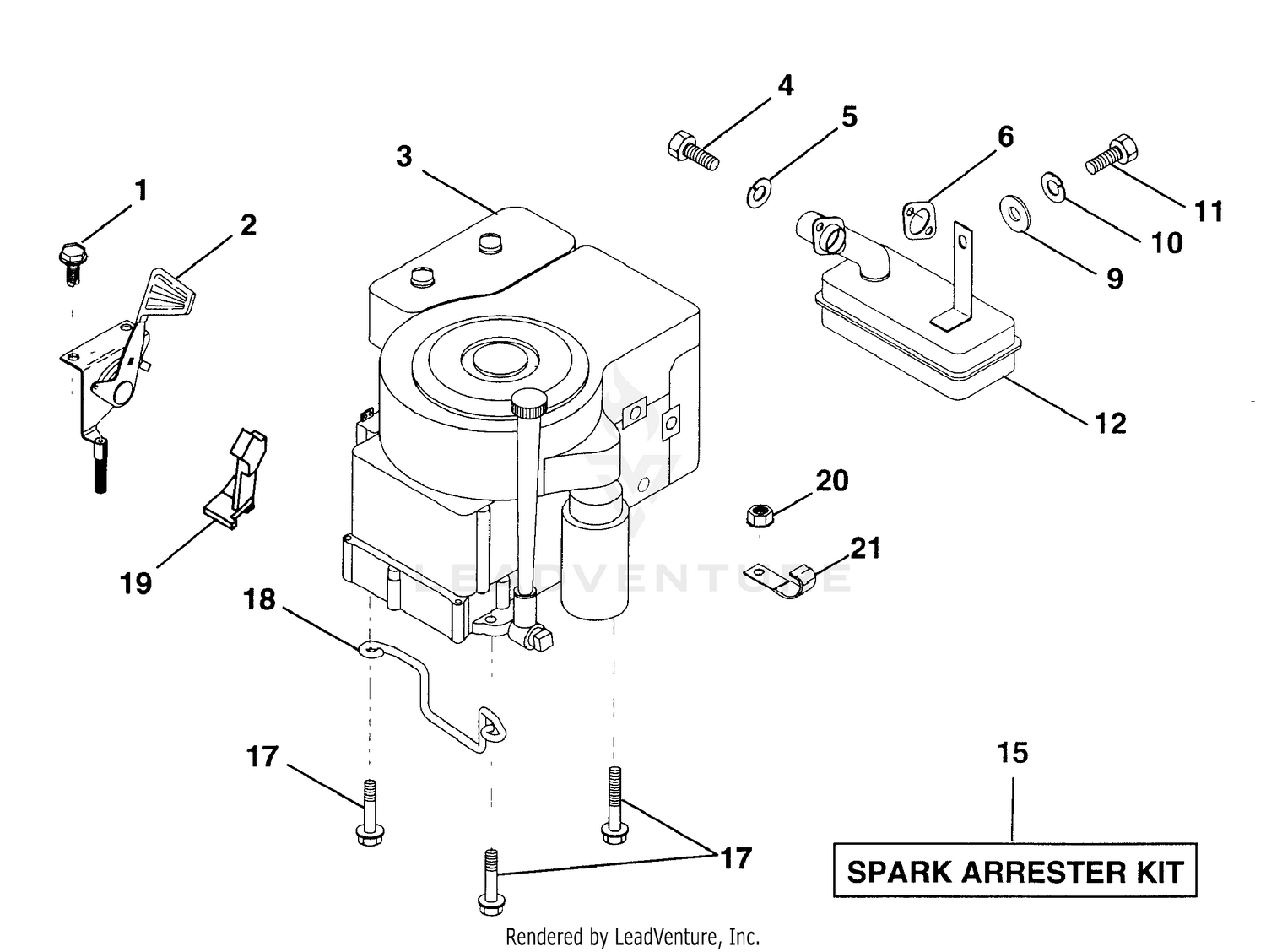

| Ref | Part Number | Description |
|---|
| 1 |
817060408 |
SCREW Price: $4.99 |
| 2 |
532133025 |
CONTROL.TH/CH.RH.BLK.FLG.EEC Price: $24.99 |
| 3 |
532131951 |
Engine, Briggs and Stratton Model No. 282707 Price: Call Us |
| 4 |
596134201 |
Screws This part replaces 871070512. Price: $2.99 |
| 5 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040500. Price: $2.99 |
| 6 |
532272293 |
GASKET.ENG.1.313 ID.TIN PLATED This part replaces 532125593. Price: $8.99 |
| 9 |
734115441 |
WASHER - 26X6.5X1.6 This part replaces 819101216. Price: $0.99 |
| 10 |
596029801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040400. Price: $2.99 |
| 12 |
532137437 |
MUFFLER.SINGLE.B&S.12HP Price: $199.99 |
| 17 |
874930624 |
Bolt, Hex Head 3/8-16 UNC x 1-1/2 This part replaces 817490624. Price: $6.99 |
| 18 |
532126636 |
KEEPER,DR BELT GR Price: $6.99 |
| 19 |
532127951 |
STOP THROTTLE Price: $2.52 |
| 20 |
873510600 |
NUT Price: $4.99 |
