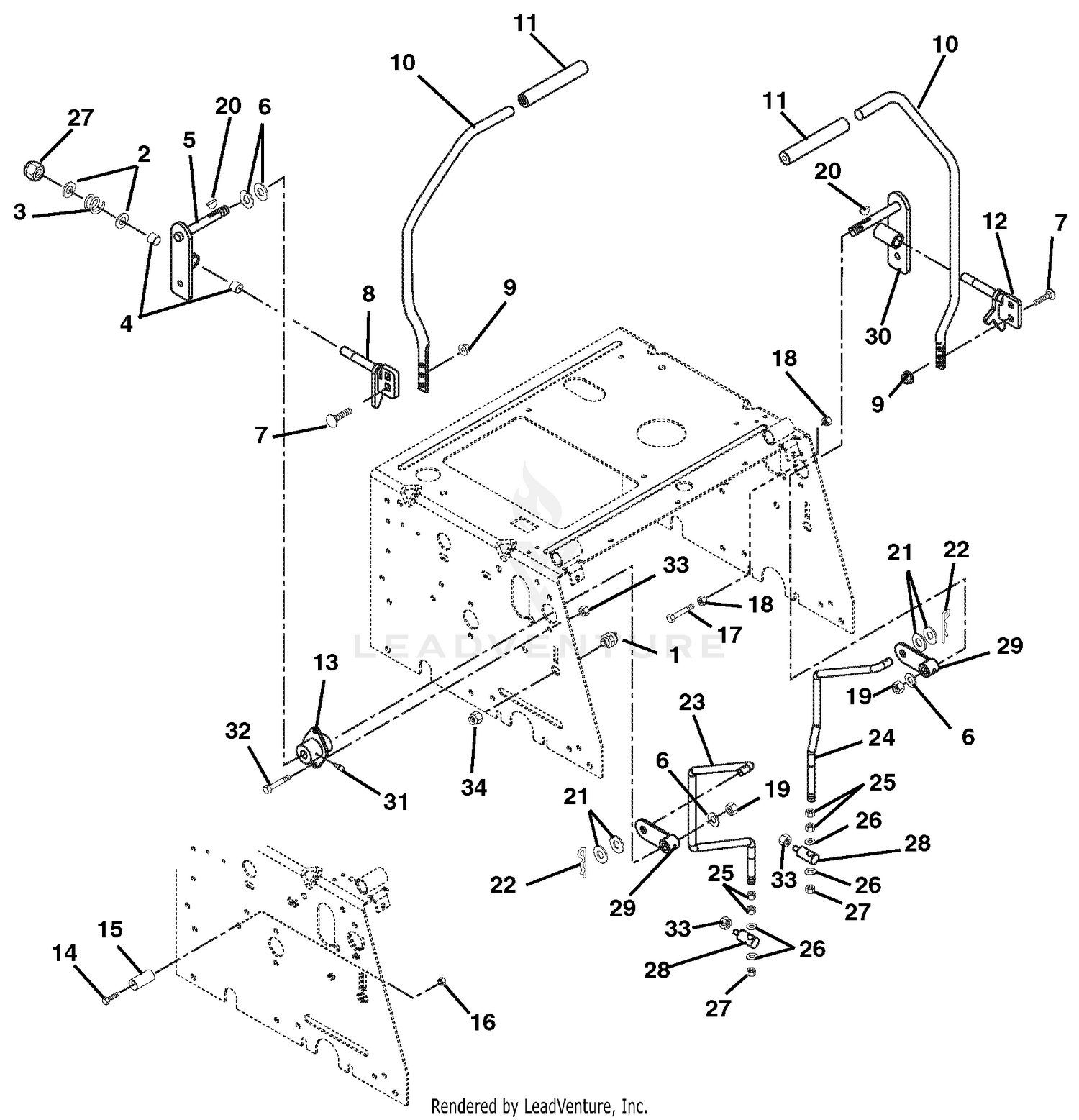

| Ref | Part Number | Description |
|---|
| 1 |
02913100 |
SWITCH-NEUTRAL START N.O. Price: $40.95 |
| 2 |
00515700 |
WASHER, PLASTIC .12X.53.1.12 Price: $1.25 |
| 3 |
00516200 |
SPRING, COMPRESSION Price: $4.95 |
| 4 |
00510500 |
BUSHING, NYLON .5 X .62 X .5LG Price: $7.95 |
| 5 |
01568100 |
CONTROL WELDMENT RH YWZC Price: $139.95 |
| 6 |
06401012 |
WSHR,FLT .563X1.375X.109 ZCC This part replaces 06442000. Price: $2.45 |
| 7 |
06209500 |
BLT-RDHDSQNK.31-18X.88 GR5YWZC Price: $2.45 |
| 8 |
01572100 |
RH LEVER, WLDM'T Price: $82.95 |
| 9 |
06500904 |
NUT-LK-TOP-FLG .312-18 GF ZCC This part replaces 06543100. Price: $0.95 |
| 10 |
01569900 |
HANDLEBAR Price: $99.95 |
| 11 |
01570000 |
GRIP - HANDLEBAR Price: $15.45 |
| 12 |
01572200 |
LH LEVER, WLDM'T Price: $65.85 |
| 13 |
01522000 |
BUSHING, FLANGED Price: $30.95 |
| 14 |
05901933 |
BLT, HEX .31-18X3.00 G5 ZCC This part replaces 05962500. Price: $3.45 |
| 15 |
01556900 |
ECCENTRIC Price: $21.95 |
| 16 |
06500820 |
NUT-NYL .31-18 G5 ZCC This part replaces 06530200. Price: $0.95 |
| 17 |
05901640 |
BLT,HEX .38-16X2.25 G5 ZCC This part replaces 05962900. Price: $3.95 |
| 18 |
06500735 |
NUT- SPNLK-FLG .38-16 G5 ZCC This part replaces 06534900. Price: $1.45 |
| 19 |
06544000 |
NUT-LK-JAM-NYL .50-20 GR2 YWZC Price: $2.95 |
| 20 |
06608600 |
KEY-WDRF .125X.75 Price: $2.45 |
| 21 |
415543 |
WSHR-FL-STL.50X1.25X.083 YWZC Price: Call Us |
| 22 |
06700222 |
PIN, HAIR #213 .08X1.19 ZCC This part replaces 06713500. Price: $0.45 |
| 23 |
01568700 |
ROD - TRANSAXLE RH YWZC Price: $17.95 |
| 24 |
01568800 |
ROD - TRANSAXLE LH YWZC Price: $59.95 |
| 25 |
06500911 |
NUT-JAM .500-13 G2 ZCC This part replaces 06529300. Price: $1.45 |
| 26 |
06401126 |
WSHR, FLT .505X.880X.072 ZCC This part replaces 06436600. Price: $3.45 |
| 27 |
06535100 |
NUT-LK ESNA THIN .50-13 YWZC Price: $2.45 |
| 28 |
01568600 |
ROD PIVOT YWZC Price: $40.95 |
| 29 |
01568300 |
PUMP WELDMENT Price: $59.95 |
| 30 |
01568200 |
CONTROL WELDMENT LH YWZC Price: $139.95 |
| 31 |
07012600 |
FTG-LUBE .25-28X.256 YWZC This part replaces 411027. Price: $3.45 |
| 32 |
07049600 |
BLT-SERHFWH .312-18X.75 YWZC Price: $2.45 |
| 33 |
06500904 |
NUT-LK-TOP-FLG .312-18 GF ZCC This part replaces 06543100. Price: $0.95 |
