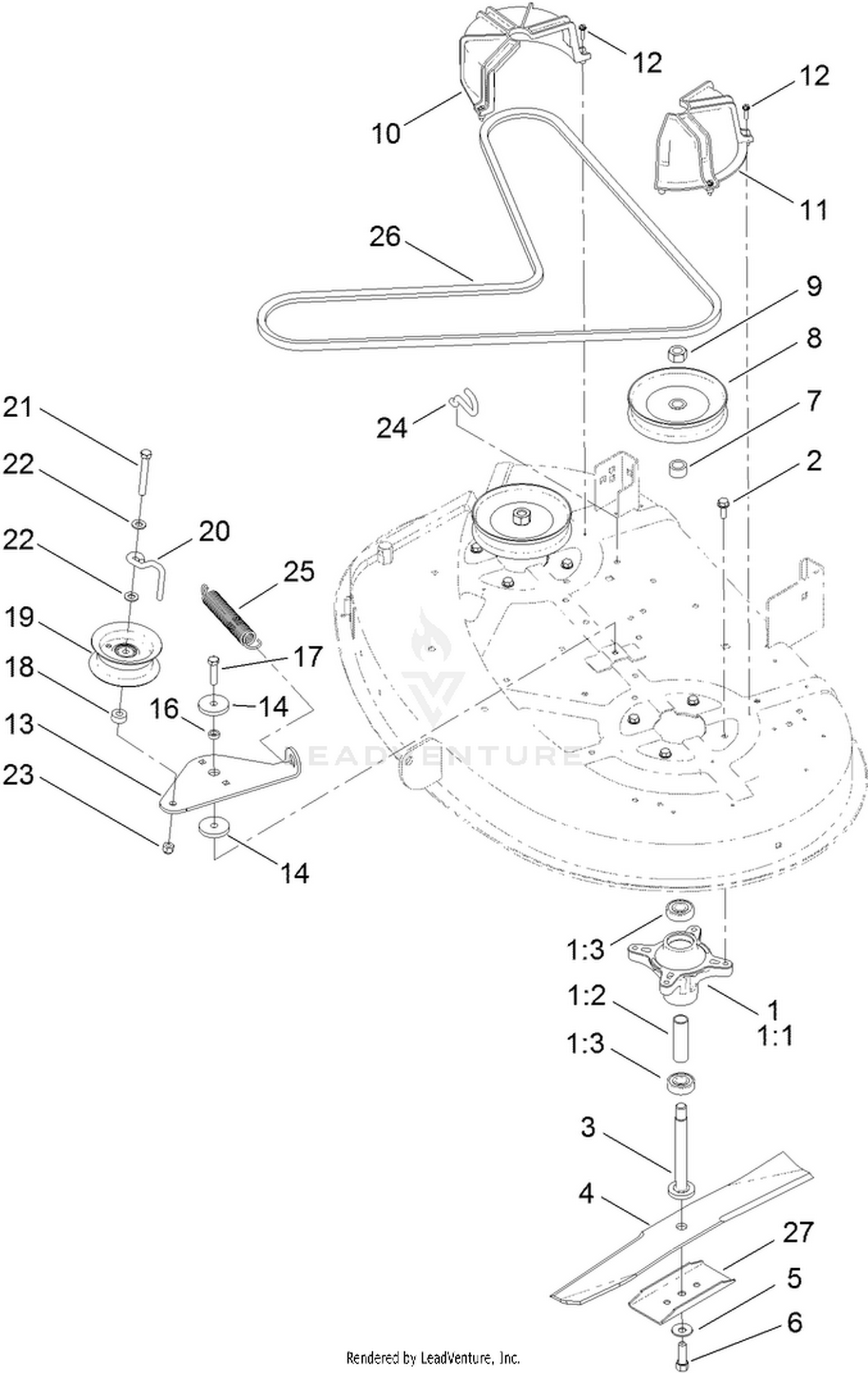

| Ref | Part Number | Description |
|---|
| 1 |
121-0751 |
SPINDLE ASM This part replaces 117-7439. Price: $51.71 |
| 2 |
32144-41 |
SCREW-TAPTITE Price: $4.79 |
| 3 |
119-8229 |
SHAFT-SPINDLE Price: $18.39 |
| 4 |
14-7799 |
BLADE KIT This part replaces 79-3061. Price: $54.71 |
| 5 |
3290-465 |
WASHER-BELLEVILLE Price: $2.89 |
| 6 |
26-0671 |
SCREW-HH Price: $7.99 |
| 7 |
120-1113 |
SPACER-PULLEY Price: $5.49 |
| 8 |
88-5330 |
PULLEY Price: $71.58 |
| 9 |
3219-6 |
NUT-HEX Price: $2.78 |
| 10 |
120-1106 |
GUIDE-BELT, RH Price: $6.37 |
| 11 |
120-1107 |
GUIDE-BELT, LH Price: $6.37 |
| 12 |
32144-53 |
SCREW-SHWH, THREAD FORMING Price: $3.19 |
| 13 |
120-1108 |
ARM-IDLER Price: $15.18 |
| 14 |
110-9981 |
WASHER-PLAIN Price: $13.99 |
| 16 |
120-1112 |
SPACER Price: $5.69 |
| 17 |
323-8 |
SCREW-HH Price: $1.20 |
| 18 |
104-8426 |
SPACER Price: $7.99 |
| 19 |
132-4717 |
PULLEY-IDLER,FLAT This part replaces 88-5630. Price: $15.47 |
| 20 |
138-7270 |
GUIDE-BELT, IDLER This part replaces 107-7307. Price: $1.69 |
| 21 |
119-4162 |
SCREW-CARR This part replaces 323-13. Price: $1.73 |
| 22 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 23 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 24 |
138-7267 |
HOOK-SPRING, RETURN This part replaces 88-5970. Price: $1.12 |
| 25 |
106-2177 |
SPRING-EXTENSION Price: $9.92 |
| 26 |
121-3996 |
BELT-V This part replaces 120-1116. Price: $63.28 |
