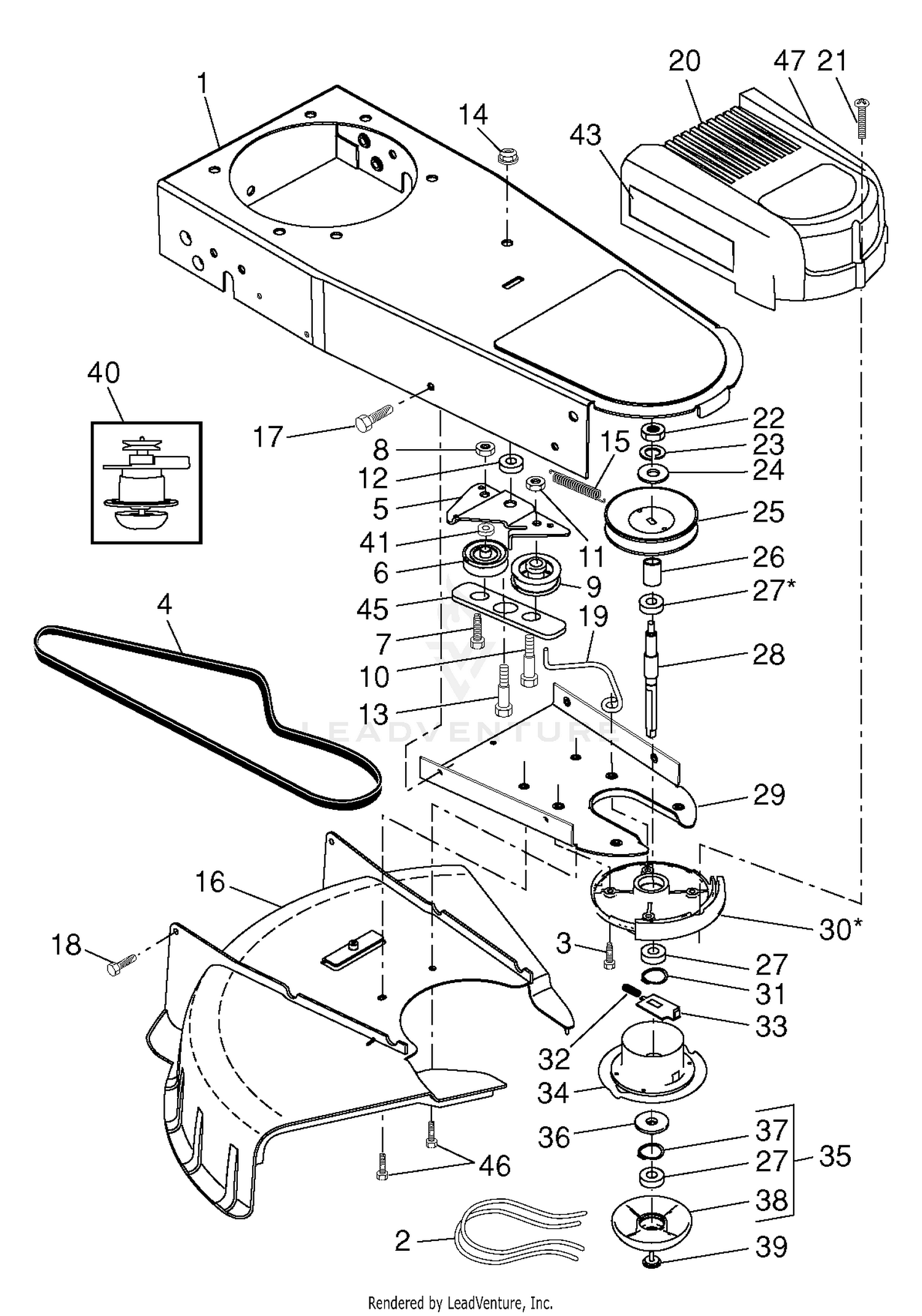

| Ref | Part Number | Description |
|---|
| 1 |
581708384 |
KIT.CHASSIS.ASM.668 This part replaces 532428913. Price: $54.99 |
| 1 |
92-9285 |
HOSE-FUEL Price: $19.25 |
| 2 |
108-3282 |
HOSE-FUEL This part replaces 92-9284. Price: $36.93 |
| 2 |
532182219 |
LINE.BUND.18PC Price: $14.99 |
| 3 |
2412-108 |
CLAMP-WORM Price: $1.29 |
| 3 |
532173715 |
BOLT.HEX.HDWSH.5/16-18X1.00 Price: $3.99 |
| 4 |
532185476 |
BELT-V.STRING TRIMMER. Price: $27.99 |
| 4 |
92-9266 |
STANDPIPE Price: $26.91 |
| 5 |
46-6560 |
BUSHING Price: $2.94 |
| 5 |
586506002 |
BRACKET.IDLER.STRG.TRIMMER.14 This part replaces 532186751. Price: $5.99 |
| 6 |
32122-24 |
SCREW-PTH Price: $0.27 |
| 6 |
532166042 |
PULLEY.V-GROOVE.IDLER Price: $22.99 |
| 7 |
3253-15 |
WASHER-LOCK Price: $1.49 |
| 7 |
874760620 |
BOLT This part replaces 532173716. Price: $4.99 |
| 8 |
596322601 |
Nuts This part replaces 873930600. Price: $2.99 |
| 8 |
92-9267 |
SENDER-FUEL Price: $118.15 |
| 9 |
532166043 |
IDLER PULLEY Price: $27.99 |
| 9 |
62-7650 |
GASKET Price: $4.28 |
| 10 |
46-6550 |
FITTING-ELBOW, 90 DEG Price: $37.39 |
| 10 |
532160829 |
SHOULDER BOLT Price: $4.99 |
| 11 |
873930500 |
NUT.CENTERLOCK.5/16- Price: $3.99 |
| 11 |
92-9272 |
HOSE-FILL, FUEL Price: $52.93 |
| 12 |
110-4112 |
HOSE-FUEL This part replaces 92-9283. Price: $12.60 |
| 12 |
532173717 |
SPACER.IDLER.BRACKET Price: $4.99 |
| 13 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 13 |
532174719 |
BOLT SHOULDER 3/8 -16X1 Price: $7.99 |
| 14 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT Price: $3.99 |
| 14 |
92-6064 |
CLAMP-R Price: $2.04 |
| 15 |
322-3 |
SCREW-HH Price: $0.79 |
| 15 |
532173811 |
SPRING.RETURN.WHEELED.TRIMMER Price: $3.99 |
| 16 |
584953201 |
DEFLECTOR.BOTTOM.HW.TRIMMER Price: $54.99 |
| 16 |
92-5674 |
NECK-FILL, FUEL Price: $188.78 |
| 17 |
817060410 |
SCREW 14-20 X 5/8 Price: $3.99 |
| 17 |
93-3102 |
CAP-FUEL Price: $24.02 |
| 18 |
532178848 |
SCREW Price: $3.99 |
| 18 |
92-5675 |
GROMMET Price: $21.90 |
| 19 |
2412-42 |
CLAMP-HOSE Price: $2.65 |
| 19 |
532199574 |
KEEPER.BELT.STRING.TRIMMER Price: $3.99 |
| 20 |
532446665 |
COVER.SUBASM.COVER/IMD.HUSQ Price: $59.99 |
| 20 |
93-1402 |
TANK-FUEL Price: $602.12 |
| 21 |
532149746 |
SCREW.SLOT.TORX. Price: $5.99 |
| 21 |
66-6140 |
DECAL Price: $25.48 |
| 22 |
873610600 |
NUT Price: $2.99 |
| 22 |
92-5671 |
STRIP-SEALING Price: $20.41 |
| 23 |
596238701 |
Washers This part replaces 532850263. Price: $3.99 |
| 23 |
92-5670 |
STRIP-SEALING Price: $7.03 |
| 24 |
596134901 |
GSPH This part replaces 819121214. Price: $2.99 |
| 24 |
92-4703 |
DISCONTINUED Price: $62.47 |
| 25 |
32148-9 |
NUT-CLINCH Price: $2.65 |
| 25 |
532180340 |
PULLEY.SPINDLE.WHEELED.TRIMMER Price: $19.99 |
| 26 |
321-2 |
SCREW-HH Price: $2.79 |
| 26 |
532172551 |
SPACER, PULLEY Price: $5.99 |
| 27 |
532110485 |
BEARING This part replaces 532174549. Price: $11.99 |
| 27 |
92-6069-03 |
SHIELD-EXHAUST This part replaces 92-6069. Price: $27.08 |
| 28 |
32128-33 |
NUT-HF Price: $0.25 |
| 28 |
532172520 |
JACKSHAFT.WHEELED.TRIMMER Price: $34.99 |
| 29 |
240-11 |
BUSHING-FLANGE Price: $5.32 |
| 29 |
532186752 |
CHASSIS.COVER.BOTTOM.BLACK Price: $8.99 |
| 30 |
63-8410 |
WASHER Price: $1.76 |
| 31 |
323-5 |
SCREW-HH Price: $0.41 |
| 31 |
532174581 |
RING, RETAINING, EXTERNAL, Price: $3.99 |
| 32 |
52-9590 |
LATCH-SCREEN Price: $6.57 |
| 32 |
532173973 |
SPRING.1.5".COMPRESSION Price: $6.99 |
| 33 |
3296-12 |
NUT-LOCK, NI Price: $1.29 |
| 33 |
532172519 |
PLATE.LOCKING.WHEELED.TRIMMER Price: $4.99 |
| 34 |
594935003 |
STRING CARRIER ASM, HW TRIMMER This part replaces 532180338. Price: $59.99 |
| 36 |
532172516 |
COVER, BEARING Price: $6.99 |
| 37 |
532174580 |
RING, RETAINING, INTERNAL, Price: $4.99 |
| 38 |
3234-4 |
SCREW-HHF Price: $0.50 |
| 38 |
532180337 |
MOW BALL This part replaces 532172523. Price: $19.99 |
| 39 |
532180334 |
BOLT, MOW BALL Price: $6.99 |
| 39 |
82-9610 |
DISCONTINUED Price: Call Us |
| 40 |
92-5654-03 |
PANEL-OUT, CLEAN This part replaces 92-5654. Price: $113.82 |
| 41 |
3296-56 |
NUT-LOCK, NI Price: $2.09 |
| 41 |
532174029 |
SPACER (2 2MC) Price: $3.99 |
| 42 |
92-5653-03 |
RING-CLAMP This part replaces 92-5653. Price: $16.40 |
| 43 |
532446568 |
DECAL.TRIMMER.WHEELED.HEIGHT Price: $9.99 |
| 43 |
92-5269 |
BELLOWS Price: $193.76 |
| 44 |
3234-13 |
SCREW-HHF Price: $0.77 |
| 45 |
240-9 |
GROMMET Price: $3.25 |
| 45 |
532186753 |
BRACKET.BELT.KEEPER.BLACK Price: $4.99 |
| 46 |
3256-51 |
WASHER-FLAT Price: $0.19 |
| 46 |
817060408 |
SCREW Price: $4.99 |
| 47 |
32144-1 |
SCREW-TAPTITE Price: $3.19 |
| 48 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 49 |
3234-5 |
SCREW-HHF Price: $0.42 |
