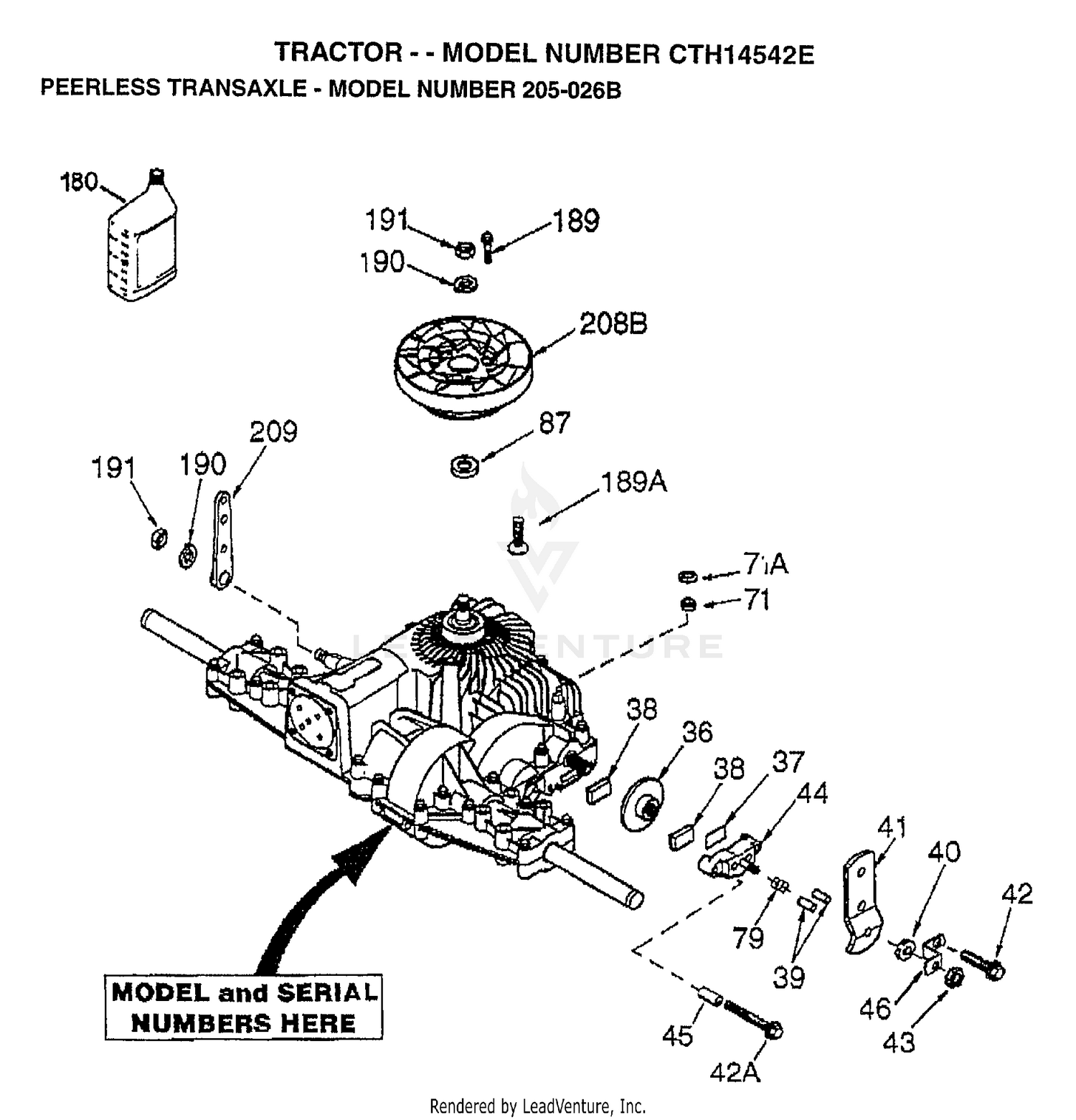

| Ref | Part Number | Description |
|---|
| 1 |
32121-6 |
PIN-ROLL, SLOTTED Price: $0.28 |
| 2 |
32121-45 |
PIN-SPRING Price: $0.27 |
| 3 |
49-6440-03 |
PEDAL-FORWARD Price: $84.90 |
| 4 |
74-9100 |
PAD-PEDAL, FORWARD Price: $27.08 |
| 5 |
75-2970 |
PEDAL-TRACTION Price: $135.64 |
| 6 |
74-9110 |
PAD-PEDAL, REVERSE Price: $13.49 |
| 7 |
75-6550 |
DISC-FRICTION Price: $7.96 |
| 8 |
75-6490 |
LEVER ASM Price: $78.45 |
| 9 |
233-42 |
KNOB Price: $12.88 |
| 11 |
112-5084 |
BRACKET-LEVER This part replaces 75-6510. Price: $61.39 |
| 12 |
75-6580 |
CABLE-PEDAL Price: $34.72 |
| 13 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 14 |
3272-2 |
PIN-COTTER Price: $2.29 |
| 15 |
3290-461 |
WASHER-SPRING Price: $3.89 |
| 16 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 17 |
32128-20 |
NUT-HF Price: $0.99 |
| 18 |
256-236 |
BEARING-MOUNT, FLANGE Price: $27.99 |
| 19 |
322-3 |
SCREW-HH Price: $0.79 |
| 20 |
75-3270-03 |
HUB-PIVOT, TRACTION Price: $144.73 |
| 21 |
100-3893-03 |
TUBE-CONTROL, PUMP Price: $214.54 |
| 22 |
3220-3 |
NUT-HJ Price: $0.28 |
| 23 |
2411-36 |
BEARING-END, ROD Price: $32.13 |
| 24 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 25 |
323-9 |
SCREW-HH Price: $1.29 |
| 26 |
5-0652 |
SPACER Price: $5.35 |
| 27 |
323-29 |
SCREW-HH Price: $0.42 |
| 28 |
60-5700 |
SPRING Price: $27.02 |
| 29 |
92-7608-03 |
BRACKET-SPRING Price: $16.86 |
| 30 |
92-7609 |
SHAFT-SPRING Price: $62.79 |
| 31 |
92-7610 |
RETAINER-SPRING Price: $26.52 |
| 32 |
32121-11 |
PIN-ROLL Price: $0.47 |
| 33 |
32144-14 |
SCREW-HWHTF Price: $4.29 |
| 34 |
3256-5 |
WASHER-FLAT Price: $0.27 |
| 36 |
790075 |
BRAKE DISC Price: Call Us |
| 37 |
790007 |
PLATE BRAKE PAD Price: Call Us |
| 38 |
799021 |
BRAKE PAD Price: Call Us |
| 39 |
786026 |
PIN DOWEL Price: Call Us |
| 40 |
792076A |
WASHER Price: Call Us |
| 41 |
790085 |
BRAKE LEVER Price: Call Us |
| 42 |
792073 |
SCREW, 1/4-20 X 1-1/4 Price: Call Us |
| 42A |
792085A |
SCREW, 1/4-20 X 2-1/4 Price: Call Us |
| 43 |
792075 |
LOCKNUT 5/16-24 Price: Call Us |
| 44 |
790025 |
HOLDER BRAKE PAD Price: Call Us |
| 45 |
786066 |
SPACER Price: Call Us |
| 46 |
790086 |
BRAKE LEVER BRACKET Price: Call Us |
| 71 |
788069 |
SEAL SQUARE CUT Price: Call Us |
| 71A |
792162 |
PUSHNUT Price: Call Us |
| 79 |
792144 |
SPRING Price: Call Us |
| 87 |
788035 |
OIL SEAL Price: Call Us |
| 180 |
730229A |
GEAR OIL 80W90 Price: Call Us |
| 189 |
792168 |
DRIVE SCREW Price: Call Us |
| 189A |
792169 |
SCREW Price: Call Us |
| 190 |
792150 |
LOCKWASHER Price: Call Us |
| 191 |
792151 |
NUT Price: Call Us |
| 208B |
798025 |
FAN/COUPLING Price: Call Us |
