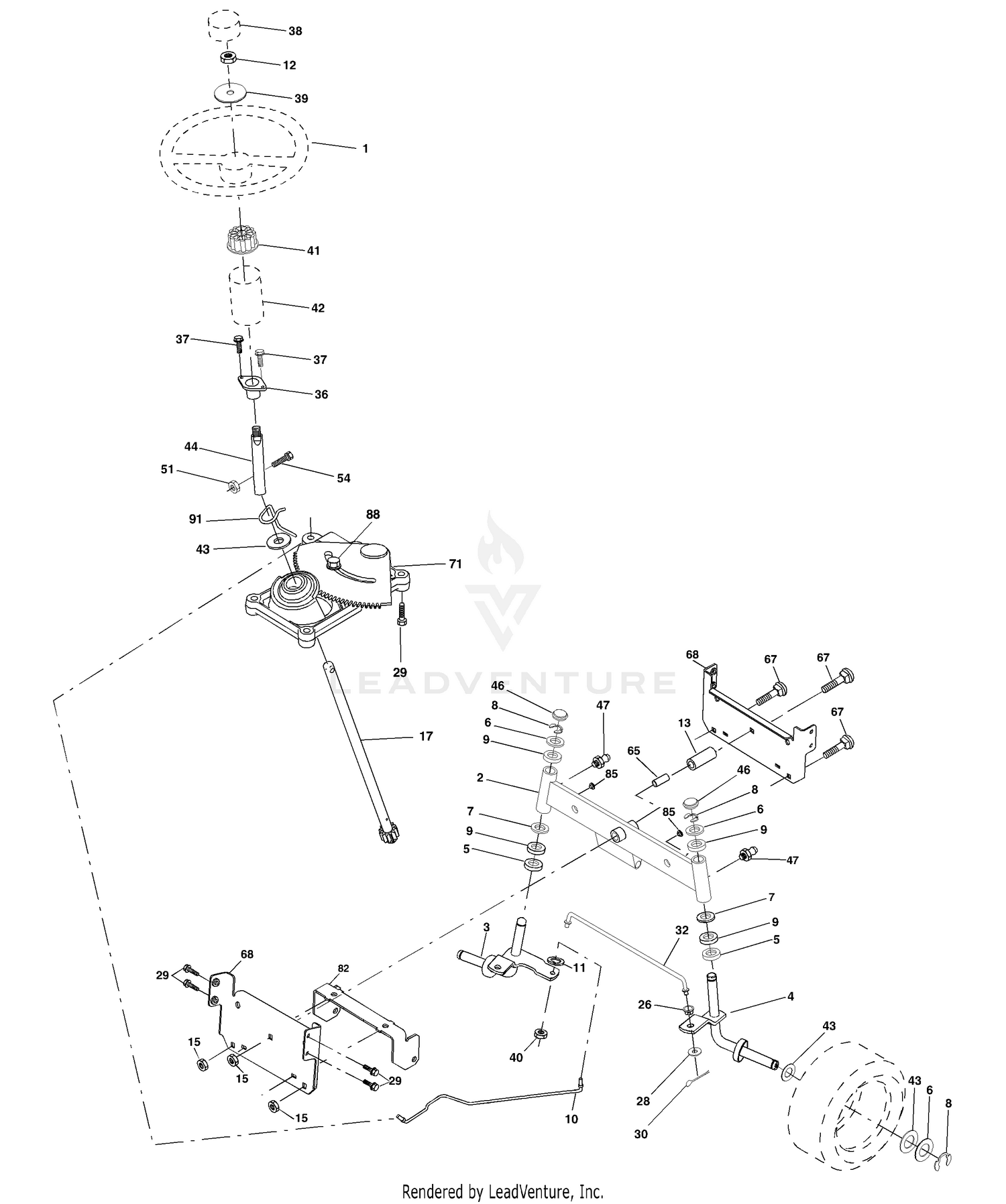

| Ref | Part Number | Description |
|---|
| 1 |
117-7586 |
CONNECTING ROD ASM This part replaces 98-9552. Price: $547.99 |
| 1 |
140044X428 |
Wheel Steering Price: Call Us |
| 2 |
175234 |
Axle Asm Price: Call Us |
| 2 |
98-9642 |
CRANKSHAFT ASM Price: $4,332.74 |
| 3 |
169840 |
Spindle Asm LH Price: Call Us |
| 3 |
98-9514 |
CIRCLIP-PIN, PISTON Price: $2.79 |
| 4 |
169839 |
Spindle Asm RH Price: Call Us |
| 4 |
98-9513 |
PIN-PISTON Price: $13.17 |
| 5 |
6266H |
Bearing Race Thrust Harden Price: Call Us |
| 5 |
98-9551 |
PISTON RING ASM (STD) Price: $220.34 |
| 5 |
98-9619 |
PISTON RING ASM (0.5MM) Price: $96.35 |
| 6 |
112-8415 |
PISTON ASM This part replaces 98-9470. Price: $456.30 |
| 6 |
121748X |
Washer 25/32 x 1-5/8 x 16 Ga Price: Call Us |
| 6 |
98-9550 |
PISTON (STD) Price: $274.67 |
| 7 |
127-0416 |
METAL-SIDE (+0.2MM) This part replaces 98-9414. Price: $21.04 |
| 7 |
19272016 |
Washer 27/32 x 1-1/4 x 16 Ga Price: Call Us |
| 7 |
98-9413 |
BEARING-THRUST (STD) Price: $16.90 |
| 7 |
98-9415 |
BEARING-THRUST (0.4MM) Price: $9.77 |
| 8 |
12000029 |
Ring Klip #t5304-75 Price: Call Us |
| 8 |
127-0437 |
METAL-SIDE (+0.2MM) This part replaces 98-9689. Price: $18.42 |
| 8 |
127-0438 |
METAL-SIDE (+0.40MM) This part replaces 98-9690. Price: $12.65 |
| 8 |
98-9688 |
BEARING-THRUST (STD) Price: $16.90 |
| 9 |
115-4121 |
METAL-CRANKSHAFT (STD) This part replaces 98-9556. Price: $86.06 |
| 9 |
3366R |
Bearing Col Strg Blk Price: Call Us |
| 9 |
98-9526 |
BEARING-MAIN (0.2MM) Price: $64.36 |
| 9 |
98-9527 |
BEARING-MAIN (0.4MM) Price: $63.74 |
| 10 |
127-0433 |
METAL-CRANKSHAFT (-0.2MM) This part replaces 98-9530. Price: $60.46 |
| 10 |
175121 |
Link Drag Price: Call Us |
| 10 |
98-9524 |
METAL-CRANKSHAFT (STD SET) This part replaces 98-9555. Price: $62.26 |
| 10 |
98-9531 |
BEARING-MAIN (0.4MM) Price: $39.97 |
| 11 |
10040600 |
Washer, Lock Hvy. Hlcl. Spr. 3/8 Price: Call Us |
| 11 |
112-7005 |
BEARING-MAIN (STD) This part replaces 98-9554. Price: $66.99 |
| 11 |
98-9528 |
BEARING-MAIN (-0.2MM) Price: $15.04 |
| 11 |
98-9529 |
BEARING-MAIN (0.4MM) Price: $40.04 |
| 12 |
73940800 |
Nut Hex Jam Toplock 1/2-20 Unf Price: Call Us |
| 12 |
98-9373 |
O-RING Price: $3.11 |
| 13 |
136518 |
Spacer earing Axle Front Price: Call Us |
| 15 |
145212 |
Hexflange Lock Price: Call Us |
| 17 |
180641 |
Shaft Asm Strg Price: Call Us |
| 26 |
126847X |
Bushing Link Drag Blk LR Price: Call Us |
| 28 |
19131416 |
Washer 13/32 x 7/8 x 16 Ga Price: Call Us |
| 29 |
17060612 |
Screw 3/8-16 x 3/4 Price: Call Us |
| 30 |
76020412 |
Pin Cotter 1/8 x 3/4 Cad Price: Call Us |
| 32 |
130465 |
Rod Tie Wire Form 19 75 Mech Price: Call Us |
| 36 |
155099 |
Bushing Strg 5/8 Id Dash Price: Call Us |
| 37 |
152927 |
Screw Price: Call Us |
| 38 |
140045X428 |
Cap Wheel Steer Ayp Price: Call Us |
| 39 |
19183812 |
Washer 9/16 x 2-3/8 Price: Call Us |
| 40 |
7810H |
Nut Lock Center 3/8-24un Price: Call Us |
| 41 |
100711L |
Adaptor Wheel Strg Price: Call Us |
| 42 |
145054X428 |
Boot Dash Mtl Steering Blk Price: Call Us |
| 43 |
121749X |
Washer 25/32 X 1 1/4 X 16 Ga Price: Call Us |
| 44 |
180640 |
Extension Steering Price: Call Us |
| 46 |
121232X |
Cap Spindle Fr Top Blk Price: Call Us |
| 47 |
6855M |
Fitting Grease Price: Call Us |
| 51 |
73540400 |
Nut Crownlock 1/4-28 Price: Call Us |
| 54 |
71130420 |
Bolt Hex 1/4-28 Unf x 1-1/4 Gr. 8 Price: Call Us |
| 65 |
160367 |
Spacer Brace Axle Price: Call Us |
| 67 |
72140618 |
Bolt Fin Hex 5/8-11 unc x 2-3/4 Price: Call Us |
| 68 |
169827 |
Brace Axle Price: Call Us |
| 71 |
175146 |
Steering Asm. Price: Call Us |
| 82 |
169835 |
Bracket Susp Chassis Front Price: Call Us |
| 85 |
133835 |
Fastener Christmas Tree Price: Call Us |
| 88 |
175118 |
Bolt Shoulder 7/16-20 Price: Call Us |
