| Ref | Part Number | Description |
|---|
| 1 |
532176031 |

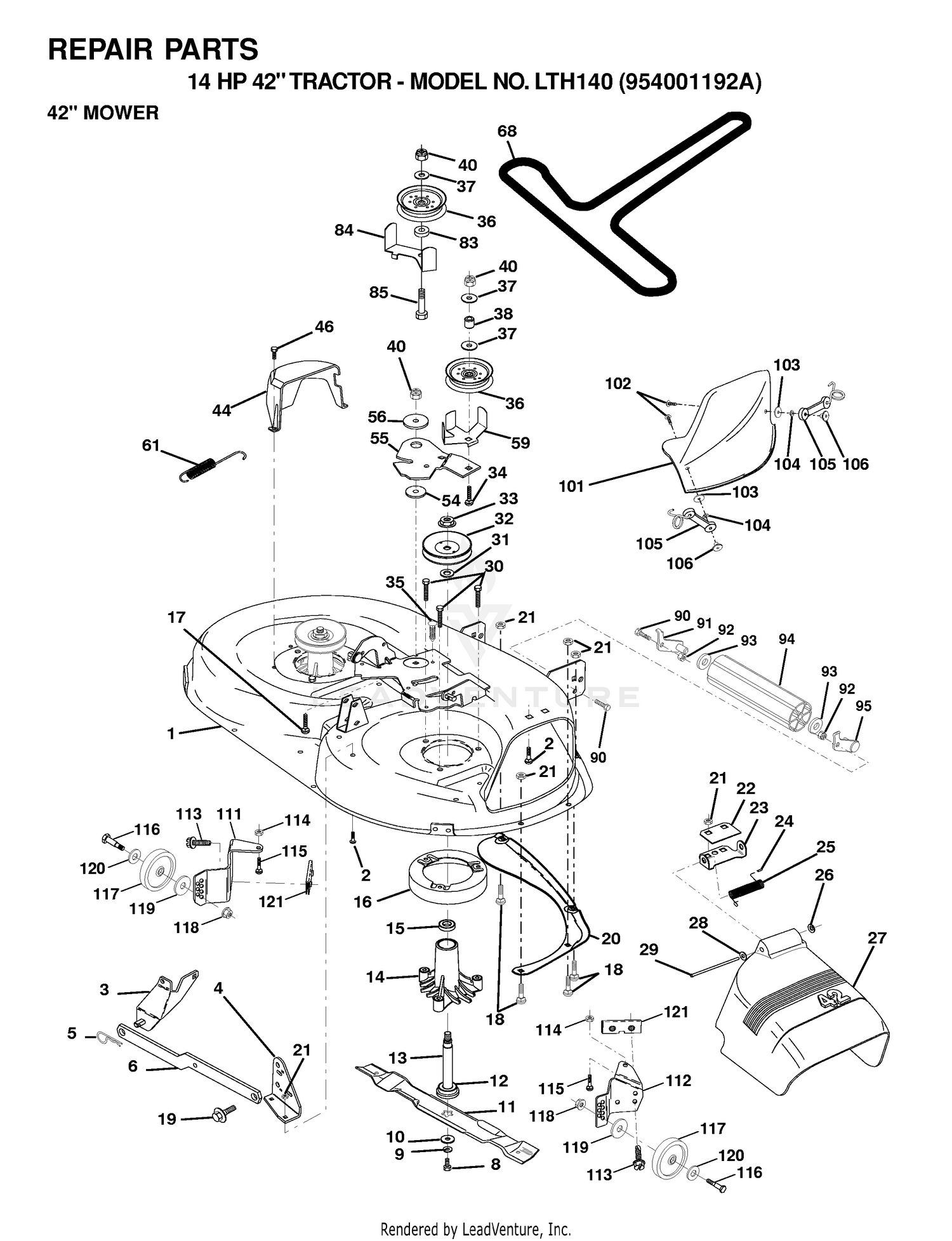

DECK SVC 42" TP This part replaces 532144393. Price: $279.99 |
| 2 |
595901601 |
GSPW Bolts This part replaces 872140506. Price: $2.99 |
| 3 |
531165401 |
SERVICE.KIT BRACKET BRKT ASM S This part replaces 532138017. Price: $12.99 |
| 4 |
532138440 |
BRKT DECK SW BAR Price: $4.99 |
| 5 |
532124670 |
RETAINER-SPRNG RB Price: $5.99 |
| 6 |
531149301 |
SERVICE KIT BAR BAR SWAY DECK. This part replaces 532130832. Price: $9.99 |
| 8 |
532850857 |
BLADE BOLT Price: $3.99 |
| 9 |
596238701 |
Washers This part replaces 810030600. Price: $3.99 |
| 10 |
532140296 |
WASHER.BLADE Price: $5.99 |
| 12 |
532129895 |
BEARING.BALL.#6204.(MANDREL) Price: $9.99 |
| 13 |
532137646 |
KIT MANDREL W/NUT This part replaces 532137645. Price: $29.99 |
| 14 |
532128774 |
HOUSING.MANDREL.VENTED (MACHD) Price: $29.99 |
| 15 |
532110485 |
BEARING Price: $11.99 |
| 16 |
531167701 |
SERVICE KIT MANDREL STRIPPER This part replaces 532140329. Price: $6.99 |
| 17 |
596987501 |
Bolts This part replaces 872110610. Price: $3.99 |
| 18 |
596136401 |
Bolts This part replaces 872140505. Price: $2.99 |
| 19 |
532132827 |
BOLT SHD 5/16-18 Price: $4.99 |
| 20 |
531167001 |
SERVICE KIT BAFFLE.VORTEX BAFF This part replaces 532136888. Price: $11.99 |
| 21 |
596040501 |
Hardware This part replaces 873680500. Price: $2.99 |
| 22 |
532134753 |
STIFFENER BRACKET Price: $5.99 |
| 23 |
529845901 |
SERVICE KIT BRKT This part replaces 532131267. Price: $4.99 |
| 24 |
532105304 |
CAP-SLEEVE LT Price: $3.99 |
| 25 |
532123713 |
SPRING TORSION Price: $6.99 |
| 26 |
532110452 |
NUT PUSH M Price: $2.99 |
| 27 |
532130968 |
SHIELD.DEFLECTOR.MOWER.42".BLK Price: $34.99 |
| 28 |
819111016 |
Washer 11/32 x 5/8 x 16 Ga SD Price: $5.99 |
| 29 |
595297001 |
Rods This part replaces 532131491. Price: $4.99 |
| 30 |
584953901 |
BOLT.HEX.WASHR.HED.313-18X1.19 This part replaces 532138776. Price: $3.99 |
| 31 |
532187690 |
WASHER.SPACER.MANDREL This part replaces 532129963. Price: $3.99 |
| 32 |
532173436 |
PULLEY MANDREL This part replaces 532129861. Price: $14.99 |
| 33 |
532139729 |
KIT.NUT.FLANGE This part replaces 532137266. Price: $7.99 |
| 34 |
872110622 |
BOLT Price: $3.99 |
| 35 |
532133835 |
FASTENER.XMAS.TREE Price: $3.99 |
| 36 |
597025001 |
CLG This part replaces 532131494. Price: $22.99 |
| 37 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99 |
| 38 |
532132823 |
IDLER SPRING SPACER Price: $5.99 |
| 40 |
596322601 |
Nuts This part replaces 873680600. Price: $2.99 |
| 44 |
532140088 |
GUARD MANDREL LH BLACK Price: $29.99 |
| 46 |
532137729 |
SCREW.1/4-20X5/8 Price: $3.99 |
| 54 |
532178515 |
WASHER This part replaces 532133943. Price: $5.99 |
| 55 |
532151785 |
KIT.CAM.ROLLER.42".SERVICE This part replaces 532140084. Price: $34.99 |
| 56 |
532165723 |
SPACER.RETAINER.MOWER This part replaces 532122052. Price: $5.99 |
| 59 |
531165901 |
SERVICE KIT GUARD This part replaces 532141043. Price: $4.99 |
| 61 |
532131950 |
SPRING EXTENSION Price: $7.99 |
| 68 |
532144200 |
V-BELT TRIPATH Price: $39.99 |
| 83 |
532120958 |
WASHER Price: $5.99 |
| 84 |
531150901 |
SERVICE KIT BELT KEEPER This part replaces 532144394. Price: $3.99 |
| 85 |
596337801 |
Bolts This part replaces 872140620. Price: $4.99 |
| 90 |
596564401 |
Bolts This part replaces 874760616. Price: $3.99 |
| 91 |
532175746 |
BRACKET ASM, ROLLER (L) This part replaces 532132274. Price: $7.99 |
| 92 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 93 |
819171416 |
Washer 1 17/32 X 7/8 X 16 Ga Price: $3.99 |
| 94 |
532132264 |
NOSE ROLLER Price: $29.99 |
| 95 |
531154101 |
SERVICE KIT BRACKET BRACKET AS This part replaces 532132273. Price: $12.99 |
| 101 |
532136420 |
COVER MULCH 42" Price: $13.99 |
| 102 |
596039001 |
Screws This part replaces 871161010. Price: $2.99 |
| 103 |
810071000 |
LOCKWASHER #10 Price: $3.99 |
| 104 |
819061216 |
WASHER Price: $3.99 |
| 105 |
597000601 |
LATCH.ASM.MULCH/BAGGER This part replaces 532130758. Price: $5.99 |
| 106 |
596987401 |
Nuts This part replaces 532125004. Price: $2.99 |
| 111 |
532181040 |
KIT.BRKT.GAUGE.WHEEL.42" This part replaces 532140353. Price: $32.99 |
| 112 |
532181040 |
KIT.BRKT.GAUGE.WHEEL.42" This part replaces 532132262. Price: $32.99 |
| 113 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 817490512. Price: $3.99 |
| 114 |
596040501 |
Hardware This part replaces 873510500. Price: $2.99 |
| 115 |
596039401 |
BOLT ROUND HEAD SQUARE NECK BO This part replaces 872110504. Price: $2.99 |
| 117 |
532105455 |
WHEEL.GAUGE.BLK.4.93 Price: $14.99 |
| 118 |
596322601 |
Nuts This part replaces 873930600. Price: $2.99 |
| 119 |
596134901 |
GSPH This part replaces 819121414. Price: $2.99 |
| 120 |
819171512 |
Washer 17/32 x 15/16 x 12 Gauge Price: $3.99 |
| 121 |
532143723 |
BRACKET.EXTRUDED.GAGE.WHEEL Price: $8.99 |
| 532130794 |
KIT.MANDREL.ASM.3.BOLT |
Price: $49.99 532130794 |
| 548102301 |
SERVICE |
DECK KIT 42" NON-TEX This part replaces 532145452. Price: $379.99 548102301 |
