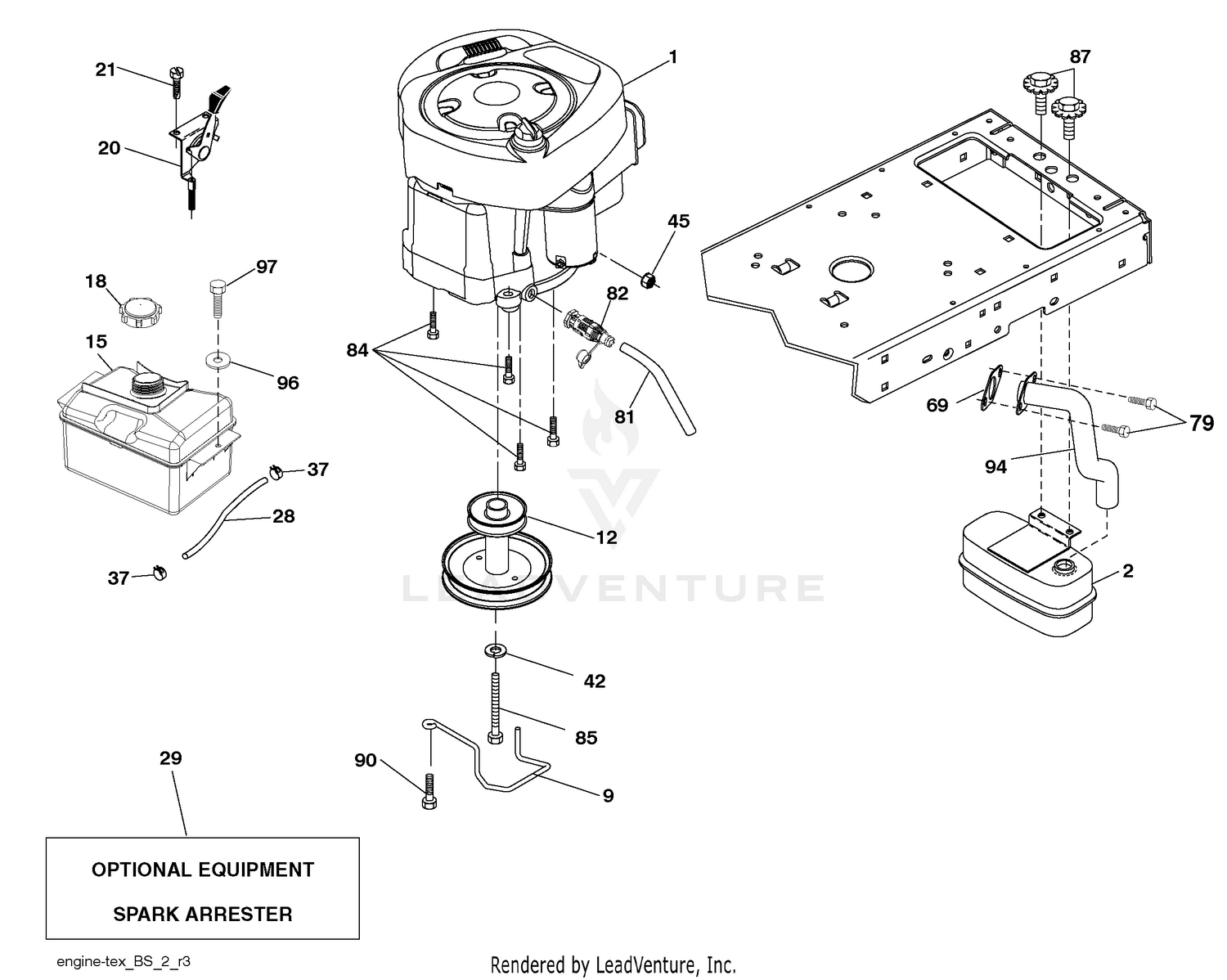

| Ref | Part Number | Description |
|---|
| 1 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 2 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 2 |
532188655 |
MUFFLER.SINGLE.CYL.KOHL/B&S Price: $39.99 |
| 3 |
322-10 |
SCREW-HH Price: $0.70 |
| 4 |
32105-21 |
SCREW-HH Price: $1.09 |
| 6 |
29-6162 |
SWITCH-MICRO Price: $107.13 |
| 7 |
75-4130 |
PLATE-SWITCH Price: $13.26 |
| 8 |
76-9430-03 |
SPRING-EXTENTION This part replaces 76-9430. Price: $28.14 |
| 9 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 9 |
596501502 |
Keepers This part replaces 532194320. Price: $9.99 |
| 10 |
322-7 |
SCREW-HH Price: $0.89 |
| 11 |
251-259 |
BEARING-BALL Price: $13.67 |
| 12 |
586478501 |
ENGINE.PULLEY This part replaces 532405471. Price: $27.99 |
| 12 |
75-5470 |
SPACER-BEARING Price: $3.06 |
| 13 |
32144-22 |
SCREW Price: $0.75 |
| 15 |
581290101 |
TANK.ASSEMBL.2.5GAL.NON-EPA This part replaces 532407489. Price: $99.99 |
| 15 |
75-4080-03 |
PLATE-TRACTION ASM This part replaces 75-4080. Price: $56.27 |
| 16 |
85-9900-03 |
PLATE-ANCHOR, SPRING This part replaces 85-9900. Price: $21.09 |
| 17 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 18 |
322-3 |
SCREW-HH Price: $0.79 |
| 18 |
581075501 |
CAP.2.25'.VENTED.RATCHET.EPA This part replaces 532430220. Price: $22.99 |
| 19 |
256-113 |
BUSHING-FLANGE Price: $5.58 |
| 20 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 20 |
532401508 |
CONTROL.TH/CK.COBRA.KO Price: $24.99 |
| 21 |
596321701 |
Screws This part replaces 532416358. Price: $2.99 |
| 21 |
75-4090 |
DISCONTINUED Price: Call Us |
| 22 |
3-6498 |
WASHER-THRUST Price: $4.58 |
| 23 |
76-8640 |
STUD-TRACTION Price: $23.60 |
| 24 |
3296-9 |
NUT-HEX Price: $0.25 |
| 25 |
75-4100-03 |
CONTROL-PUMP This part replaces 75-4100. Price: $198.81 |
| 26 |
23-2270 |
BUSHING-RUBBER Price: $17.07 |
| 27 |
85-9910 |
EYEBOLT Price: $28.77 |
| 28 |
587044822 |
HOSE.1/4".LOW.PERM.FUEL.LN.22" This part replaces 532401137. Price: $9.99 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 37 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 42 |
596238901 |
Washers This part replaces 810040700. Price: $2.99 |
| 45 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 69 |
532272293 |
GASKET.ENG.1.313 ID.TIN PLATED This part replaces 532165291. Price: $8.99 |
| 79 |
596134201 |
Screws This part replaces 532192334. Price: $2.99 |
| 81 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $5.99 |
| 82 |
532428287 |
VALUE.OIL.DRAIN Price: $14.99 |
| 84 |
817060620 |
SCREW.3/8-16 Price: $5.99 |
| 85 |
501606501 |
BOLT.HEX.7/16-20X4.GR5.1.5BLUE This part replaces 532173937. Price: $2.99 |
| 87 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK Price: $4.99 |
| 90 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 94 |
581880901 |
EXHAUST.TUBE.B&S.28/31 This part replaces 532405450. Price: $19.99 |
| 96 |
596135301 |
Washers This part replaces 819091416. Price: $2.99 |
