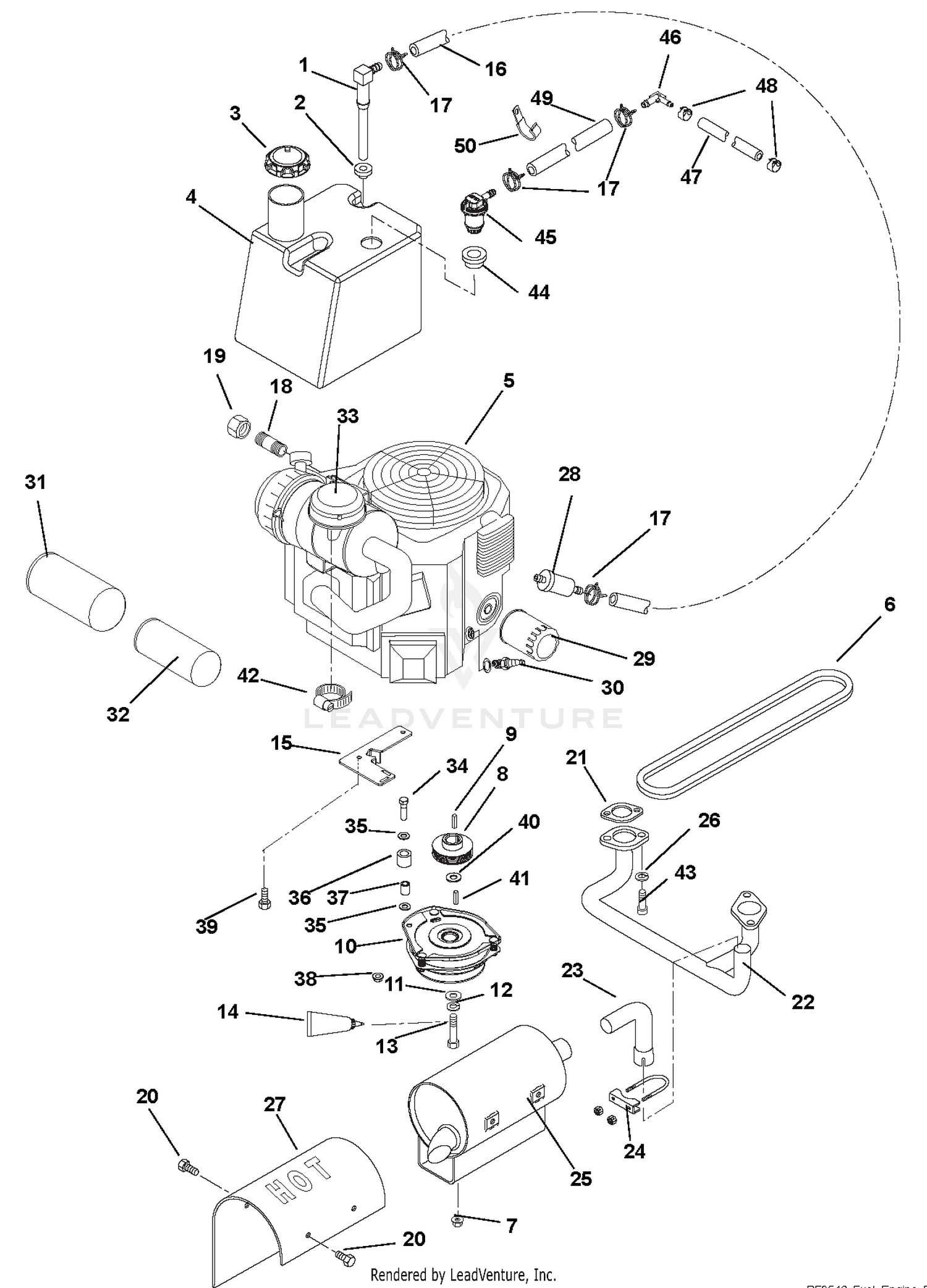

| Ref | Part Number | Description |
|---|
| 1 |
03875300 |
ASSY-PICKUP, FUEL This part replaces 09112300. Price: $13.45 |
| 2 |
00387300 |
GROMMET, DAPCO VITON #12240 Price: $8.45 |
| 3 |
09190300 |
CAP, FUEL - 3.50 RATCHET INLET VENT This part replaces 04237300. Price: $30.95 |
| 4 |
04341000 |
TANK-PM320 FUEL This part replaces 04245700. Price: $116.15 |
| 5 |
08200327 |
ENGINE, KAWASAKI FX751 (27HP) Price: Call Us |
| 6 |
07224300 |
V-BELT, HA-RAW EDGE Price: $37.95 |
| 7 |
06500904 |
NUT-LK-TOP-FLG .312-18 GF ZCC This part replaces 06543100. Price: $0.95 |
| 8 |
07325300 |
PLY- 4.50X1.12 Price: $74.45 |
| 9 |
06602200 |
KEY-SQ .25X1.0X.25 SAE 8630 Price: $3.45 |
| 10 |
00447100 |
CLUTCH, ELE-OGURA GT3.5-VP01R Price: $564.95 |
| 11 |
06401111 |
WSHR, FLT .469X2.00X.250 ZCC This part replaces 06443600. Price: $6.95 |
| 12 |
06300121 |
WSHR, LK-REG .438X.109 ZCC This part replaces 06309300. Price: $2.45 |
| 13 |
05902004 |
BLT- HEX .44-20X1.50 G5ZCCEP80 This part replaces 05900039. Price: $5.45 |
| 15 |
03296051 |
WMT - CLUTCH ANCHOR - OGURA Price: $46.95 |
| 17 |
03278800 |
CLAMP, FUEL LINE Price: $0.95 |
| 18 |
07025000 |
NIPPLE,PIPE .38X6.0 UNFIN STL Price: $14.95 |
| 19 |
03563600 |
PIPE CAP Price: $7.95 |
| 21 |
08824700 |
GASKET,EXHAUST Price: $20.45 |
| 22 |
01058600 |
MANIFOLD - 27 HP KAWASAKI Price: $105.00 |
| 23 |
04940500 |
TUBE, MANIFOLD Price: $71.95 |
| 24 |
07067900 |
U-BOLT, 1/4-20 X 1 1/2" Price: $5.95 |
| 26 |
06300119 |
WSHR-LK-REG .312X.078 ZCC This part replaces 06308600. Price: $0.95 |
| 28 |
21573800 |
FUEL FILTER This part replaces 21538400. Price: $13.95 |
| 29 |
21535800 |
FILTER,OIL - KAW Price: $27.45 |
| 30 |
21536100 |
PLUG, SPARK Price: $8.95 |
| 31 |
21548800 |
FILTER, OUTER Price: $40.95 |
| 32 |
21548700 |
FILTER, INNER - KAW Price: $38.45 |
| 33 |
09408700 |
CAP, AIR CLEANER INTAKE (2") Price: $50.95 |
| 34 |
05901928 |
BLT, HEX .38-16X1.50 G5 ZCC This part replaces 05957900. Price: $1.45 |
| 35 |
06401013 |
WSHR-FLT .406X.812X.065 ZCC This part replaces 06436200. Price: $0.95 |
| 36 |
07500007 |
BUMPER,RUBBER .62X1.0X.88 LG Price: $5.45 |
| 37 |
08905500 |
BUSH.,S.407X.625X.813 ST Price: $12.45 |
| 38 |
06500822 |
NUT-LK-TOP-FLG .38-16 ZC120 This part replaces 06542000. Price: $0.95 |
| 39 |
05901507 |
BLT-HEX.38-16X1.25FTHG5 EP80YZ Price: $2.45 |
| 40 |
06434200 |
WSHR-THRST 1.125X1.750X.1245 Price: $16.95 |
| 41 |
06602600 |
KEY-SQ .25 X 2.50 X .25 SAE Price: $5.45 |
| 42 |
06900339 |
CLAMP, HOSE 2.75 DIA WORM Price: $10.95 |
| 43 |
05931800 |
SCR-SKH M8 X 1.25X20 Price: $2.45 |
| 44 |
04082700 |
GROMMET, REMOTE VENT NITRILE Price: $3.45 |
| 45 |
05185600 |
VALVE, COMBINATION VENT 3/16 This part replaces 04068910. Price: $16.45 |
| 46 |
04097000 |
FITTING-3/16X1/4 90DEGREE VAC Price: $13.45 |
| 47 |
03375900 |
HOSE, .188 LOW-PERM BULK GAS Price: $0.95 |
| 48 |
04097700 |
CLAMP-HOSE- SPRING .188 Price: $1.45 |
| 03820900 |
RAIN |
CAP, AIR CLEANER (2.5") Price: $61.45 03820900 |
