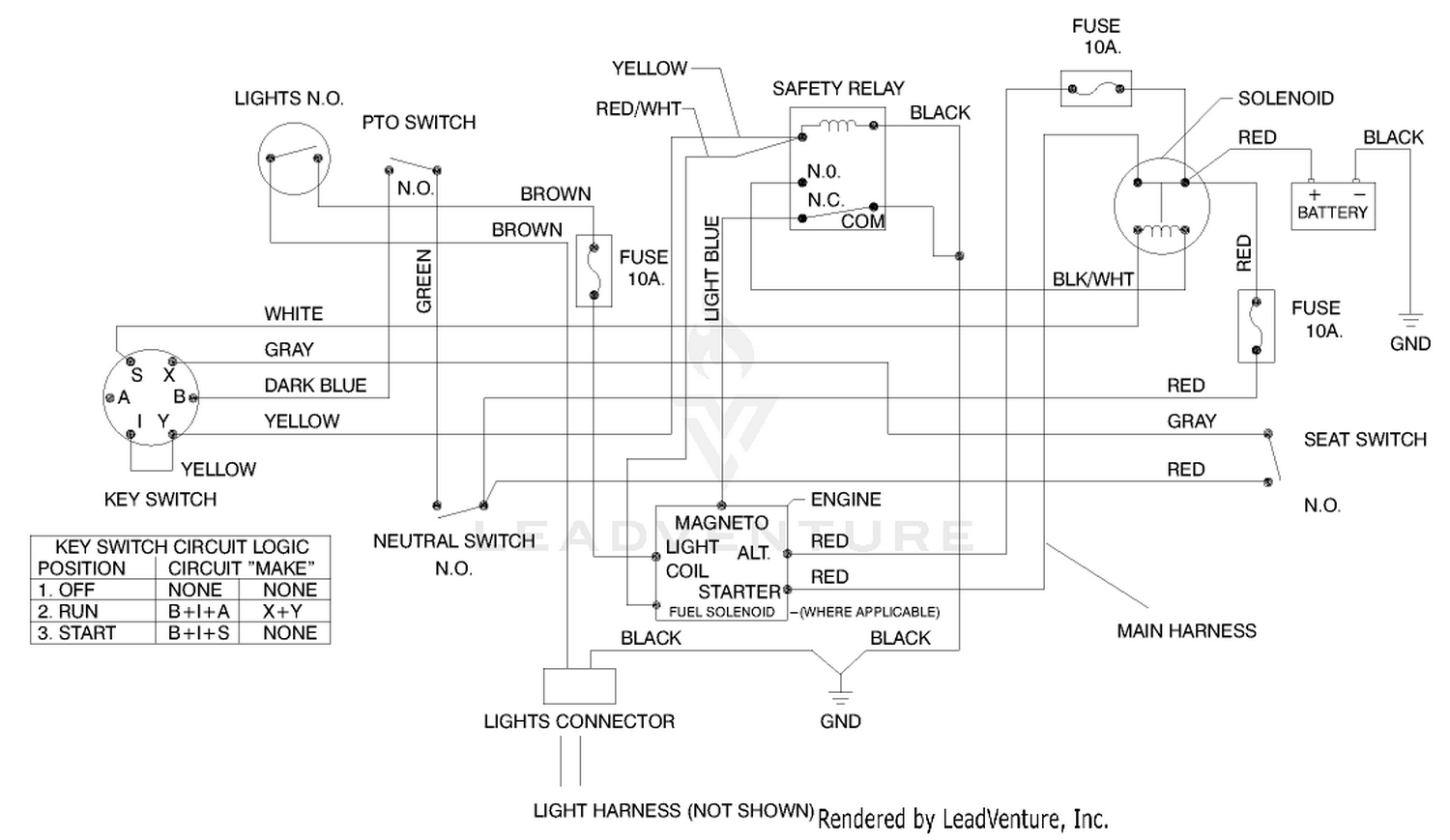

Electrical Schematic
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 3296-29 | NUT-LOCK, NI Price: $2.09 |
| 2 | 322-9 | SCREW-HH Price: $3.09 |
| 3 | 88-6060 | GUIDE-BELT, LH Price: $12.91 |
| 4 | 76-3820 | ANCHOR-GUIDE, BELT Price: $1.26 |
| 5 | 88-5490 | GUIDE-BELT, RH Price: $11.12 |
| 6 | 88-6480 | MUFFLER Price: $222.63 |
| 7 | 321-4 | SCREW-HH Price: $0.99 |
| 8 | 3253-3 | WASHER-LOCK Price: $0.31 |
| 9 | 92-2482 | DISCONTINUED Price: Call Us |
| 10 | 88-3820 | DISCONTINUED Price: Call Us |
