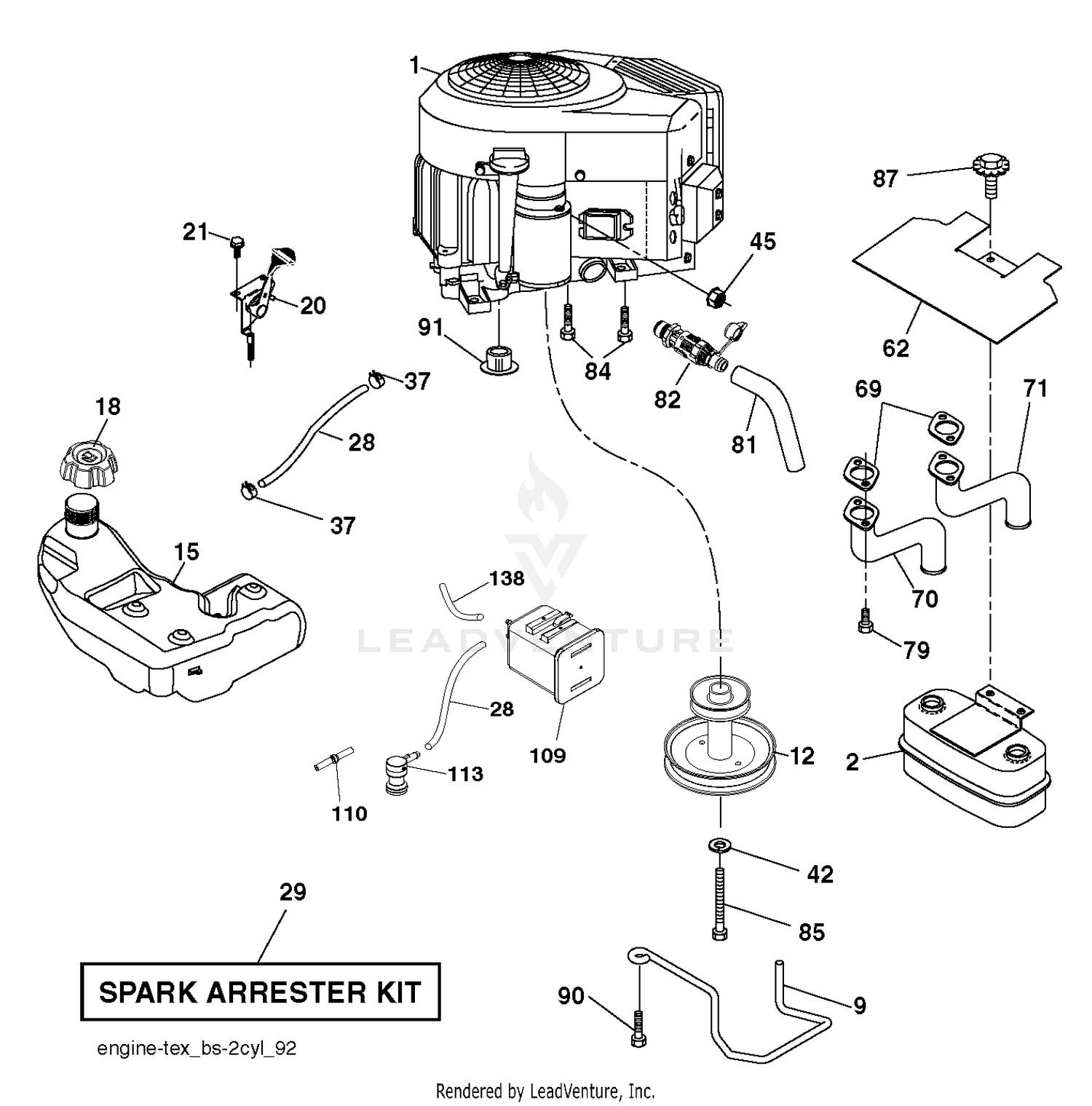

| Ref | Part Number | Description |
|---|
| 1 |
631482 |
SHAFT & LEV Price: Call Us |
| 2 |
589818702 |
MUFFLER.ASM.TWIN.MNTG.BRACKET This part replaces 532445962. Price: $44.99 |
| 2 |
631045 |
RET SPRING Price: Call Us |
| 3 |
631367 |
SHUTTER Price: Call Us |
| 4 |
650506 |
SCREW Price: $0.87 |
| 5 |
630766 |
SPRING Price: $1.25 |
| 6 |
651025 |
SCREW This part replaces 650417. Price: $1.18 |
| 7C |
631160 |
SHAFT & LEV Price: Call Us |
| 9 |
596501502 |
Keepers This part replaces 532194320. Price: $9.99 |
| 9 |
630736 |
SHUTTER Price: $2.19 |
| 10 |
631562 |
ADJ SCREW Price: $3.74 |
| 11 |
630738 |
SPRING Price: $1.25 |
| 11A |
631192 |
SPRING Price: Call Us |
| 12 |
532405472 |
RP_PULLEY ENGINE Price: $34.99 |
| 12 |
630739 |
WASHER Price: $1.25 |
| 12A |
631191 |
WASHER Price: $1.20 |
| 13 |
630740 |
O RING Price: $1.49 |
| 13A |
631190 |
O RING Price: Call Us |
| 14 |
631189 |
ADJ SCREW Price: Call Us |
| 15 |
529999102 |
TANK ASSY W/CAP 3 GAL CARB This part replaces 532414151. Price: $329.99 |
| 15 |
632554 |
WELCH PLUG This part replaces 630746. Price: $1.17 |
| 16 |
630953 |
PUMP ELEMENT Price: $6.03 |
| 17 |
632554 |
WELCH PLUG This part replaces 630746. Price: $1.17 |
| 18 |
532439208 |
CAP.ASM.FL.RITCH.3"E10.SYM.498 Price: $37.99 |
| 18 |
631049 |
SPRING Price: $1.20 |
| 19 |
630742 |
GASKET Price: $1.25 |
| 20 |
532423502 |
CONTROL.TH/CK.COBRA.B&S.TWN.BK Price: $24.99 |
| 20 |
630932A |
INLET NEEDLE Price: $4.39 |
| 21 |
596321701 |
Screws This part replaces 532416358. Price: $2.99 |
| 21 |
630750A |
GASKET This part replaces 630750. Price: $3.00 |
| 22 |
630978 |
DIAPHRAGM Price: $4.49 |
| 23 |
630751 |
COVER Price: $8.60 |
| 24 |
650545 |
SCREW Price: $1.20 |
| 25 |
631201 |
CHECK VALVE Price: $15.40 |
| 26B |
631395 |
FUEL FITTING Price: Call Us |
| 27 |
631048 |
SPRING Price: Call Us |
| 28 |
587044864 |
HOSE 1/4" LOW PERMEATION FUEL This part replaces 532401135. Price: $17.99 |
| 28 |
650569 |
SCREW Price: Call Us |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 29 |
630955 |
RETAINER--NLA Price: Call Us |
| 30 |
650545 |
SCREW Price: $1.20 |
| 37 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 42 |
596238901 |
Washers This part replaces 810040700. Price: $2.99 |
| 45 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 62 |
531154901 |
SERVICE KIT HEAT SHIELD This part replaces 532434017. Price: $11.99 |
| 69 |
532165391 |
GASKET.MUFFLER Price: $9.99 |
| 71 |
581881001 |
EXHAUST.TUBE.RH.B&S.TWIN.INTEK Price: $22.99 |
| 79 |
596134202 |
Screws This part replaces 532183906. Price: $2.99 |
| 81 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $5.99 |
| 82 |
532428287 |
VALUE.OIL.DRAIN Price: $14.99 |
| 84 |
817060620 |
SCREW.3/8-16 Price: $5.99 |
| 85 |
501606501 |
BOLT.HEX.7/16-20X4.GR5.1.5BLUE This part replaces 532173937. Price: $2.99 |
| 87 |
537171877 |
BOLT 5/1618UNC X 3/4 W/ SEMS Price: $1.99 |
| 90 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 91 |
532187495 |
BUSHING.1.375OD Price: $4.99 |
| 109 |
532414114 |
CANNISTER, CARBON Price: $54.99 |
| 110 |
532414118 |
VALVE.ASM.ANTI-SLOSH Price: $19.99 |
| 113 |
597791601 |
VALVES This part replaces 532414127. Price: $9.99 |
| 138 |
587044580 |
Hoses This part replaces 532414119. Price: $9.99 |
