| Ref | Part Number | Description |
|---|
| 1 |
182032 |

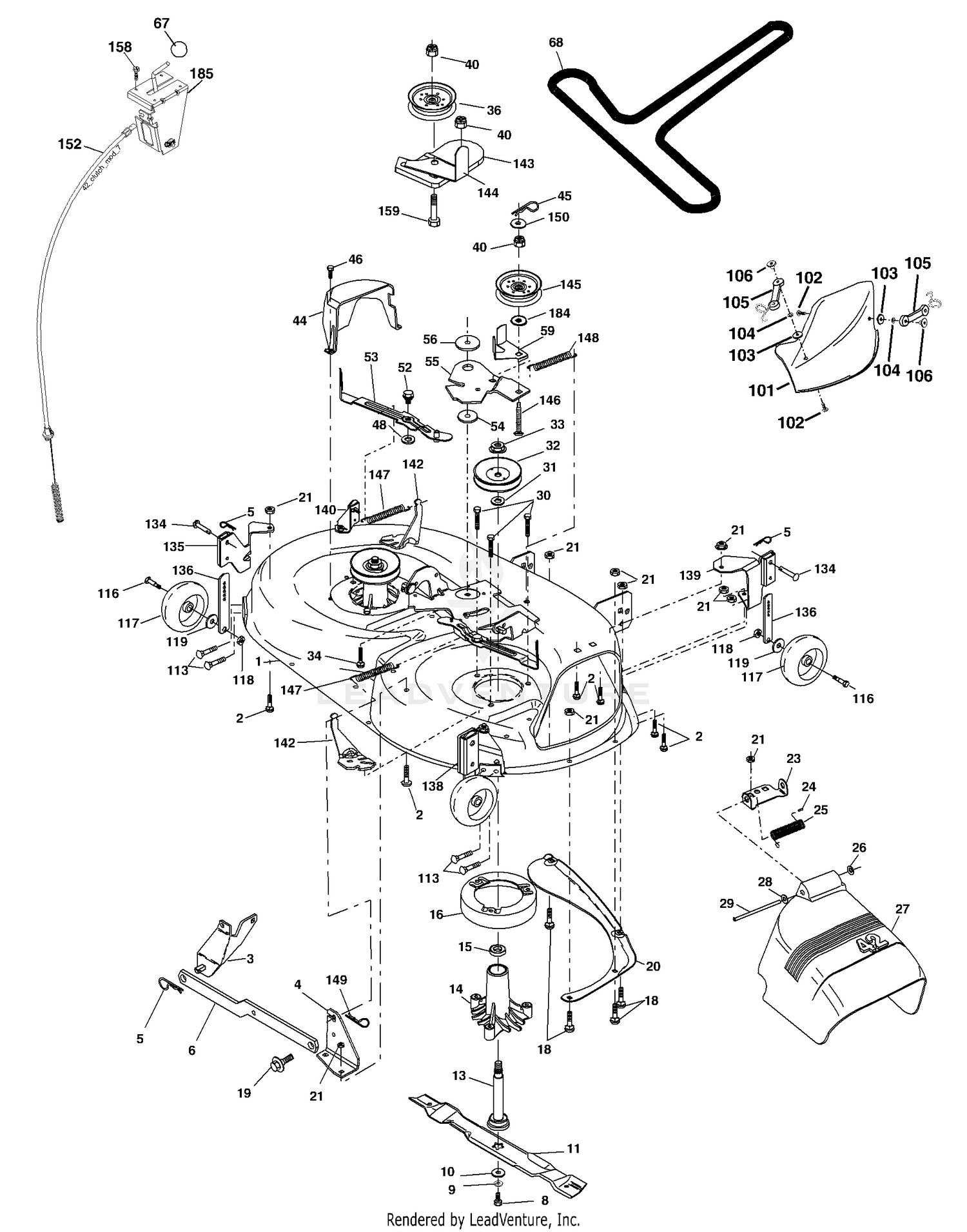

Mower Deck Assembly, 42" Price: Call Us |
| 1 |
69-8750-03 |
BRAKE ASM Price: $121.25 |
| 2 |
32152-1 |
NUT-LOCK, CONE Price: $1.49 |
| 2 |
72140506 |
Bolt Price: Call Us |
| 3 |
138017 |
Bracket Asm Fr. Sway Bar 3/42 Price: Call Us |
| 3 |
69-7700-03 |
PEDAL ASM Price: $51.40 |
| 4 |
165460 |
Bracket Asm Deck 42" Sway Bar Price: Call Us |
| 4 |
93-7629 |
PAD-FOOT, BRAKE This part replaces 49-6170. Price: $25.13 |
| 5 |
322-3 |
SCREW-HH Price: $0.79 |
| 5 |
4939M |
Retainer Spring Price: Call Us |
| 6 |
178024 |
Bar Sway Deck Price: Call Us |
| 6 |
3272-12 |
PIN-COTTER Price: $0.25 |
| 7 |
323-7 |
SCREW-HH Price: $0.65 |
| 8 |
32128-21 |
NUT-HF Price: $0.39 |
| 8 |
850857 |
Bolt 3/8-24 x 25 Gr. 8 patched Price: Call Us |
| 9 |
10030600 |
Washer, Lock Price: Call Us |
| 9 |
69-2640 |
CYLINDER-MASTER Price: $367.32 |
| 10 |
140296 |
Washer, Hardened Price: Call Us |
| 10 |
353-994 |
FITTING-BRAKE Price: $13.81 |
| 11 |
74-2530 |
FRONT BRAKE TUBE ASM Price: $70.21 |
| 12 |
218-243 |
TEE Price: $60.49 |
| 13 |
137645 |
Shaft Assembly, Mandrel, Vented Price: Call Us |
| 13 |
74-2510 |
LH BRAKE TUBE ASM Price: $86.75 |
| 14 |
128774 |
Housing, Mandrel, Vented Price: Call Us |
| 14 |
74-2520 |
RH BRAKE TUBE ASM Price: $59.09 |
| 15 |
110485X |
Bearing, Ball, Mandrel Price: Call Us |
| 15 |
69-9340 |
SHAFT-CYLINDER, MASTER Price: $98.11 |
| 16 |
174493 |
Stripper, Mandrel Deck Price: Call Us |
| 16 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 17 |
3220-2 |
NUT-JAM Price: $0.50 |
| 18 |
282-2 |
YOKE Price: $30.04 |
| 18 |
72140505 |
Bolt, Carriage 5/16-18 x 5/8 Price: Call Us |
| 19 |
132827 |
Bolt, Shoulder Price: Call Us |
| 19 |
3234-13 |
SCREW-HHF Price: $0.77 |
| 20 |
159770 |
Baffle, Vortex Price: Call Us |
| 20 |
32149-2 |
NUT-KEPS Price: $2.39 |
| 21 |
73680500 |
Nut Price: Call Us |
| 21 |
93-7039-01 |
BRACKET-BRAKE Price: $22.56 |
| 22 |
93-7037 |
SWITCH Price: $265.78 |
| 23 |
177563 |
Bracket, Deflector Mower 42" Price: Call Us |
| 23 |
21-1830 |
SPRING-EXTENSION Price: $34.62 |
| 24 |
105304X |
Cap, Sleeve 80 x 112 Blk Mower Price: Call Us |
| 24 |
283-1 |
PIN-CLEVIS Price: $1.63 |
| 25 |
123713X |
Spring, Torsion, Deflector 2 52 Price: Call Us |
| 25 |
218-242 |
SWITCH-LIGHT, STOP Price: $60.78 |
| 26 |
110452X |
Nut, Push Phos & Oil Price: Call Us |
| 26 |
32144-1 |
SCREW-TAPTITE Price: $3.19 |
| 27 |
130968X428 |
Shield, Deflector 42" Blk Price: Call Us |
| 27 |
32127-11 |
NUT-LOCK Price: $1.60 |
| 28 |
19111016 |
Washer 11/32 x 5/8 x 16 Ga. Price: Call Us |
| 29 |
131491 |
Rod, Hinge 42" 6 75 W/G Price: Call Us |
| 30 |
173984 |
Screw Thdrol Washer Head Price: Call Us |
| 31 |
187690 |
Washer, Spacer Price: Call Us |
| 32 |
153535 |
Pulley, Mandrel Price: Call Us |
| 33 |
178342 |
Nut, Toplock 9/16 Flange Price: Call Us |
| 34 |
72110612 |
Bolt Carr Sh 3/8-16 x 1-1/2 Gr. 5 Price: Call Us |
| 36 |
131494 |
Pulley, Idler, Flat Price: Call Us |
| 40 |
73900600 |
Nut Price: Call Us |
| 44 |
140088 |
Guard, Mandrel, LH Price: Call Us |
| 45 |
4497H |
Retainer Price: Call Us |
| 46 |
137729 |
Screw, Thdrol 1/4-20 x 5/8 T Price: Call Us |
| 48 |
133944 |
Washer, Hardened Price: Call Us |
| 52 |
139888 |
Bolt, Shoulder 5/16-18 unc Price: Call Us |
| 53 |
184907 |
Arm Assembly, Pad, Brake Price: Call Us |
| 54 |
178515 |
Washer, Hardened Price: Call Us |
| 55 |
155046 |
Arm, Idler Price: Call Us |
| 56 |
165723 |
Spacer, Retainer Price: Call Us |
| 59 |
141043 |
Guard TUV Idler Price: Call Us |
| 67 |
106932X |
Knob Price: Call Us |
| 68 |
144959 |
V-Belt, 42" Mower Price: Call Us |
| 101 |
136420 |
Mulcher Cover Price: Call Us |
| 102 |
71081010 |
Screw Pin Hd Phillips 10-24 x 5/8 Price: Call Us |
| 103 |
19061216 |
Washer #10 Price: Call Us |
| 104 |
10071000 |
Washer Lock #10 Price: Call Us |
| 105 |
160793 |
Latch Assembly, Bagger Price: Call Us |
| 106 |
2029J |
Nut, Weld Price: Call Us |
| 113 |
17060512 |
Screw 5/16-18 x 3/4 Price: Call Us |
| 116 |
184219 |
Bolt, Shoulder Price: Call Us |
| 117 |
133957 |
Wheel, Gauge Price: Call Us |
| 118 |
73930600 |
Nut Centerlock 3/8-16 Price: Call Us |
| 119 |
19121414 |
Washer 3/8 x 7/8 x 14 Ga. Price: Call Us |
| 134 |
156941 |
Pin Head Rivet Price: Call Us |
| 135 |
159765 |
Bracket Asm. Whl. Ga. Rear LH Price: Call Us |
| 136 |
155986 |
Bar Adjusting Ga. Whl. Price: Call Us |
| 138 |
159763 |
Bracket Asm. Whl. Ga. Rear RH Price: Call Us |
| 139 |
159767 |
Bracket Asm. Whl. Ga. Front RH Price: Call Us |
| 140 |
159768 |
Bracket Asm. Whl. Ga. Front LH Price: Call Us |
| 142 |
165890 |
Arm Spring Brake Mower Price: Call Us |
| 143 |
157109 |
Bracket Arm Idler 42" Price: Call Us |
| 144 |
158634 |
Keeper Belt 42" Clutch Cable Price: Call Us |
| 145 |
165888 |
Pulley Idler Flat Price: Call Us |
| 146 |
171977 |
Bolt Carriage Idler Price: Call Us |
| 147 |
131335 |
Spring Extension Price: Call Us |
| 148 |
169022 |
Spring Return Idler Price: Call Us |
| 149 |
165898 |
Retainer Spring Yellow Price: Call Us |
| 150 |
19091210 |
Washer 9/32 x 3/4 x 16 Ga. Price: Call Us |
| 152 |
169676 |
Clutch Cable 42" Price: Call Us |
| 158 |
17720408 |
Screw Hex Thd Cut 1/4-20 x 5/8 Price: Call Us |
| 159 |
72140614 |
Bolt Rdhd Sqn 3/8-16 unc x 1-3/4 Price: Call Us |
| 184 |
19131410 |
Washer 13/32 x 7/8 x 10 Ga. Price: Call Us |
| 185 |
188234 |
Head Asm. Cable Clutch Price: Call Us |
