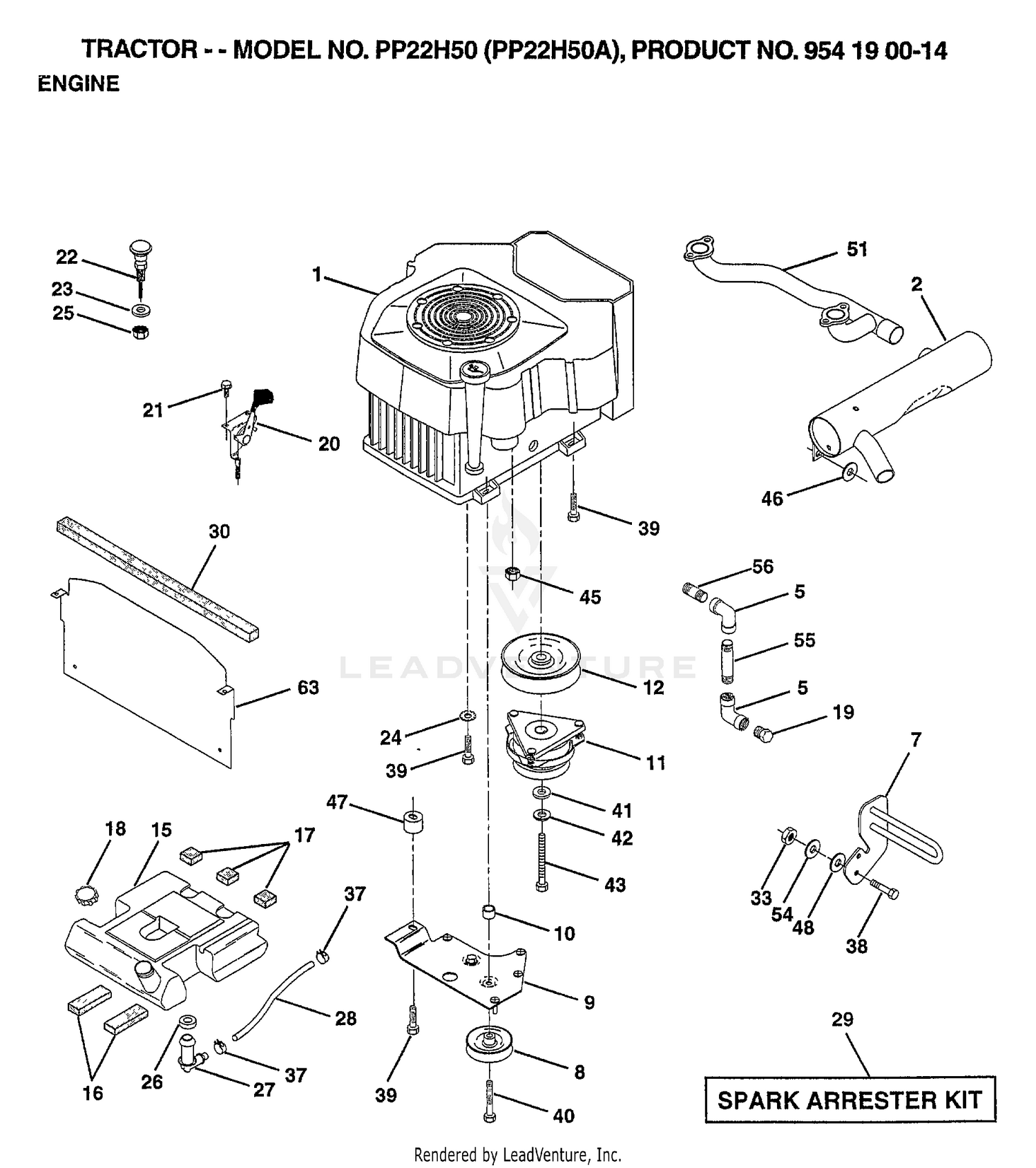

| Ref | Part Number | Description |
|---|
| 1 |
98-7707 |
PULLEY-ALTERNATOR Price: $64.31 |
| 1 |
CV22S |
ENGINE, KOHLER Price: Call Us |
| 2 |
152947 |
MUFFLER ASM. Price: Call Us |
| 2 |
98-7708 |
NUT Price: $7.76 |
| 3 |
98-7709 |
COLLAR Price: $8.79 |
| 4 |
107-0136 |
ROTOR ASM This part replaces 98-7710. Price: $268.62 |
| 5 |
13200300 |
ELBOW Price: Call Us |
| 5 |
98-7711 |
COVER-BEARING Price: $7.32 |
| 6 |
98-7712 |
BEARING-BALL Price: $31.09 |
| 7 |
151396 |
GUARD.MUFFLER.ASM Price: Call Us |
| 7 |
98-7713 |
WASHER-THRUST Price: $4.49 |
| 8 |
121361X |
SUB= 139123 Price: Call Us |
| 8 |
98-7714 |
FRAME-END, DRIVE Price: $311.88 |
| 9 |
150828 |
KEEPER ASM BELT Price: Call Us |
| 9 |
98-7715 |
PLATE-RETAINER Price: $9.38 |
| 10 |
105432X |
BUSHING. Price: Call Us |
| 10 |
98-7716 |
SCREW-HEAD, ROUND Price: $0.91 |
| 11 |
140923 |
SUB= 150283 Price: Call Us |
| 11 |
98-7717 |
BOLT-THROUGH Price: $9.75 |
| 12 |
143996 |
PULLEY.ENG.CLUTCH Price: Call Us |
| 12 |
98-7718 |
BEARING-BALL Price: $34.82 |
| 13 |
98-7719 |
FRAME-END Price: $88.65 |
| 14 |
98-7720 |
COVER-END Price: $39.58 |
| 15 |
151346 |
TANK FUEL REAR Price: Call Us |
| 15 |
98-7721 |
RECTIFIER ASM Price: $486.45 |
| 16 |
109227X |
PAD IDLER TI Price: Call Us |
| 16 |
98-7722 |
BUSHING-INSULATION Price: $28.44 |
| 17 |
106082X |
PAD-SPACER LT Price: Call Us |
| 17 |
98-7723 |
HOLDER-BRUSH Price: $52.72 |
| 18 |
140527 |
CAP ASM FUEL Price: Call Us |
| 18 |
98-7724 |
BRUSH Price: $12.41 |
| 19 |
13290300 |
PLUG T Price: Call Us |
| 19 |
98-7725 |
SPRING-BRUSH Price: $4.32 |
| 20 |
132747 |
SUB= 532132748 Price: Call Us |
| 20 |
98-7726 |
SCREW-HEAD, ROUND Price: $0.42 |
| 21 |
17720410 |
SCREW LT Price: Call Us |
| 21 |
98-7727 |
SCREW-HEAD, ROUND Price: $0.94 |
| 22 |
132781 |
CHOKE CONTROL Price: Call Us |
| 22 |
98-7728 |
SCREW-HEAD, ROUND Price: $0.70 |
| 23 |
19131316 |
WASHER Price: Call Us |
| 23 |
98-7729 |
BOLT Price: $2.35 |
| 24 |
11050600 |
LOCKWASHER Price: Call Us |
| 24 |
98-7730 |
NUT Price: $1.31 |
| 25 |
98-7731 |
BOLT Price: $3.94 |
| 26 |
3645J |
BUSHING OUTLET T Price: Call Us |
| 26 |
98-7732 |
NUT Price: $1.45 |
| 27 |
139277 |
STEM.TANK.FUEL Price: Call Us |
| 28 |
7834R |
SUB= 8542R Price: Call Us |
| 29 |
132920 |
SPARK ARREST KIT Price: Call Us |
| 30 |
105037X |
FOAM-STRIP LT Price: Call Us |
| 33 |
73800600 |
NUT Price: Call Us |
| 37 |
123487X |
HOSE CLAMP Price: Call Us |
| 39 |
17490636 |
SCREW.3/8-16X2.25 Price: Call Us |
| 40 |
17490664 |
SCREW.TT.3/8-16X4 Price: Call Us |
| 41 |
126197X |
WASHER Price: Call Us |
| 42 |
10040700 |
LOCKWASHER Price: Call Us |
| 43 |
150280 |
BOLT.7/16-20X4.25 Price: Call Us |
| 45 |
128861 |
NUT Price: Call Us |
| 46 |
19131616 |
WASHER HYT Price: Call Us |
| 47 |
142040 |
SPACER.ENGINE Price: Call Us |
| 48 |
19132007 |
WASHER T Price: Call Us |
| 51 |
152946 |
PIPE CROSSOVER Price: Call Us |
| 54 |
19131414 |
WASHER Price: Call Us |
| 55 |
13090336 |
SUB= 13280336 Price: Call Us |
| 56 |
13090308 |
NIPPLE.PIPE Price: Call Us |
