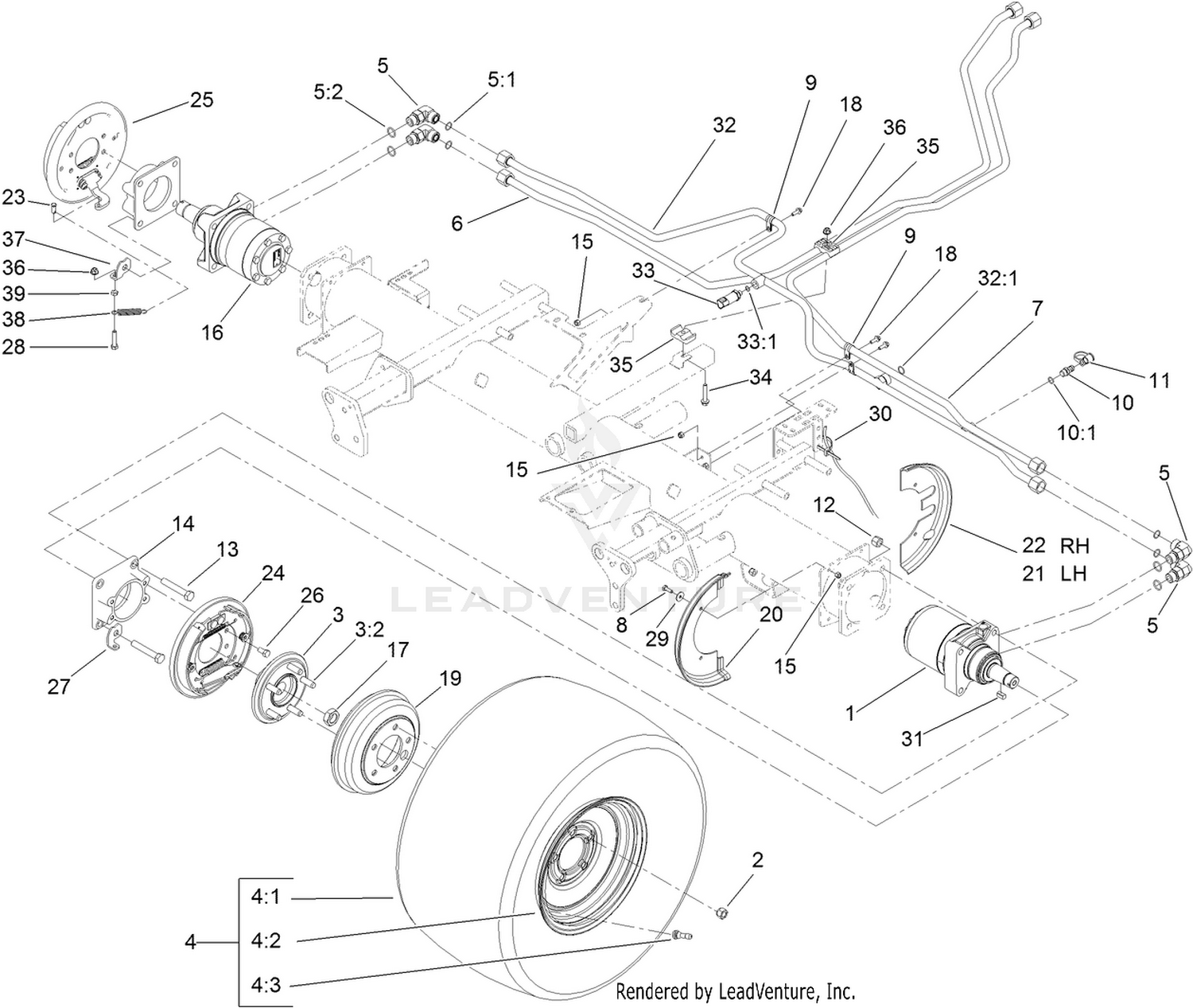

| Ref | Part Number | Description |
|---|
| 1 |
133-2935 |
HYDRAULIC MOTOR ASM This part replaces 120-6264. Price: $1,293.20 |
| 2 |
139-2564 |
NUT-LUG This part replaces 242-50. Price: $0.99 |
| 3 |
121-5631 |
HUB ASM This part replaces 120-6255. Price: $156.48 |
| 4 |
136-7963 |
TIRE ASM This part replaces 117-5194. Price: $455.76 |
| 5 |
340-17 |
FITTING-ELBOW, 90 DEG Price: $42.29 |
| 6 |
114-0425 |
HYDRAULIC TUBE ASM Price: $172.90 |
| 7 |
114-0424 |
HYDRAULIC TUBE ASM Price: $174.00 |
| 8 |
321-4 |
SCREW-HH Price: $0.99 |
| 9 |
2412-134 |
CLAMP-R Price: $5.79 |
| 10 |
59-7410 |
FITTING-DIAGNOSTIC Price: $36.39 |
| 11 |
354-79 |
CAP-DUST Price: $7.81 |
| 12 |
3296-23 |
NUT-LOCK, NI Price: $0.52 |
| 13 |
325-12 |
SCREW-HH Price: $2.27 |
| 14 |
147-3594 |
ADAPTER-BRAKE This part replaces 120-6253-03. Price: $47.56 |
| 15 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 16 |
133-2934 |
HYDRAULIC MOTOR ASM This part replaces 120-6265. Price: $1,293.20 |
| 17 |
117-3290 |
NUT-HEX Price: $32.02 |
| 18 |
3234-4 |
SCREW-HHF Price: $0.50 |
| 19 |
114-8864 |
DRUM-BRAKE Price: $248.55 |
| 20 |
127-2741 |
SHIELD-WHEEL, FRONT This part replaces 110-0950. Price: $9.99 |
| 21 |
127-2742 |
SHIELD-WHEEL, REAR This part replaces 110-0951. Price: $8.07 |
| 22 |
127-2742 |
SHIELD-WHEEL, REAR This part replaces 110-8878. Price: $8.07 |
| 23 |
283-62 |
PIN-CLEVIS Price: $0.61 |
| 24 |
139-5952 |
LH BRAKE ASM This part replaces 120-6261. Price: $449.41 |
| 25 |
139-5951 |
RH BRAKE ASM This part replaces 120-6260. Price: $449.41 |
| 26 |
323-4 |
SCREW-HH Price: $1.02 |
| 27 |
120-6267 |
CLIP-SPRING, LH Price: $6.99 |
| 28 |
322-7 |
SCREW-HH Price: $0.89 |
| 29 |
3256-67 |
WASHER Price: $0.49 |
| 30 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 31 |
117-5198 |
KEY-SQUARE Price: $11.44 |
| 32 |
114-0389 |
HYDRAULIC TUBE ASM Price: $274.53 |
| 33 |
119-0011 |
PRESSURE TRANSDUCER ASM Price: $341.50 |
| 34 |
94-5780 |
SCREW-HWH Price: $7.49 |
| 35 |
56-7971 |
CLAMP-TUBE Price: $17.90 |
| 36 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 37 |
120-6266 |
CLIP-SPRING, RH Price: $6.99 |
| 38 |
87-4020 |
SPRING-EXTENSION Price: $17.01 |
