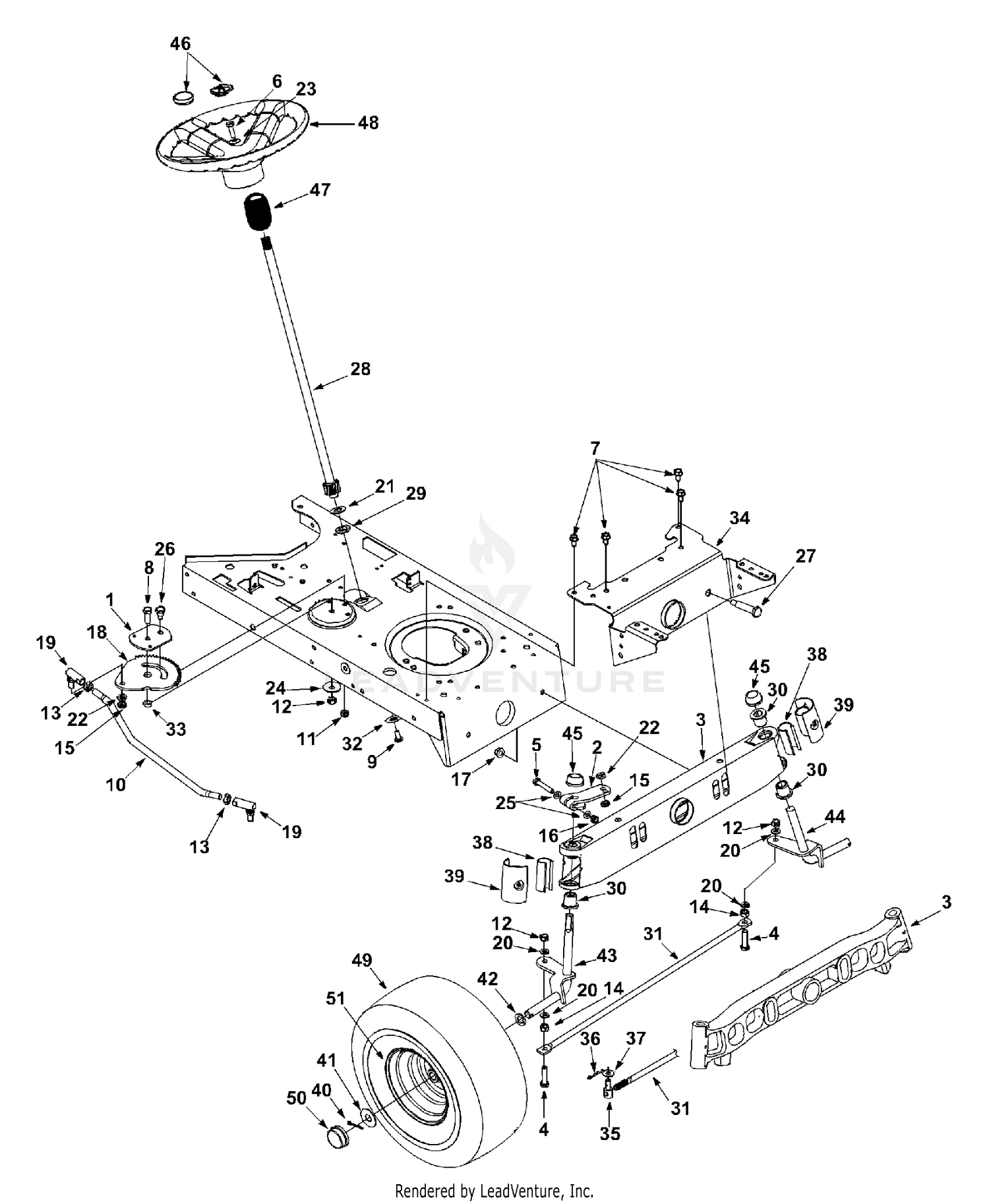

| Ref | Part Number | Description |
|---|
| 1 |
783P08577A |
STABILIZER PLATE This part replaces 17198A. Price: $6.48 |
| 2 |
983-0055-0637 |
Steering Arm Front Axle This part replaces 16481A. Price: $41.85 |
| 3 |
683-0128B |
Pivot Bar This part replaces 683-0128A. Price: $79.28 |
| 4 |
710-0459A |
Hex Bolt 3/8-24 x 1.5" Lg. (Gr. 5) Price: $6.50 |
| 5 |
710-0593 |
HEX SCREW 5/16-24 x 2.25 Not Available Price: |
| 6 |
710-0643 |
Hex Bolt 5/16-18 x 1" Lg. Price: $5.99 |
| 7 |
710-0726 |
Hex Wash. Hd. Self-Tap Scr. Price: $3.82 |
| 8 |
710-1039 |
Hex Hd. Cap Scr. 3/8-24 x 1.0 Gr. 5 Price: $4.02 |
| 9 |
710-1309 |
Hex Patch Bolt 5/16-18 x .62" Price: $3.86 |
| 10 |
911-1107 |
Steering Drag Link Not Available This part replaces 711-1107. Price: |
| 11 |
912-0158 |
Hex Cent. L.-Nut 5/16-18 Thd. This part replaces 712-0158. Price: $2.83 |
| 12 |
712-0214 |
Hex Cent. L-Nut 3/8-24 Thd. Price: $5.94 |
| 13 |
912-0240 |
Hex Jam Nut 7/16-20 This part replaces 712-0240. Price: $3.90 |
| 14 |
712-0241 |
Hex Nut 3/8-24 Gr.5 Price: $3.86 |
| 15 |
712-0262 |
Hex Jam Nut 3/8-24 Thd. Price: $3.90 |
| 16 |
712-0411 |
Hex L-Nut 5/16-24 Thd. Price: $3.71 |
| 17 |
912-0431 |
Flange Lock Nut 3/8-16 This part replaces 7120431. Price: $4.29 |
| 18 |
717-0622C |
Steering Gear Segment Not Available This part replaces 717-0622A. Price: |
| 19 |
923-0448A |
Ball Joints This part replaces 723-0448A. Price: $22.55 |
| 20 |
736-0169 |
L-Wash. 3.8" I.D. Price: $3.33 |
| 21 |
736-0187 |
Fl-Wash. (Hardened) Price: $4.02 |
| 22 |
736-0217 |
L-Wash. Price: $3.86 |
| 23 |
736-0242 |
Bell. Wash. .340 I.D. x .872 O.D. Price: $3.75 |
| 24 |
936-0356 |
BELL WASHER Not Available This part replaces 736-0356. Price: |
| 25 |
736-3081 |
Fl-Wash. .320 x .600 x 060 Price: $3.08 |
| 26 |
938-0141 |
SHOULDER SCREW .437 DIA x .350 Not Available This part replaces 738-0141. Price: |
| 27 |
738-0527 |
Shoulder Bolt Price: $7.90 |
| 28 |
738-0919B |
Steering Shaft This part replaces 738-0919. Price: $51.87 |
| 29 |
941-0656A |
BRG:HEX FLNG 5/8 This part replaces 741-0656. Price: $4.69 |
| 30 |
941-0659 |
Hex Flg. Brg. .632 I.D. This part replaces 741-0659. Price: $4.80 |
| 31 |
747-0861-0637 |
Tie Rod (Non-Adjustable) This part replaces 747-0861. Price: $27.01 |
| 32 |
948-0389 |
Cap, 1.25 x .16 This part replaces 748-0389. Price: $4.40 |
| 33 |
950-0535 |
Spacer.380" I.D. x .625" O.D. x .227 This part replaces 750-0535. Price: $3.90 |
| 34 |
783-0041C |
PIVOT BAR BRACKET Not Available This part replaces 783-0041B. Price: |
| 35 |
711-1661 |
FERRULE 3/8-24 x .375 Not Available Price: |
| 36 |
714-0470 |
Cotter Pin 1/8 Price: $3.90 |
| 37 |
736-0267 |
FLAT WASHER .38X.88 Price: $3.90 |
| 38 |
731-1649 |
STANDARD AXLE CAP Not Available Price: |
| 40 |
714-0470 |
Cotter Pin Price: $3.90 |
| 41 |
736-0285 |
Fl-Wash. .635 I.D. x 1.589 O.D. Price: $3.89 |
| 42 |
736-0162 |
Fl-Wash. .641 I.D. x 1.0 O.D. Price: $3.86 |
| 45 |
726-0214 |
Push Cap Price: $9.11 |
| 46 |
931-0220 |
Steering Wheel Cap This part replaces 731-0220. Price: $7.93 |
| 47 |
931-0954 |
STEERING BELLOW 9" Not Available This part replaces 731-0954. Price: |
| 50 |
931-0484A |
Hub Cap This part replaces 731-0484A. Price: $5.98 |
