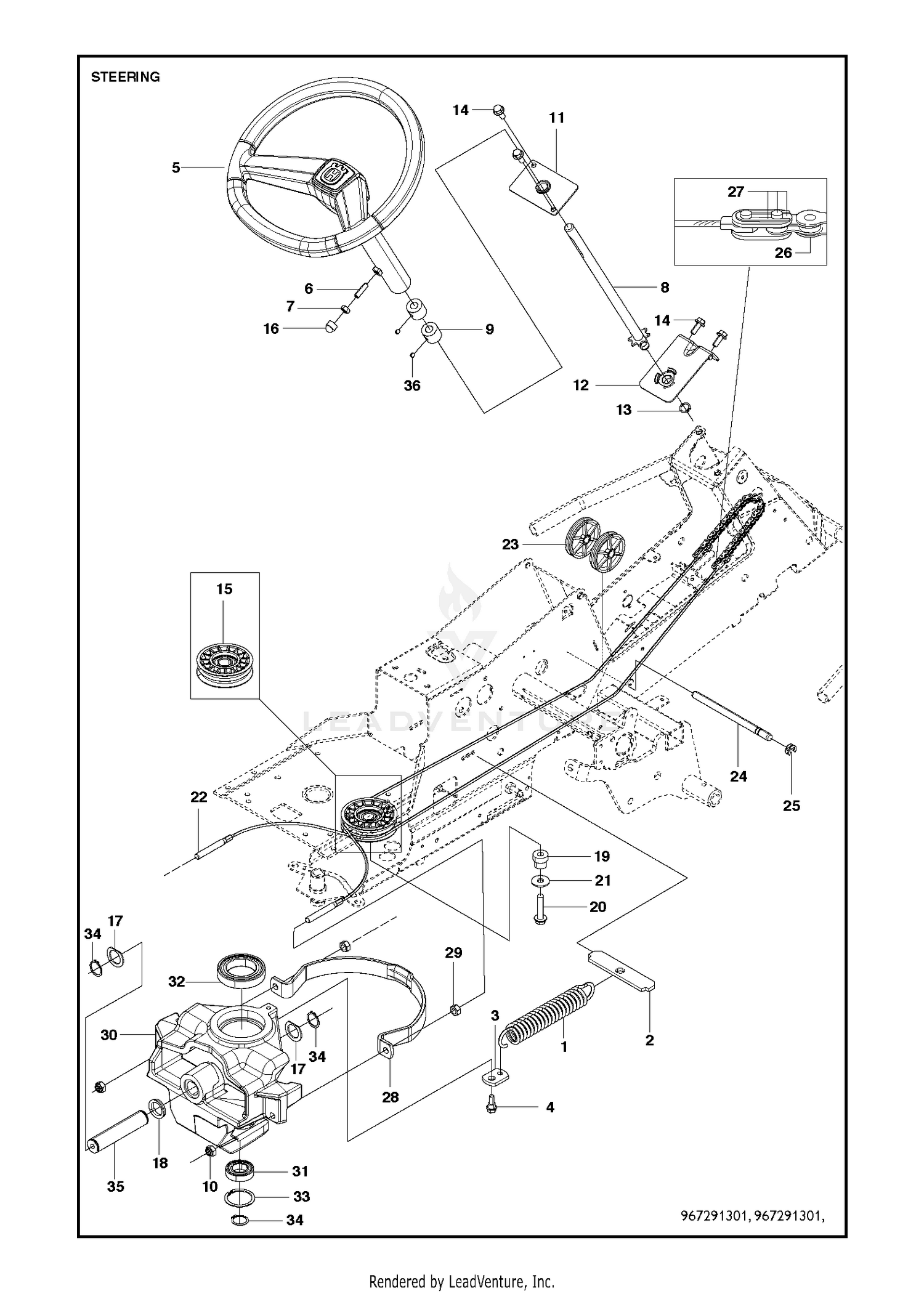

STEERING 2
Parts (47)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 506671901 | SPRING Price: $22.99 |
| 2 | 590735401 | Brackets This part replaces 506576301. Price: $12.99 |
| 3 | 506670801 | CONNECTOR Price: $6.99 |
| 4 | 506597401 | BOLT Price: $5.99 |
| 5 | 577960402 | STEERING WHEEL Price: $64.99 |
| 6 | 728745505 | SCREW Price: $3.99 |
| 7 | 731231801 | NUT Price: $3.99 |
| 8 | 583899901 | Steering Price: $49.99 |
| 9 | 587080901 | DRIVER STEERING WHEEL This part replaces 506863401. Price: $7.99 |
| 10 | 130-1257 | INTAKE MANIFOLD ASM Price: $48.93 |
| 10 | 732212001 | NUT This part replaces 732212051. Price: $3.99 |
| 11 | 584155601 | BRACKET STEERING ASSY WITH BUS Price: $14.99 |
| 13 | 735311700 | RETAINING RING SGA 15 Price: $2.99 |
| 14 | 506570104 | BOLT Price: $4.99 |
| 15 | 576492501 | PULLEY Price: $44.99 |
| 16 | 544433201 | PROTECTIVE COVER Price: $3.99 |
| 17 | 506773401 | WASHER Price: $3.99 |
| 18 | 740681421 | V-RING Price: $3.99 |
| 19 | 576487301 | Price: Call Us |
| 20 | 105-3760 | GASKET-MANIFOLD, INTAKE Price: $26.16 |
| 20 | 506675403 | COLLAR SCREW Price: $2.29 |
| 21 | 734117441 | WASHER Price: $3.99 |
| 22 | 501604804 | WIRE ASSY This part replaces 577199904. Price: $17.99 |
| 23 | 506522401 | ROLLER Price: $9.99 |
| 24 | 506539404 | SHAFT Price: $14.99 |
| 25 | 735311420 | RETAINING RING Price: $2.99 |
| 26 | 506554601 | STEERING CHAIN Price: $17.99 |
| 27 | 506554701 | LINK Price: $4.99 |
| 28 | 544427301 | WIRE GUIDE Price: $29.99 |
| 29 | 731232001 | Nut Price: $3.99 |
| 30 | 127-0403 | BOLT-FLANGE Price: $3.85 |
| 30 | 577659301 | SPINDLE Price: $159.99 |
| 31 | 738210504 | Ball Bearing 6005-2rs Price: $28.99 |
| 32 | 738211004 | BALL BEARING 6010 2RS1 Price: $39.99 |
| 33 | 735314010 | CIRCLIP SGH 47 Price: $4.99 |
| 34 | 735312600 | RETAINING RING SGA 25 Price: $2.99 |
| 35 | 506985901 | SHAFT Price: $44.99 |
| 36 | 728844305 | Screw Price: $1.99 |
| 40 | 98-9353 | BOLT Price: $0.76 |
| 50 | 125-9063 | BOLT-SEMS Price: $1.31 |
| 60 | 130-1268 | MANIFOLD-EXHAUST Price: $165.19 |
| 70 | 105-3765 | GASKET-MANIFOLD, EXHAUST Price: $19.63 |
| 80 | 98-9588 | STUD Price: $1.87 |
| 90 | 98-9665 | NUT Price: $2.17 |
| 100 | 99-8343 | GASKET-MUFFLER Price: $14.99 |
| 110 | 130-1284 | PIPE-INLET Price: $52.33 |
| 120 | 130-1196 | BAND-PIPE Price: $4.15 |
