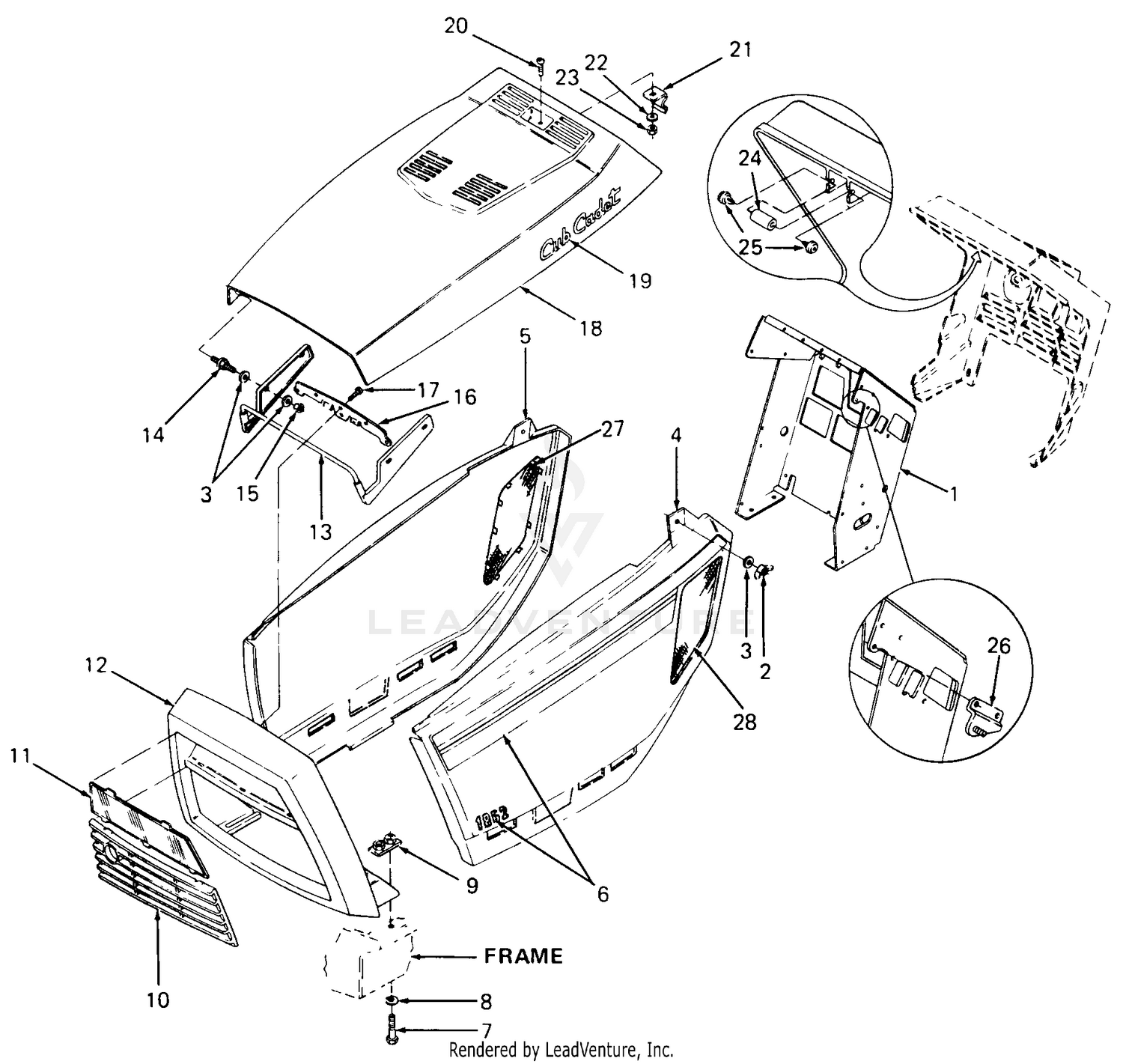

| Ref | Part Number | Description |
|---|
| 1 |
323-7 |
SCREW-HH Price: $0.65 |
| 1 |
587537401 |
PULLEY.ENGINE This part replaces 539114530. Price: $22.99 |
| 1 |
603-0023 |
PEDESTAL A Not Available Price: |
| 2 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 2 |
539113977 |
CLUTCH, 90 FT/LBS Price: $279.99 |
| 2 |
712-3044 |
NUT, 1/4 WING Not Available Price: |
| 3 |
32146-20 |
NUT-HEX Price: $3.23 |
| 3 |
539112249 |
CLUTCH TIE DOWN Price: $44.99 |
| 3 |
736-0463 |
Washer, Flat, .251 X .62 X .052 Thk Price: $3.91 |
| 4 |
539113987 |
SPACER Price: $27.99 |
| 4 |
931-3115A |
SIDE PANEL (LH) Not Available This part replaces 731-3115. Price: |
| 4 |
98-8172-03 |
SUPPORT-AXLE Price: $656.24 |
| 5 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 5 |
539114387 |
SPACER Price: $7.99 |
| 5 |
931-3116 |
SIDE-PANEL (RH) Not Available This part replaces 731-3116. Price: |
| 6 |
237-165 |
GROMMET Price: $15.70 |
| 6 |
581332804 |
CLUTCH BOLT7/16-20X3.5 GR524HR This part replaces 539976944. Price: $6.99 |
| 6 |
759-3633 |
KIT-DECAL Not Available Price: |
| 7 |
532126197 |
WASHER This part replaces 539110064. Price: $6.99 |
| 7 |
710-0376 |
Screw, 5/16-18 X 1 Znd Hex Hd Cap This part replaces 710-3002. Price: $3.66 |
| 7 |
86-2820 |
Assembly-Wheel (Incl. Ref. #29-31) Price: Call Us |
| 8 |
32121-32 |
PIN-ROLL Price: $1.34 |
| 8 |
596238901 |
Washers This part replaces 539990247. Price: $2.99 |
| 8 |
936-0119 |
Washer, Lock, 5/16 This part replaces 736-0119. Price: $4.29 |
| 9 |
140-6101 |
PIN ASM-AXLE PIVOT This part replaces 98-8173-03. Price: $42.42 |
| 9 |
539101714 |
SOLENOID Price: $22.99 |
| 9 |
703-0008 |
GRILLE HOUSING RETAINER Not Available Price: |
| 10 |
539102759 |
INSULATOR Price: $3.99 |
| 10 |
71-4540 |
WASHER-THRUST Price: $1.97 |
| 10 |
731-3099 |
GRILLE INSERT Not Available Price: |
| 11 |
302-2 |
FITTING-GREASE Price: $1.89 |
| 11 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 539108120. Price: $1.99 |
| 11 |
931-3102 |
GRILLE LENS This part replaces 731-3102. Price: $36.19 |
| 12 |
539111786 |
RHSSNB, 1/4-20X5/8 Price: $1.99 |
| 12 |
759-3773 |
GRILLE-ASSEMBLY RD HL Not Available This part replaces 759-3527. Price: |
| 12 |
99-8431 |
WASHER-THRUST Price: $4.63 |
| 13 |
532428287 |
VALUE.OIL.DRAIN This part replaces 539110093. Price: $14.99 |
| 13 |
703-1829-0499 |
HOOD HINGE ASSEMBLY (CUB BEIGE) Not Available This part replaces 703-1829. Price: |
| 14 |
592807801 |
BOLT CUP HEAD SQUARE NECK 1/4- This part replaces 539109800. Price: $2.99 |
| 14 |
710-3214 |
STUD-DOUBLE ENDED Not Available Price: |
| 15 |
539107765 |
HOSE, FUEL .25 ID X 26" This part replaces 539110424. Price: $6.99 |
| 15 |
912-0107 |
Hex L-Nut 1/4-20 Thd This part replaces 712-0107. Price: $4.06 |
| 16 |
587044805 |
HOSE.1/4".LOW.PERM.FUEL.LN.5" This part replaces 539110425. Price: $2.99 |
| 16 |
703-1856 |
PLATE, HINGE Not Available Price: |
| 17 |
539121325 |
MUFFLER Price: $99.99 |
| 17 |
710-0748 |
SCREW #12-14 x .500 Not Available Price: |
| 18 |
539912222 |
HOSE CLAMP Price: $2.99 |
| 18 |
931-3089B |
HOOD Not Available This part replaces 731-3089A. Price: |
| 19 |
539976856 |
TIE, PLASTIC Price: $4.99 |
| 19 |
979-3536 |
LABEL-CCC SCRIPT Not Available This part replaces 779-3536. Price: |
| 20 |
596582201 |
Bolts This part replaces 539976935. Price: $2.99 |
| 20 |
710-3217 |
Screw, Truss Hd, #8-32 X .38 Lg Price: $5.94 |
| 21 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 539976978. Price: $1.99 |
| 21 |
732-3063A |
Clip, Hood Latch Price: Call Us |
| 22 |
539990053 |
WASHER 1/4 INT TOOTH Price: $2.99 |
| 22 |
736-0310 |
Washer, Flat, .16 X .38 X .045 Thk Price: $3.50 |
| 23 |
596583702 |
Nuts This part replaces 539990717. Price: $2.99 |
| 23 |
912-3072 |
HEX NUT KEPS #8-32 Not Available This part replaces 712-3072. Price: |
| 24 |
911-3296 |
LATCH PIN Not Available This part replaces 711-3296. Price: |
| 25 |
710-0286 |
Screw, Phillips Hd Truss Mach, 1/4-20 X .50 Lg Price: $3.86 |
| 26 |
703-1955 |
BRACKET ASSY, LH PANEL MTG Not Available Price: |
| 27 |
703-2162-0499 |
PANEL SCREEN (RH) (CUB BEIGE) Not Available This part replaces 703-2162. Price: |
