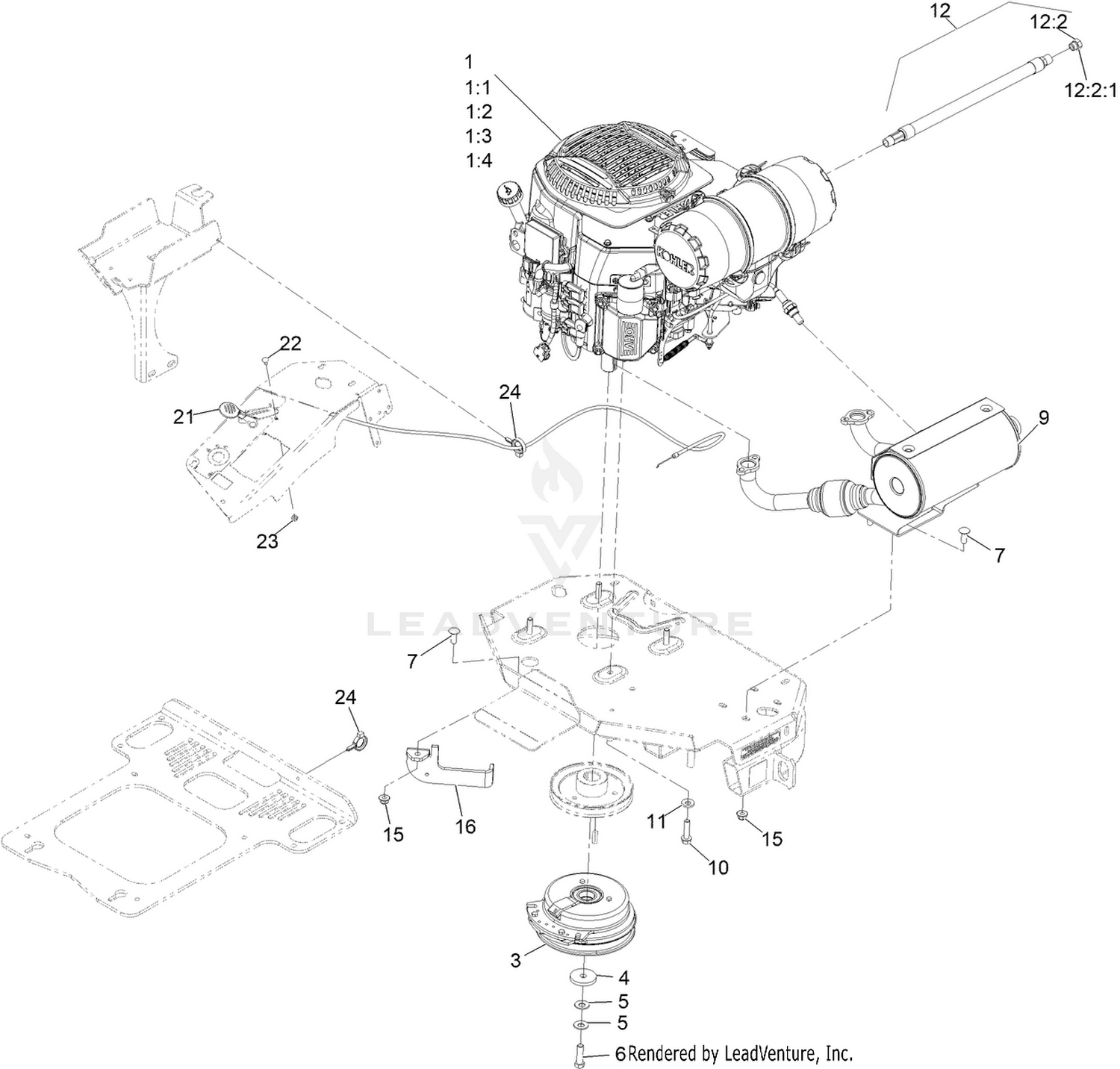

Engine Assembly
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 3 | 116-1620 | CLUTCH KIT Price: $333.99 |
| 4 | 109-6919 | WASHER-CLUTCH Price: $7.19 |
| 5 | 1-603610 | WASHER-SPRING Price: $4.79 |
| 7 | 3231-22 | SCREW-CARR Price: $3.09 |
| 9 | 142-6858 | KIT,MUFFLER Price: $415.99 |
| 10 | 32144-102 | SCREW-HWH Price: $3.19 |
| 11 | 98-5975 | WASHER-BELLEVILLE Price: $3.09 |
| 15 | 104-8301 | NUT-HF, NI Price: $1.19 |
| 16 | 146-4184-01 | Bracket-Clutch Anchor Price: $11.99 |
| 21 | 116-0969 | ASM,THROTTLE CABLE Price: $45.99 |
| 22 | 1-807513 | BOLT-CARR Price: $2.29 |
| 23 | 3296-2 | NUT-LOCK, NI Price: $1.89 |
