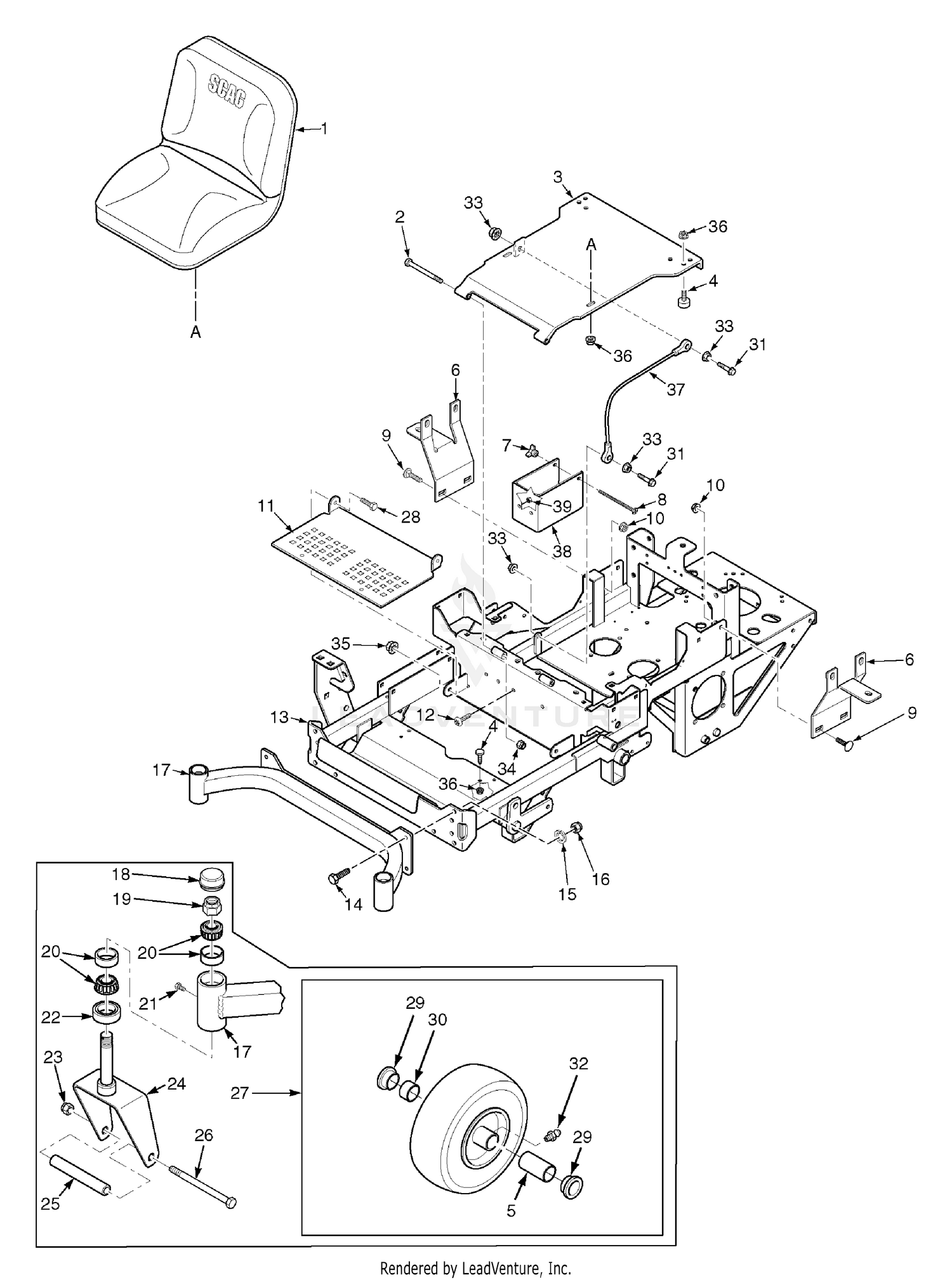

| Ref | Part Number | Description |
|---|
| 1 |
483116 |
Seat Assembly Price: Call Us |
| 2 |
04001-51 |
Bolt, Hex Head 3/8-16 x 3-3/4" Price: Call Us |
| 3 |
451837 |
SEAT MTG BASE WLMT, SZC This part replaces 451732. Price: Call Us |
| 4 |
481284 |
Bumper, Rubber Price: Call Us |
| 5 |
481769 |
Roller Bearing, .625 x 3-1/4" Price: Call Us |
| 6 |
424200 |
Bracket, Fuel Tank Mounting Price: Call Us |
| 7 |
04029-01 |
Wing Nut, 1/4-20 Price: Call Us |
| 8 |
04003-39 |
Bolt, Carriage 1/4-20 x 6" Price: Call Us |
| 9 |
04003-12 |
Bolt, Carriage 5/16-18 x 3/4" Price: Call Us |
| 10 |
04019-03 |
Nut, Serr. Flange 5/16-18 Price: Call Us |
| 11 |
423557 |
Foot Plate Price: Call Us |
| 12 |
04104-01 |
Bolt, Torx 3/8-16 x 1" Price: Call Us |
| 13 |
461934 |
MAINFRAME ASSY W/ DECALS, SZC This part replaces 461835. Price: Call Us |
| 14 |
04001-28 |
Bolt, Hex Head 7/16-14 x 1-1/4" Price: Call Us |
| 15 |
04030-05 |
Lockwasher, 7/16” Spring Price: Call Us |
| 16 |
04021-11 |
Nut, Elastic Stop 7/16-14 Price: Call Us |
| 17 |
451728 |
Caster Support Weldment - 36" Price: Call Us |
| 18 |
481559 |
Cap, Grease Price: Call Us |
| 19 |
04021-20 |
Nut, Elastic Stop 1.0"-14 Price: Call Us |
| 20 |
48668 |
Bearing Set Price: Call Us |
| 21 |
482028-01 |
Plug, 1/4-28 Self Tap Price: Call Us |
| 22 |
481025 |
Seal, 2" O.D. x 1.625 I.D. Price: Call Us |
| 23 |
04021-07 |
Nut, Elastic Stop 1/2-13 Price: Call Us |
| 24 |
452034 |
Caster Yoke Weldment This part replaces 451727. Price: Call Us |
| 25 |
43511 |
Sleeve, Caster Wheel Price: Call Us |
| 26 |
04001-80 |
Bolt, Hex Head 1/2-13 x 6-1/2" Price: Call Us |
| 28 |
04001-19 |
Bolt, Hex Head 3/8-16 x 1" Price: Call Us |
| 29 |
481770 |
Bearing, Oilite Price: Call Us |
| 30 |
481846 |
Roller Bearing, .625 x 1" Price: Call Us |
| 31 |
04001-59 |
Bolt, Hex Head 1/4-20 x 1-1/4" Price: Call Us |
| 32 |
48114-05 |
Grease Fitting, 1/4-28 Straight Price: Call Us |
| 33 |
04019-02 |
Nut, Serr. Flange 1/4-20 Price: Call Us |
| 34 |
04021-10 |
Nut, Elastic Stop 5/16-18 Price: Call Us |
| 35 |
04021-09 |
Nut, Elastic Stop 3/8-16 Price: Call Us |
| 36 |
04019-03 |
Nut, Serr. Flange 5/16-18 Price: Call Us |
| 37 |
48566 |
Cable, Seat Stop Price: Call Us |
| 38 |
424058 |
Battery Box Price: Call Us |
| 451729 |
Caster |
Support Weldment -42" Price: Call Us 451729 |
