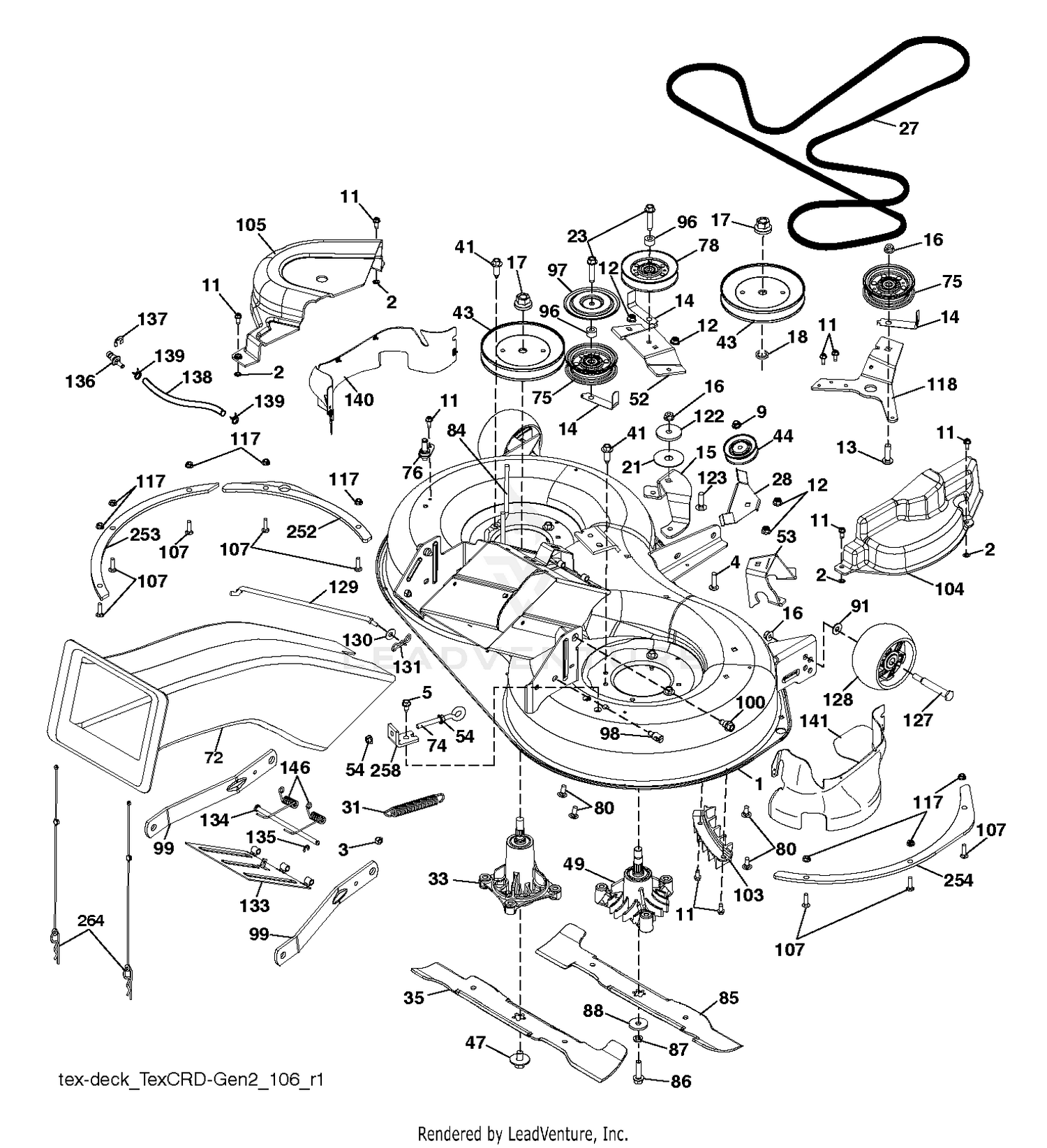

| Ref | Part Number | Description |
|---|
| 1 |
547660201 |
KIT.SVC.DECK.WLD.97.EZ_MUL.428 This part replaces 597000801. Price: $449.99 |
| 2 |
532423062 |
PALNUT 1/4 Price: $2.99 |
| 4 |
872110510 |
BOLT.CARRIAGE.5/16-18 Price: $4.99 |
| 5 |
817000510 |
BOLT.5/16HEX.WHS.HD Price: $4.99 |
| 9 |
585691301 |
NUT HEX FLG NYLOCK BLK 5_16-1 Price: $5.99 |
| 11 |
532137729 |
SCREW.1/4-20X5/8 Price: $3.99 |
| 12 |
594944401 |
NUT HEXAGON FLANGE 5/16-18 ST Price: $5.99 |
| 13 |
596136101 |
GSPW Bolts Price: $2.99 |
| 14 |
597024901 |
Keepers This part replaces 532156085. Price: $3.99 |
| 15 |
592854702 |
BRACKET CRD IDLER ARM MOUNT BL Price: $22.99 |
| 16 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 17 |
596134801 |
Nuts Price: $1.00 |
| 18 |
532187690 |
WASHER.SPACER.MANDREL Price: $3.99 |
| 21 |
532178515 |
WASHER Price: $5.99 |
| 23 |
599972501 |
BOLT This part replaces 596564003. Price: $2.99 |
| 27 |
599249201 |
Belts Price: $32.99 |
| 28 |
592855602 |
KEEPER 97 CRD ANGLED IDLER KEE Price: $22.99 |
| 31 |
587358401 |
SPRING.EXTN.42.FCS.TR.DECK.DRV Price: $6.99 |
| 33 |
587819701 |
KIT.MANDREL.NONGREASE.TALL Price: $49.99 |
| 35 |
532427984 |
BLADE.3N1.LH.CRD.97 Price: $49.99 |
| 41 |
584953901 |
BOLT.HEX.WASHR.HED.313-18X1.19 Price: $3.99 |
| 43 |
531170001 |
SERVICE KIT PULLEY PULLEY.MAND This part replaces 532199789. Price: $17.99 |
| 44 |
532199534 |
PULLEY.V-IDLER. Price: $32.99 |
| 47 |
532193003 |
BOLT.WASHER.ASM.7/16-2 This part replaces 584309301. Price: $6.99 |
| 49 |
532165579 |
MANDREL ASM.CRD RH 6PT STAR Price: $79.99 |
| 52 |
595098003 |
BRACKET 97 CRD CENTER V-IDLER Price: $17.99 |
| 53 |
595098103 |
BRACKET 97 CRD ANGLED V-IDLER Price: $22.99 |
| 54 |
596039201 |
GSPW Hardware Price: $2.99 |
| 72 |
581454103 |
CHUTE.SLOTTED.HOLES.TEX.CRD.II Price: $79.99 |
| 74 |
596240801 |
GSPW Bolts Price: $3.99 |
| 75 |
597025001 |
CLG Price: $22.99 |
| 80 |
595901601 |
GSPW Bolts Price: $2.99 |
| 84 |
532400140 |
BELT KEEPER.MANDREL.38"COATED Price: $39.99 |
| 85 |
532427985 |
BLADE.3N1.RH.CRD.97 Price: $49.99 |
| 86 |
583117001 |
BOLT.3/8-24X1.25GR8. LHTHRD This part replaces 532181713. Price: $3.99 |
| 87 |
596238701 |
Washers Price: $3.99 |
| 88 |
532140296 |
WASHER.BLADE Price: $5.99 |
| 91 |
596134901 |
GSPH Price: $2.99 |
| 96 |
583261101 |
SPACER.NORAM.CRD This part replaces 532400271. Price: $4.99 |
| 97 |
583119101 |
SHIELD.IDLER.MOWER.CRD. This part replaces 532182061. Price: $4.99 |
| 98 |
593824001 |
STUD.W/"D"ANTI-ROTATION Price: $3.99 |
| 99 |
529846401 |
SERVICE.KIT ARM.SUSPENSION.MOW This part replaces 532195186. Price: $14.99 |
| 100 |
532196539 |
BOLT.SHOULDER Price: $5.99 |
| 103 |
583514601 |
GUARD.FRONT.VENT.97.CRD This part replaces 532436992. Price: $6.99 |
| 104 |
592848101 |
GUARD 97CRD RH MANDREL COVER; Price: $32.99 |
| 105 |
583534001 |
LH.MANDREL.COVER.97.TEX.CRD This part replaces 532438744. Price: $24.99 |
| 107 |
592807801 |
BOLT CUP HEAD SQUARE NECK 1/4- Price: $2.99 |
| 117 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873900400. Price: $3.99 |
| 118 |
592854802 |
ARM 97 CRD IDLER ARM BLACK E-C Price: $22.99 |
| 122 |
532165723 |
SPACER.RETAINER.MOWER Price: $5.99 |
| 123 |
596987501 |
Bolts Price: $3.99 |
| 127 |
596434404 |
Bolts Price: $4.99 |
| 128 |
589527301 |
WHEEL.GAUGE.RALLY Price: $8.99 |
| 129 |
583568101 |
ROD.SWAY.97&107.CRDI&II This part replaces 532443237. Price: $17.99 |
| 130 |
596133201 |
Washers Price: $5.99 |
| 131 |
532194208 |
PIN.COTTER.5/16.BOW TI Price: $2.99 |
| 133 |
583505301 |
DOOR.MULCH This part replaces 532435538. Price: $11.99 |
| 134 |
593889501 |
Pins Price: $4.99 |
| 135 |
532437988 |
E-RING.5/16" Price: $7.99 |
| 136 |
583544201 |
WASHOUT.PORT.REMOTE.HOOKUP This part replaces 532439639. Price: $3.99 |
| 137 |
812000029 |
RING CLIP Price: $3.99 |
| 138 |
587924812 |
HOSE 3/8ID, RUBBER 12" This part replaces 532440743. Price: $2.99 |
| 139 |
596867401 |
Clamps Price: $1.99 |
| 140 |
598660801 |
GUARD.ASM.LH.CRD.FRENCH.97CM This part replaces 501579401. Price: $49.99 |
| 141 |
598660701 |
GUARD.ASM.RH.CRD.FR.97CM.SLOT This part replaces 501579301. Price: $59.99 |
| 146 |
583582001 |
SPRING.EZ.MULCH.DOOR This part replaces 532445896. Price: $2.99 |
| 252 |
585308705 |
PLATE.REINFORCEMENT.X431 Price: $9.99 |
| 253 |
585308805 |
PLATE.REINFORCEMENT.LHS.X431 Price: $5.99 |
| 254 |
585309005 |
PLATE.REINFORCEMENT.LHS.X431 Price: $11.99 |
| 258 |
592856001 |
BRACKET CRD ELEC DECK DRIVE TE Price: $8.99 |
| 264 |
589392902 |
Retainers Price: $3.99 |
