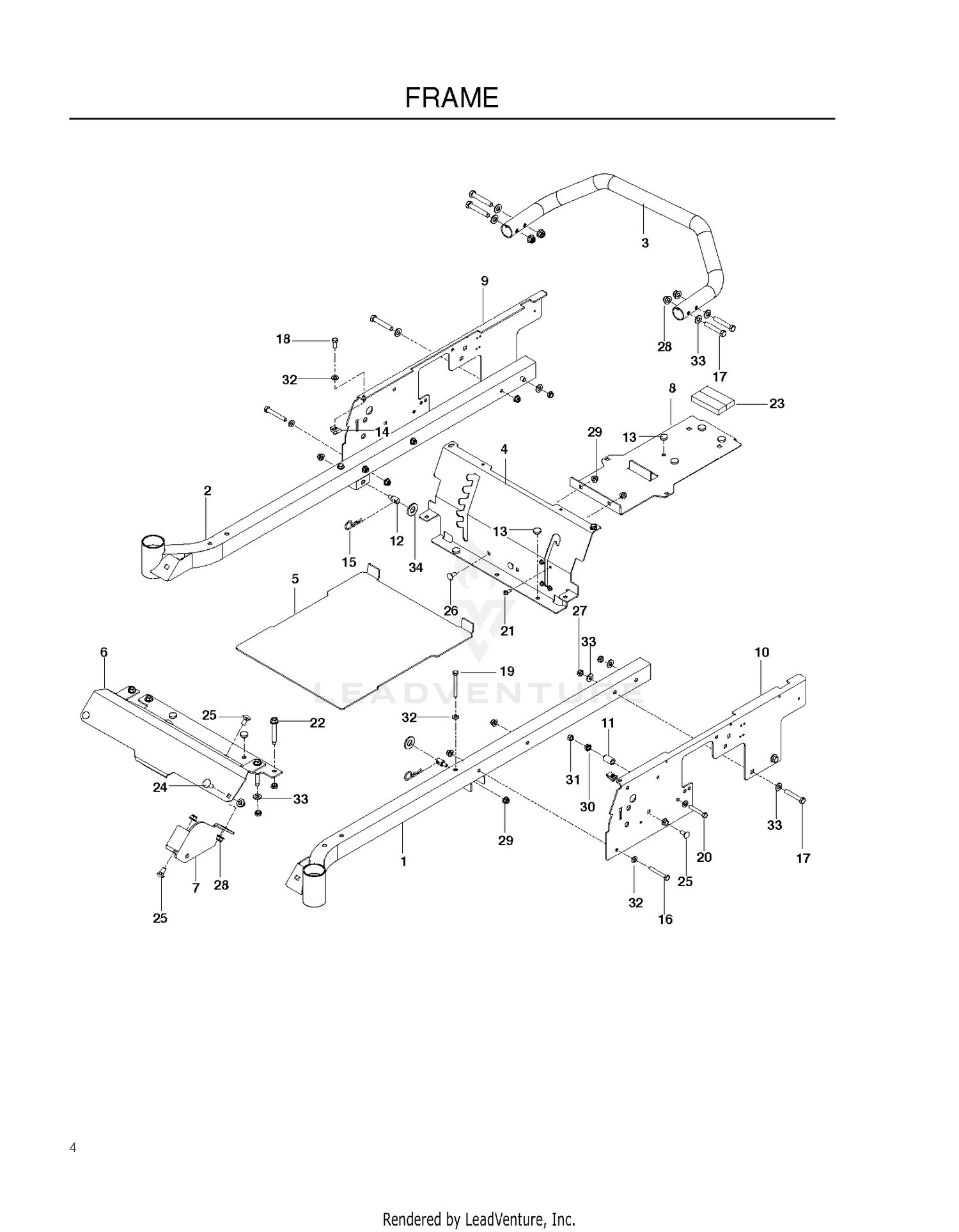

| Ref | Part Number | Description |
|---|
| 1 |
525454702 |
FRAME TUBE, LH, ORG Price: $149.99 |
| 1 |
76-1420 |
WHEEL-STEERING Price: $202.69 |
| 2 |
32121-111 |
PIN-ROLL Price: $2.39 |
| 2 |
525454902 |
FRAME TUBE, RH, ORG Price: $149.99 |
| 3 |
574354702 |
IMPACT BAR, ORG Price: $54.99 |
| 3 |
85-6610 |
SHAFT-STEERING Price: $54.65 |
| 4 |
256-185 |
BUSHING Price: $19.18 |
| 4 |
575661302 |
PANEL.SEAT.SUPPORT.ORANGE Price: $69.99 |
| 5 |
576414602 |
PAN, FLOOR W/DECALS, HUS Price: $99.99 |
| 5 |
92-5035 |
STEERING POST ASM Price: $105.83 |
| 6 |
574356002 |
FOOT REST, ORG Price: $98.99 |
| 6 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 7 |
525605502 |
BRACKET, FRONT DECK, BLK Price: $37.99 |
| 7 |
65-8770 |
BUSHING-BELLCRANK Price: $5.35 |
| 8 |
525798402 |
SUPPORT, TANK/BATT, BLK Price: $49.99 |
| 8 |
98-0973 |
PIN-GROOVED Price: $2.10 |
| 9 |
575328402 |
PLATE.RH.SIDE.ORANGE Price: $84.99 |
| 9 |
85-9180 |
SPROCKET-STEERING Price: $56.99 |
| 10 |
575328302 |
PLATE.LH.SIDE.ORANGE Price: $84.99 |
| 10 |
95-0571 |
DISCONTINUED Price: Call Us |
| 11 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 11 |
539119087 |
BUSHING Price: $7.99 |
| 12 |
3217-7 |
NUT-HEX Price: $0.28 |
| 12 |
593824001 |
STUD.W/"D"ANTI-ROTATION This part replaces 532195161. Price: $3.99 |
| 13 |
139-2564 |
NUT-LUG This part replaces 242-50. Price: $0.99 |
| 13 |
539102587 |
GROMMET, BUMPER Price: $4.99 |
| 14 |
3231-2 |
BOLT-CARR Price: $0.81 |
| 14 |
539104763 |
U-CLIP 5/16-18 NUT RETAINER Price: $4.99 |
| 15 |
251-166 |
BEARING-FLANGE Price: $14.74 |
| 15 |
596273101 |
Pins This part replaces 539976989. Price: $2.99 |
| 16 |
251-165 |
BEARING-BALL Price: $104.65 |
| 16 |
539976938 |
CAPSCREW Price: $3.99 |
| 17 |
596564404 |
Bolts This part replaces 539990629. Price: $2.99 |
| 17 |
84-7940 |
SHAFT-AXLE Price: $248.60 |
| 18 |
111512 |
DISCONTINUED This part replaces 10-6830. Price: Call Us |
| 18 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 539976934. Price: $3.99 |
| 19 |
539101721 |
HCS 5/16C X 2-3/4 Price: $3.99 |
| 19 |
85-8290 |
TIRE-2PLY, KNOBBY Price: $120.96 |
| 20 |
3296-4 |
NUT-LOCK Price: $0.25 |
| 20 |
539976937 |
HCS 5/16-18X2 Price: $2.99 |
| 21 |
18-6380 |
PIN-ADJUSTMENT, STEERING Price: $12.89 |
| 21 |
539990362 |
SCREW 1/4 X 5/8 Price: $3.99 |
| 22 |
2710-11 |
LINK-CHAIN Price: $5.68 |
| 22 |
539111976 |
ENGINE BOLT, SPECIAL Price: $2.99 |
| 23 |
539110290 |
FOAM STRIP, FUEL TANK Price: $2.99 |
| 23 |
92-5039 |
CHAIN-STEERING Price: $36.82 |
| 24 |
18-6320 |
WASHER-STEERING Price: $2.65 |
| 24 |
595316801 |
Bolts This part replaces 539990645. Price: $3.99 |
| 25 |
115-9472 |
BEARING-CONE AND SEAL This part replaces 254-70. Price: $22.04 |
| 25 |
539111785 |
RHSNB 3/8-16 X 3/4 GR5 ZD Price: $2.99 |
| 26 |
595901601 |
GSPW Bolts This part replaces 539990316. Price: $2.99 |
| 27 |
596230801 |
Nuts This part replaces 539200282. Price: $2.99 |
| 28 |
115-9471 |
BEARING-CUP This part replaces 254-61. Price: $6.46 |
| 28 |
521996502 |
GSPW Nuts This part replaces 521996501. Price: $2.99 |
| 29 |
594944401 |
NUT HEXAGON FLANGE 5/16-18 ST This part replaces 539112899. Price: $5.99 |
| 29 |
95-0600-01 |
FRAME ASM This part replaces 95-0600. Price: $2,207.18 |
| 30 |
3272-37 |
PIN-COTTER Price: $0.75 |
| 30 |
596039201 |
GSPW Hardware This part replaces 539990585. Price: $2.99 |
| 31 |
32136-9 |
NUT-HEX, SLOTTED Price: $7.44 |
| 31 |
596583702 |
Nuts This part replaces 539990717. Price: $2.99 |
| 32 |
32121-15 |
PIN-ROLL Price: $1.60 |
| 32 |
596204101 |
WASHER 11/32 X 11/16 X 14 GA T This part replaces 539990188. Price: $2.99 |
| 33 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 539990122. Price: $2.99 |
| 33 |
85-9200 |
KNUCKLE-STEERING Price: $100.34 |
| 34 |
98-0996 |
STEERING SHFT KIT-SANDPRO This part replaces 98-0928. Price: $35.09 |
| 35 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 38 |
5108 |
VALVE This part replaces 232-35. Price: $6.29 |
| 39 |
114-4643 |
WHEEL This part replaces 94-6116. Price: $149.61 |
| 40 |
94-6821 |
CLAMP-WIRE Price: $3.32 |
| 41 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 42 |
302-33 |
FITTING-GREASE Price: $2.31 |
