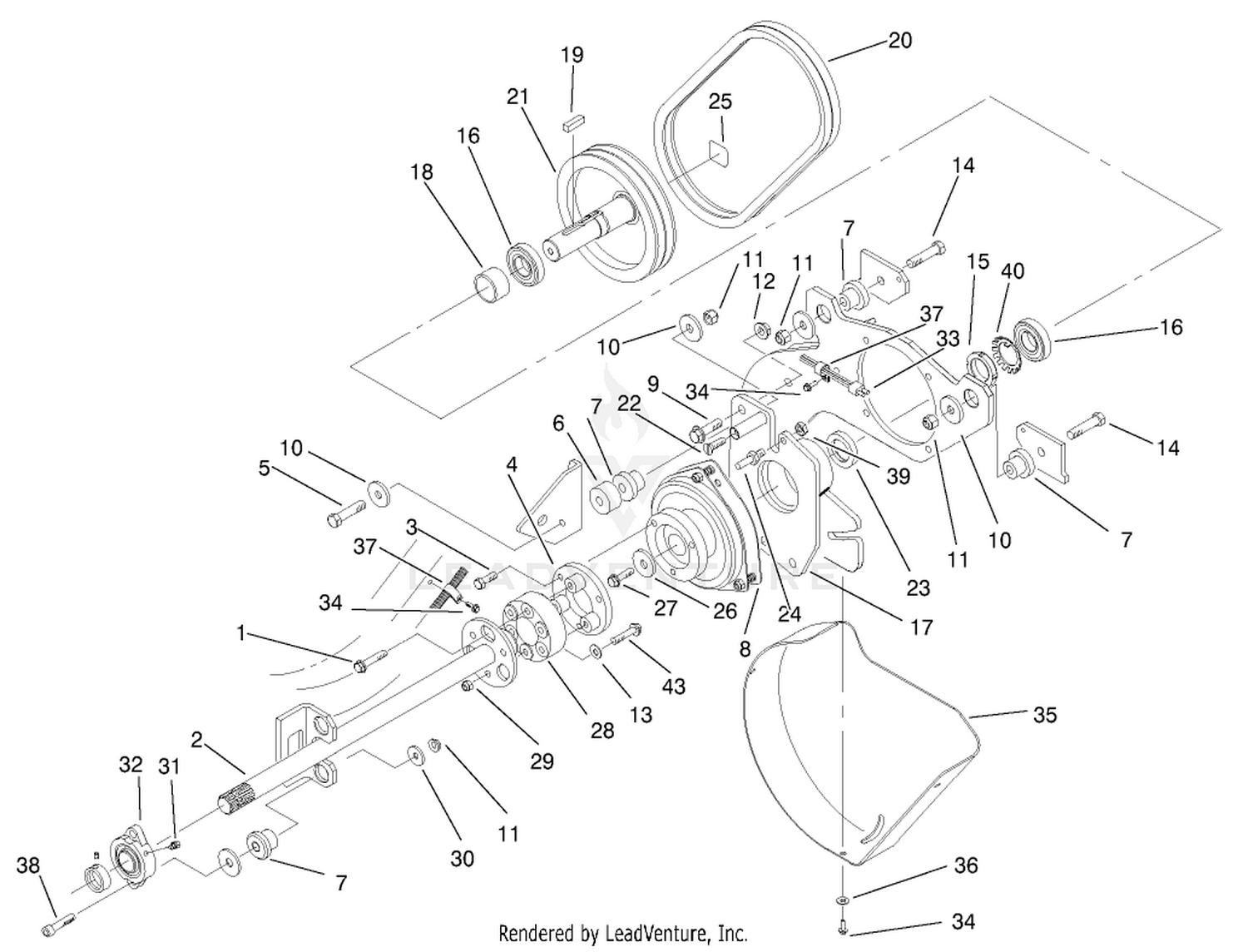

| Ref | Part Number | Description |
|---|
| 1 |
100-2592 |
SCREW-HHF Price: $9.09 |
| 2 |
84-1320-03 |
SHAFT-PTO Price: $276.98 |
| 3 |
33115-030 |
SCREW-HH Price: $0.68 |
| 4 |
106-1061 |
CLUTCH ADAPTER KIT This part replaces 104-2350-03. Price: $263.30 |
| 5 |
325-14 |
SCREW-HH Price: $2.64 |
| 6 |
84-1570 |
SPACER-PLATE Price: $14.75 |
| 7 |
84-1550 |
MOUNT-RUBBER Price: $27.49 |
| 8 |
98-7254 |
KIT - CLUTCH REPLACEMENT This part replaces 98-7250. Price: $2,193.47 |
| 9 |
3234-22 |
SCREW-HHF Price: $2.69 |
| 10 |
84-1560 |
WASHER-THRUST Price: $2.71 |
| 11 |
3296-25 |
NUT-LOCK, NI Price: $1.34 |
| 12 |
32128-49 |
NUT-HHF Price: $1.04 |
| 13 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 14 |
325-9 |
SCREW-HH Price: $1.87 |
| 15 |
88-1450 |
LOCKNUT-BEARING Price: $32.99 |
| 16 |
251-310 |
BEARING-BALL Price: $140.09 |
| 17 |
92-5818-03 |
HOUSING Price: $554.35 |
| 18 |
88-1140 |
SPACER-BEARING, LOWER Price: $16.29 |
| 19 |
84-1540 |
KEY-CLUTCH Price: $18.26 |
| 20 |
88-1170 |
V-BELT (MATCHED SET) Price: $105.24 |
| 21 |
84-0180-03 |
DISCONTINUED Price: Call Us |
| 22 |
88-1510 |
SCREW-SPECIAL Price: $9.28 |
| 23 |
106-1004 |
SPACER-CLUTCH This part replaces 100-2599. Price: $64.46 |
| 24 |
92-5817 |
PIN-STOP, CLUTCH Price: $18.86 |
| 25 |
88-8950 |
DECAL-WARNING Price: $12.65 |
| 26 |
84-1580 |
WASHER-CLUTCH Price: $30.33 |
| 27 |
3234-19 |
SCREW-HHF Price: $1.73 |
| 28 |
86-3040 |
COUPLER-LINE, DRIVE Price: $381.88 |
| 29 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 30 |
86-1990 |
WASHER-THRUST Price: $1.81 |
| 31 |
302-60 |
FITTING-GREASE Price: $2.26 |
| 32 |
86-5620 |
BEARING-BALL, 2 BOLT FLANGE Price: $103.16 |
| 33 |
104-7414 |
MAIN WIRE HARNESS ASM Price: $1,285.39 |
| 34 |
32144-11 |
SCREW-THD ROLL, HWH Price: $6.99 |
| 35 |
88-1280 |
COVER-BELT, LOWER Price: $156.55 |
| 36 |
3256-70 |
WASHER-FLAT Price: $0.25 |
| 37 |
2412-109 |
CLIP-J Price: $3.82 |
| 38 |
3274-71 |
SCREW-HSH Price: $2.71 |
| 39 |
3296-47 |
NUT-LOCK, NI Price: $3.59 |
| 40 |
88-1460 |
WASHER-LOCK Price: $13.85 |
