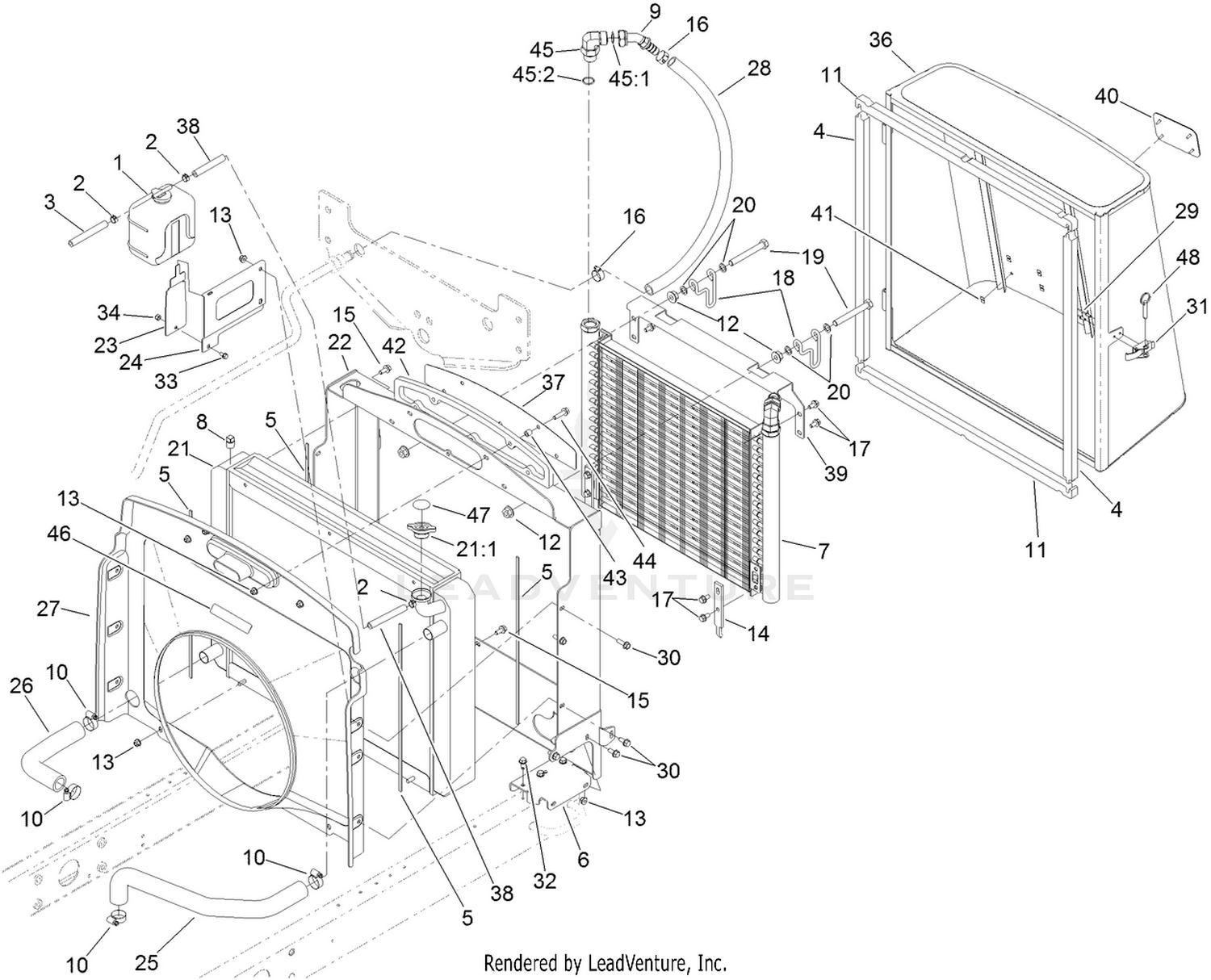

| Ref | Part Number | Description |
|---|
| 1 |
108-0638 |
BOTTLE-OVERFLOW This part replaces 104-9318. Price: $33.20 |
| 2 |
92-2379 |
CLAMP-HOSE Price: $0.34 |
| 3 |
110-3257 |
HOSE-FUEL Price: $17.26 |
| 4 |
110-5275 |
SEAL-FOAM Price: $17.84 |
| 5 |
110-8953 |
SEAL-FOAM Price: $4.09 |
| 6 |
110-5310-01 |
BRACKET-MOUNTING Price: $55.86 |
| 7 |
110-0485 |
COOLER-OIL Price: $706.30 |
| 8 |
281-13 |
PLUG-PIPE Price: $2.86 |
| 9 |
104-7851 |
FITTING-HYD, 45 DEG Price: $62.28 |
| 10 |
2412-34 |
CLAMP-HOSE Price: $2.14 |
| 11 |
110-5276 |
SEAL-FOAM Price: $16.24 |
| 12 |
32128-49 |
NUT-HHF Price: $1.04 |
| 13 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 14 |
104-5460-03 |
PLATE-MOUNT, OIL COOLER Price: $19.12 |
| 15 |
3234-30 |
SCREW-HHF Price: $0.41 |
| 16 |
2412-129 |
CLAMP-HOSE Price: $2.10 |
| 17 |
3234-14 |
SCREW-HHF Price: $0.61 |
| 18 |
104-5429 |
CLAMP-FORM, WIRE Price: $11.80 |
| 19 |
325-17 |
SCREW-HH Price: $2.90 |
| 20 |
41-8440 |
WASHER Price: $1.49 |
| 21 |
117-8093 |
RADIATOR ASM This part replaces 110-0003. Price: $2,185.13 |
| 22 |
110-5251-03 |
FRAME-RADIATOR Price: $733.84 |
| 23 |
108-1665-0P |
BRACKET - RESERVIOR This part replaces 108-1665-03. Price: $13.72 |
| 24 |
108-1666-0P |
BRACKET - RESERVOIR This part replaces 108-1666-03. Price: $20.32 |
| 25 |
110-8942 |
HOSE-FORMED Price: $85.85 |
| 26 |
110-8943 |
HOSE-FORMED Price: $75.79 |
| 27 |
110-5311 |
SHROUD-FAN Price: $369.24 |
| 28 |
110-8955 |
HOSE Price: $36.39 |
| 29 |
3269-15 |
RIVET-POP Price: $0.54 |
| 30 |
3234-5 |
SCREW-HHF Price: $0.42 |
| 31 |
115-1554 |
LATCH-DRAW Price: $38.46 |
| 32 |
32104-32 |
SCREW-HWH Price: $1.99 |
| 33 |
3234-13 |
SCREW-HHF Price: $0.77 |
| 34 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 36 |
110-5269-03 |
SCREEN Price: $1,472.37 |
| 37 |
108-1843-0P |
SCREEN - AIR INTAKE This part replaces 108-1843-03. Price: $35.29 |
| 38 |
110-4104 |
HOSE-FUEL Price: $8.95 |
| 39 |
104-5428 |
BRACKET-OIL COOLER, TOP Price: $50.73 |
| 40 |
93-6028 |
PLATE-LOGO Price: $13.70 |
| 41 |
94-2638 |
NUT-FLAT Price: $0.54 |
| 42 |
110-5324 |
SEAL-FOAM Price: $16.15 |
| 43 |
1-603903 |
SPACER Price: $4.99 |
| 44 |
3234-36 |
SCREW-HHF Price: $0.75 |
| 45 |
340-142 |
FITTING-ELBOW-90 Price: $65.90 |
| 46 |
93-7272 |
DECAL-WARNING Price: $6.37 |
| 47 |
106-6755 |
DECAL-CAP, RADIATOR Price: $18.49 |
