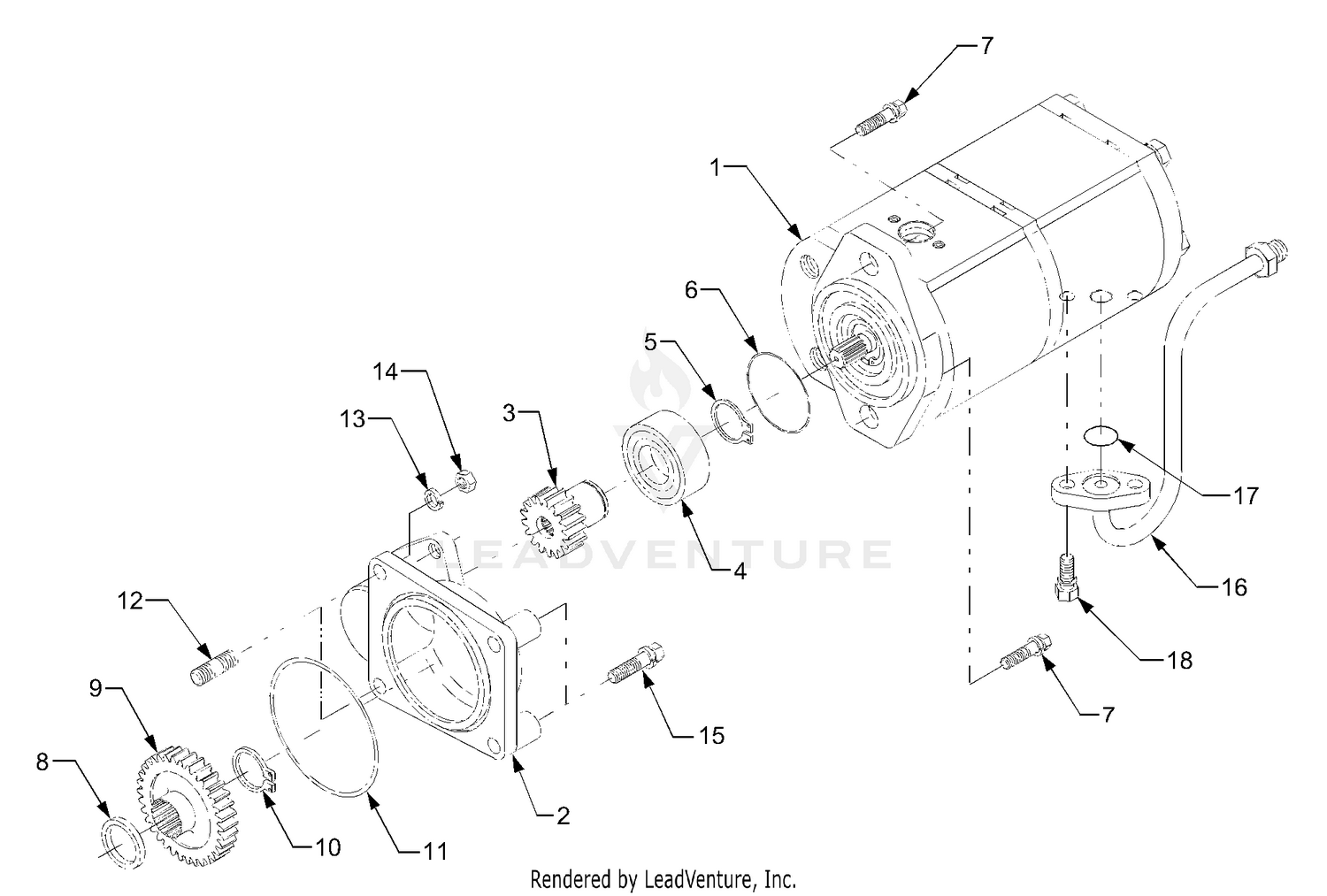

Gear Pump Group
Parts (38)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 70-4780 | PLUG Price: $10.59 |
| 1 | DD-T4686-31501 | HYDRO GEAR PUMP ASSEMBLY Not Available This part replaces DD-T4620-76042. Price: |
| 2 | 70-6700 | WASHER Price: $4.85 |
| 2 | DD-T4620-76001 | PLATE-GEAR PUMP MT Not Available Price: |
| 3 | 70-4770 | SPRING Price: $14.96 |
| 3 | DD-T4620-76031 | GEAR-PUMP Not Available Price: |
| 4 | 99-2263 | PISTON Price: $20.31 |
| 4 | DD-08241-05205 | BALL BEARING Not Available Price: |
| 5 | 70-4610 | VALVE Price: $9.43 |
| 5 | DD-04612-00250 | SNAP RING Not Available Price: |
| 6 | 70-4620 | SPRING Price: $3.08 |
| 6 | DD-04811-10800 | O-RING Not Available Price: |
| 7 | 70-4630 | GASKET Price: $2.95 |
| 7 | DD-01133-51035 | HEX BOLT Not Available Price: |
| 8 | 70-4640 | SUPPORT Price: $22.17 |
| 8 | DD-35370-37821 | SPACER Not Available Price: |
| 9 | 99-2262 | SEAL - OIL Price: $42.25 |
| 9 | DD-T4686-37821 | GEAR-PUMP 34T Not Available Price: |
| 10 | 70-6940 | SCREW Price: $20.10 |
| 10 | DD-15471-95361 | SNAP RING Not Available Price: |
| 11 | 70-4650 | PUMP SUB ASSEMBLY Price: $132.38 |
| 11 | DD-04811-10850 | O-RING Not Available Price: |
| 12 | 70-4760 | BLOCK Price: $13.13 |
| 12 | DD-01513-50822 | STUD Not Available Price: |
| 13 | 70-4730 | TAPPET Price: $45.43 |
| 13 | DD-04512-50080 | LOCK WASHER Not Available Price: |
| 14 | 70-4740 | ROLLER Price: $11.58 |
| 14 | DD-02114-50080 | HEX NUT Not Available Price: |
| 15 | 70-6820 | RING Price: $3.25 |
| 15 | DD-01123-50845 | HEX BOLT Not Available Price: |
| 16 | 70-4750 | PIN Price: $4.68 |
| 16 | DD-T4620-45043 | LINE-STEERING Not Available Price: |
| 17 | 99-2282 | WASHER - UNION Price: $3.65 |
| 17 | DD-04810-00180 | O-RING Not Available Price: |
| 18 | 70-5700 | FUEL FEED PUMP This part replaces 70-4600. Price: $796.28 |
| 19 | 70-4790 | FILTER Price: $6.38 |
| 20 | 70-4800 | SCREW Price: $22.40 |
| 21 | 99-2261 | ROD - PUSH Price: $10.21 |
