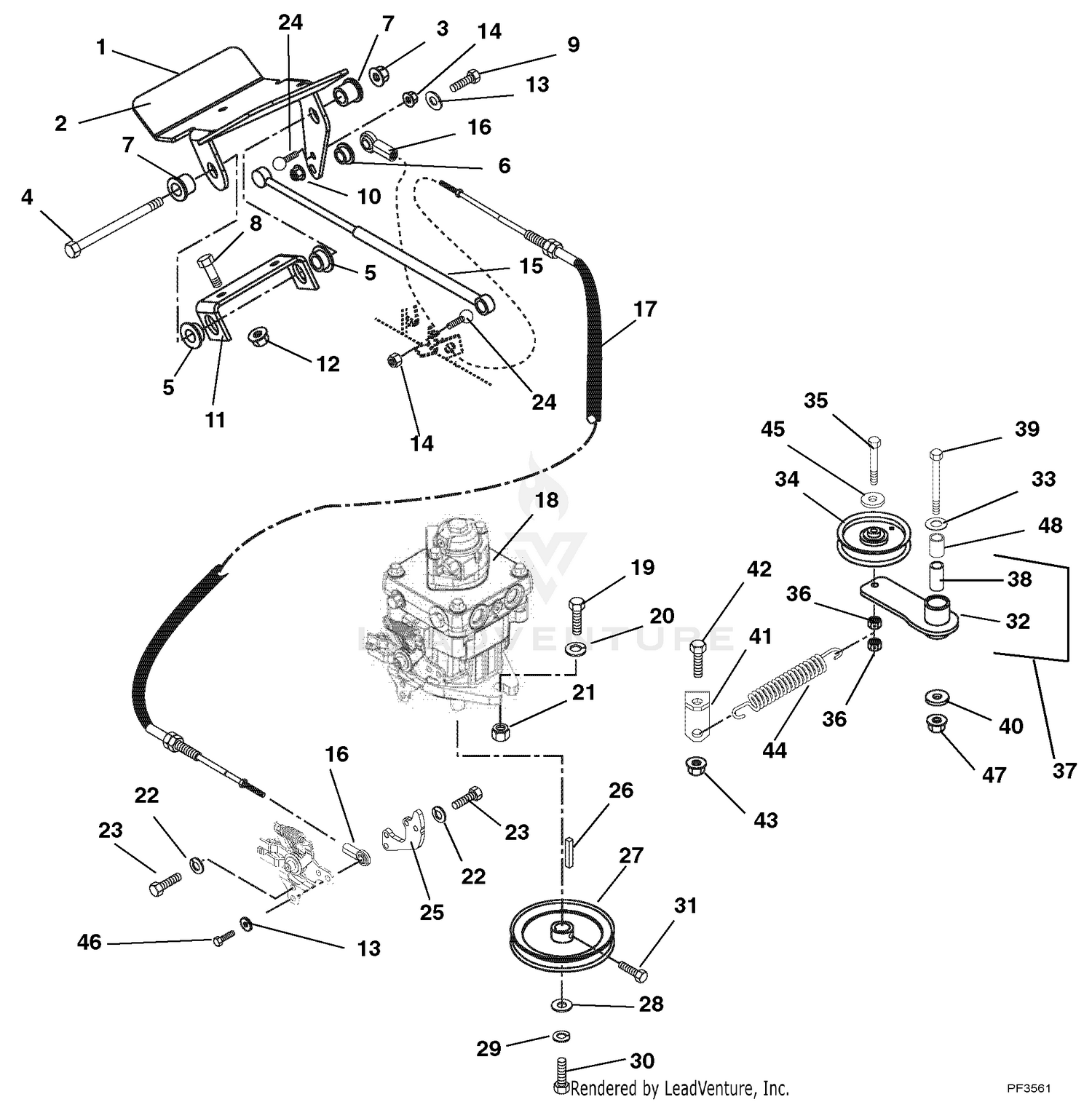

| Ref | Part Number | Description |
|---|
| 1 |
04909653 |
PEDAL, DIRECTION CONTROL Price: $42.90 |
| 2 |
08749700 |
PAD,FOOT CLUTCH PEDAL Price: $13.45 |
| 3 |
06500907 |
NUT-LK-TOP-FLG .500-13 GF ZCC This part replaces 06543600. Price: $1.45 |
| 4 |
05901907 |
BLT, HEX .50-13X6.50 GR5 ZCC This part replaces 05964400. Price: $6.95 |
| 5 |
05518400 |
BSHG-FLG .762X1.0X.580X1.48 NY Price: $4.45 |
| 6 |
05513400 |
BSHG-FLG .265X.437X.250X.750 Price: $1.95 |
| 7 |
05521100 |
BSHG-FLG .515X.750X.745X1.00NY Price: $2.45 |
| 8 |
05901711 |
BLT-HEX .38-16X1.00 G5 ZCC This part replaces 05948700. Price: $1.45 |
| 9 |
05901639 |
BLT,HEX .25-20X1.00 G5 ZCC This part replaces 05947700. Price: $1.45 |
| 10 |
06500903 |
NUT-LK-TOP-FLG .250-20 GF ZCC This part replaces 06543500. Price: $0.95 |
| 11 |
04909553 |
BRKT, CONTROL PEDAL Price: $28.95 |
| 12 |
06500822 |
NUT-LK-TOP-FLG .38-16 ZC120 This part replaces 06542000. Price: $0.95 |
| 13 |
06401001 |
WSHR,FLT .281X.625X.065 ZCC This part replaces 06437300. Price: $0.45 |
| 14 |
06500904 |
NUT-LK-TOP-FLG .312-18 GF ZCC This part replaces 06543100. Price: $0.95 |
| 15 |
09258900 |
DAMPENER, CONTROL Price: $67.45 |
| 16 |
08971800 |
ROD END, 1/4 RH - FEMALE Price: $15.95 |
| 17 |
06947100 |
CABLE, FWD-REV CONTROL Price: $142.45 |
| 18 |
00358600 |
PUMP, BI-DIRECTIONAL RTN Price: $938.45 |
| 19 |
05901631 |
BLT,HEX .50-13X1.50 G5 ZCC This part replaces 05962000. Price: $3.95 |
| 20 |
06401015 |
WSHR,FLT .531X1.062X.095 ZCC This part replaces 06441900. Price: $0.95 |
| 21 |
06500907 |
NUT-LK-TOP-FLG .500-13 GF ZCC This part replaces 06543600. Price: $1.45 |
| 22 |
06300119 |
WSHR-LK-REG .312X.078 ZCC This part replaces 06308600. Price: $0.95 |
| 23 |
05901904 |
BLT, HEX .31-18X.50 GR5 ZCC This part replaces 05947200. Price: $1.45 |
| 24 |
03652200 |
STUD- BALL Price: $3.45 |
| 25 |
01920600 |
PLATE, 320 RTN/CAM Price: $71.45 |
| 26 |
06611300 |
KEY, SQ 5 X 5 X 30MM PLAIN Price: $2.45 |
| 27 |
07326600 |
SHEAVE, PUMP 4.50 X .67 Price: $65.45 |
| 28 |
06401020 |
WSHR,FLT .281X1.000X.063 ZCC This part replaces 06426600. Price: $0.95 |
| 29 |
06401009 |
WSHR-LK-REG .250X.062 ZCC This part replaces 06308400. Price: $0.45 |
| 30 |
05969800 |
BLT-HEX M6 X 1.0X12 YWZC Price: $1.95 |
| 31 |
05901705 |
BLT-HEX .25-20X.50 G5 ZCC This part replaces 05947900. Price: $0.45 |
| 32 |
03774151 |
WMT, IDLER ARM - BLACK Price: $45.95 |
| 33 |
01581700 |
BSHG, SPCR .502X.997X2.03 PM Price: $5.95 |
| 34 |
07327600 |
V-IDLER, 4.00X.38 Price: $34.95 |
| 35 |
05901640 |
BLT,HEX .38-16X2.25 G5 ZCC This part replaces 05962900. Price: $3.95 |
| 36 |
06500825 |
NUT-LK-CTR .38-16 ZC120 This part replaces 06529600. Price: $0.95 |
| 37 |
03796400 |
ASM, IDLER ARM (DECK) Price: $56.45 |
| 38 |
05501234 |
BSHG, 1.00X1.125X1.937 This part replaces 05500123. Price: $9.95 |
| 39 |
05901734 |
BLT, HEX .50-13X4.00 G5 ZCC This part replaces 05961900. Price: $3.45 |
| 40 |
06445000 |
WSHR-FL-STL .515X1.625X.250 YZ Price: $5.45 |
| 41 |
09231100 |
ANCHOR - SPRING - IDLER Price: $18.45 |
| 42 |
05901711 |
BLT-HEX .38-16X1.00 G5 ZCC This part replaces 05948700. Price: $1.45 |
| 43 |
06500822 |
NUT-LK-TOP-FLG .38-16 ZC120 This part replaces 06542000. Price: $0.95 |
| 44 |
08300728 |
SPRING- EXTENSION Price: $24.95 |
| 45 |
06401013 |
WSHR-FLT .406X.812X.065 ZCC This part replaces 06436200. Price: $0.95 |
| 46 |
05901738 |
BLT, HEX .25-20X1.25 G5 ZCC This part replaces 05947400. Price: $1.95 |
| 47 |
06500827 |
NUT,LK-CTR .50-13 GA ZCC This part replaces 06536300. Price: $3.95 |
