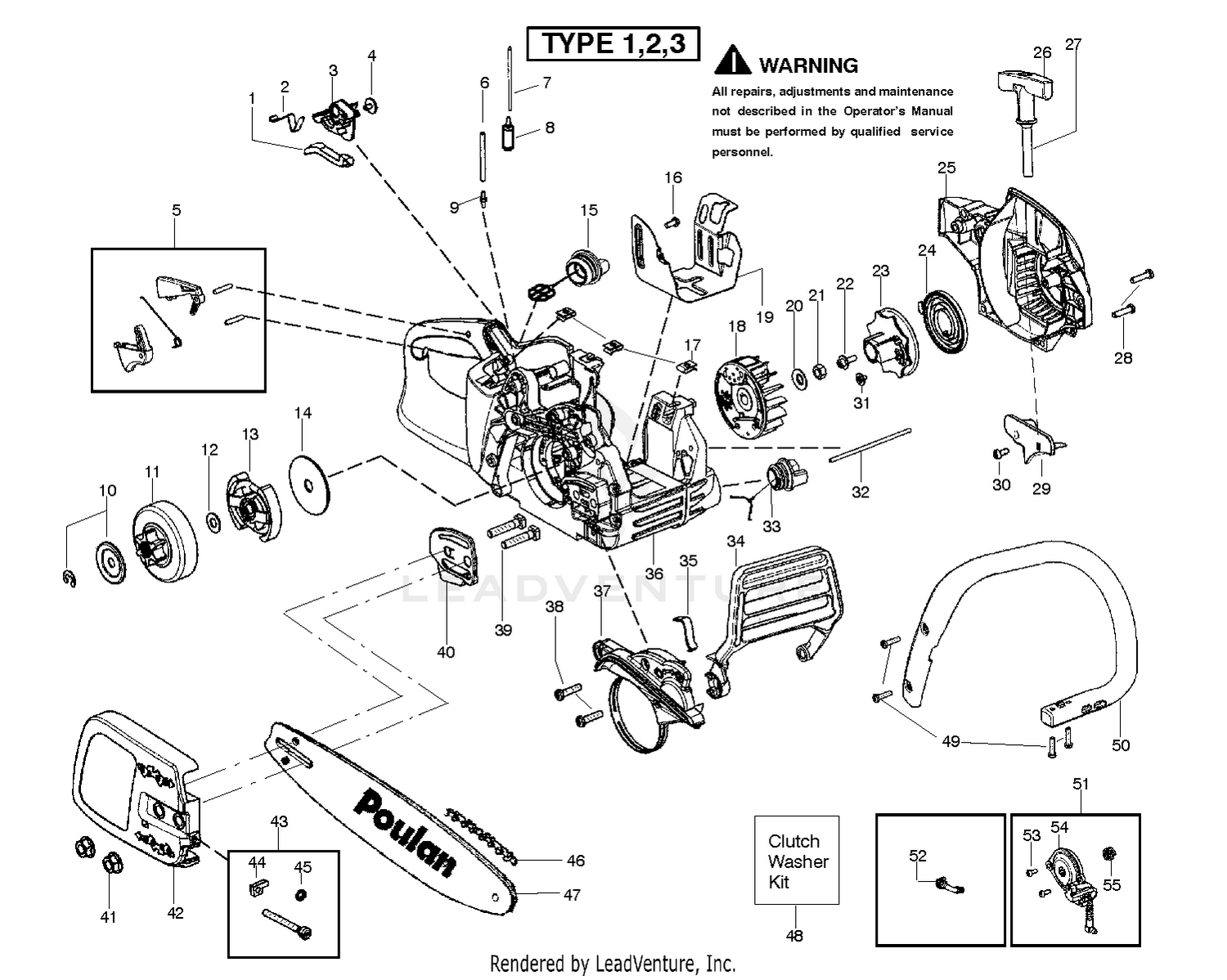

| Ref | Part Number | Description |
|---|
| 1 |
3290-277 |
NUT-SPEED Price: $0.61 |
| 1 |
530057893 |
KNOB CHOKE Price: $3.99 |
| 2 |
27-2850 |
DISCONTINUED This part replaces 10-7360. Price: Call Us |
| 2 |
530057908 |
SPRING IGNITION SWITCH Price: $2.99 |
| 3 |
530057891 |
LEVER IGNITION SWITCH Price: $4.99 |
| 4 |
10-9100 |
DISCONTINUED Price: Call Us |
| 4 |
530016080 |
SCREW Price: $1.99 |
| 5 |
23-4800 |
THROTTLE CONTROL This part replaces 10-7400. Price: $77.20 |
| 5 |
530071888 |
KIT TRIG AND LOCKOUT Price: $6.99 |
| 6 |
321-15 |
SCREW-HH Price: $0.61 |
| 7 |
12-8150 |
DISCONTINUED Price: Call Us |
| 8 |
323-14 |
SCREW-HH Price: $1.34 |
| 8 |
530095646 |
Assy-Fuel Pickup This part replaces 530095649. Price: $2.99 |
| 9 |
3256-4 |
WASHER-FLAT Price: $0.28 |
| 9 |
530023877 |
FUEL LINE FITTING Price: $1.99 |
| 10 |
3272-6 |
PIN-COTTER Price: $0.25 |
| 10 |
530071945 |
KIT SAS CLUTCH WASHER Price: $3.99 |
| 11 |
530057905 |
ASSY CLUTCH DRUM 3/8 Price: $14.99 |
| 11 |
HY2562 |
DISCONTINUED This part replaces 256-2. Price: Call Us |
| 12 |
5-2653 |
PULLEY ASM Price: $38.12 |
| 12 |
530071945 |
KIT SAS CLUTCH WASHER Price: $3.99 |
| 13 |
351-34 |
SEAT & BACK CUSHION Price: $904.58 |
| 13 |
530057907 |
ASSY CLUTCH Price: $6.99 |
| 14 |
321-2 |
SCREW-HH Price: $2.79 |
| 14 |
530016419 |
WASHER CLUTCH LARGE Price: $1.99 |
| 15 |
3218-1 |
NUT-JAM Price: $1.29 |
| 15 |
580940901 |
FUEL CAP ASSY This part replaces 577858501. Price: $3.99 |
| 16 |
351-36 |
LOWER SLIDE Price: $137.29 |
| 16 |
545227101 |
SCREW 6-19X.437 This part replaces 530016064. Price: $1.99 |
| 17 |
322-1 |
SCREW-HH Price: $0.22 |
| 17 |
530015922 |
CLIP Price: $1.99 |
| 18 |
351-35 |
DISCONTINUED Price: Call Us |
| 18 |
530071905 |
KIT This part replaces 530057937. Price: $37.99 |
| 19 |
351-52 |
DISCONTINUED Price: Call Us |
| 19 |
530057911 |
SHIELD HEAT Price: $2.99 |
| 20 |
10-6480 |
DISCONTINUED Price: Call Us |
| 20 |
530015127 |
WASHER-FLYWHEEL Price: $1.99 |
| 21 |
3219-14 |
NUT-HEX Price: $0.25 |
| 21 |
530016134 |
NUT-FLYWHEEL Price: $1.99 |
| 22 |
530015920 |
SCREW Price: $1.99 |
| 22 |
62-7770 |
KEY-IGNITION This part replaces 218-412. Price: $4.39 |
| 23 |
12-8140 |
KEY SWITCH Price: $39.86 |
| 23 |
530057890 |
STARTER PULLEY Price: $5.99 |
| 24 |
545008013 |
Kit-Starter Spring This part replaces 530042095. Price: $3.99 |
| 24 |
7-6130 |
DISCONTINUED Price: Call Us |
| 25 |
32140-16 |
DISCONTINUED Price: Call Us |
| 26 |
530056402 |
HANDLE STARTER Price: $2.99 |
| 26 |
67-1300 |
DECAL This part replaces 10-8160. Price: $29.99 |
| 27 |
321-6 |
SCREW-HH Price: $0.25 |
| 27 |
530069232 |
KIT-ROPE Price: $3.99 |
| 28 |
120-2244 |
HOURMETER This part replaces 12-9990. Price: $48.06 |
| 28 |
530016432 |
SCREW M5.38-14X22.225MM Price: $1.99 |
| 29 |
12-7840 |
DISCONTINUED Price: Call Us |
| 29 |
578152201 |
BAFFLE FAN HOUSING Price: $1.99 |
| 30 |
101450 |
REGULATOR-RECTIFIER This part replaces 218-452. Price: $244.13 |
| 30 |
545227101 |
SCREW 6-19X.437 Price: $1.99 |
| 31 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 31 |
530016080 |
SCREW Price: $1.99 |
| 32 |
3217-5 |
NUT-HEX Price: $0.25 |
| 32 |
530058786 |
ASSEMBLY-OIL-VENT Price: $2.99 |
| 33 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 33 |
530057236 |
OIL TANK CAP Price: $5.99 |
| 34 |
322-2 |
SCREW-HH Price: $0.69 |
| 34 |
530057897 |
HANDGUARD Price: $7.99 |
| 35 |
32153-3 |
NUT-HEX, SIDE DEFORM This part replaces 32146-5. Price: $5.59 |
| 35 |
530016416 |
SPRING HANDGUARD Price: $1.99 |
| 36 |
10-9240 |
SEAT CLAMP Price: $18.21 |
| 37 |
322-3 |
SCREW-HH Price: $0.79 |
| 37 |
530071893 |
KIT CHAIN BRAKE Price: $17.99 |
| 38 |
530016432 |
SCREW M5.38-14X22.225MM Price: $1.99 |
| 38 |
603773 |
LOCKNUT This part replaces 32146-2. Price: $2.09 |
| 39 |
10-7300 |
DISCONTINUED Price: Call Us |
| 39 |
530016133 |
BOLT Price: $1.99 |
| 40 |
256-113 |
BUSHING-FLANGE Price: $5.58 |
| 40 |
530057910 |
PLATE BAR MOUNTING Price: $1.99 |
| 41 |
10-7210 |
DISCONTINUED Price: Call Us |
| 41 |
530015917 |
BAR NUT Price: $0.99 |
| 42 |
10-7370 |
TUBE CAP W A *R Price: $26.93 |
| 43 |
32121-34 |
PIN-ROLL Price: $1.31 |
| 44 |
3254-6 |
WASHER-LOCK, INTERNAL Price: $0.31 |
| 44 |
530015826 |
ADJUST PIN,BAR 36/41 Price: $1.99 |
| 45 |
3296-42 |
NUT-LOCK, NI This part replaces 32146-17. Price: $0.28 |
| 45 |
530038593 |
RETAINER Price: $0.99 |
| 46 |
3256-2 |
WASHER-FLAT Price: $0.39 |
| 46 |
581562301 |
P/PP CHN 18" 62DL 3/8 .050 This part replaces 952051338. Price: $19.99 |
| 47 |
2412-4 |
CLAMP-R Price: $4.22 |
| 47 |
952044418 |
BAR 18" Price: $30.95 |
| 48 |
10-7980 |
DISCONTINUED Price: Call Us |
| 49 |
10-8150 |
DISCONTINUED Price: Call Us |
| 49 |
530016432 |
SCREW M5.38-14X22.225MM Price: $1.99 |
| 50 |
530057888 |
HANDLE FRONT Price: $14.99 |
| 50 |
6-9150 |
DISCONTINUED Price: Call Us |
| 51 |
10-7220 |
STEERING CABLE Price: $131.91 |
| 52 |
3290-314 |
TINNERMAN Price: $0.54 |
| 52 |
530057924 |
ASSY PICK UP OIL TANK Price: $2.99 |
| 53 |
10-7240 |
SLEEVE-PULLEY, STEERING Price: $3.73 |
| 53 |
545227101 |
SCREW 6-19X.437 Price: $1.99 |
| 54 |
3296-42 |
NUT-LOCK, NI This part replaces 32146-17. Price: $0.28 |
| 54 |
581071401 |
OIL PUMP ASSY SAS This part replaces 530057931. Price: $5.99 |
| 55 |
3290-321 |
SCREW-HWH Price: $3.99 |
