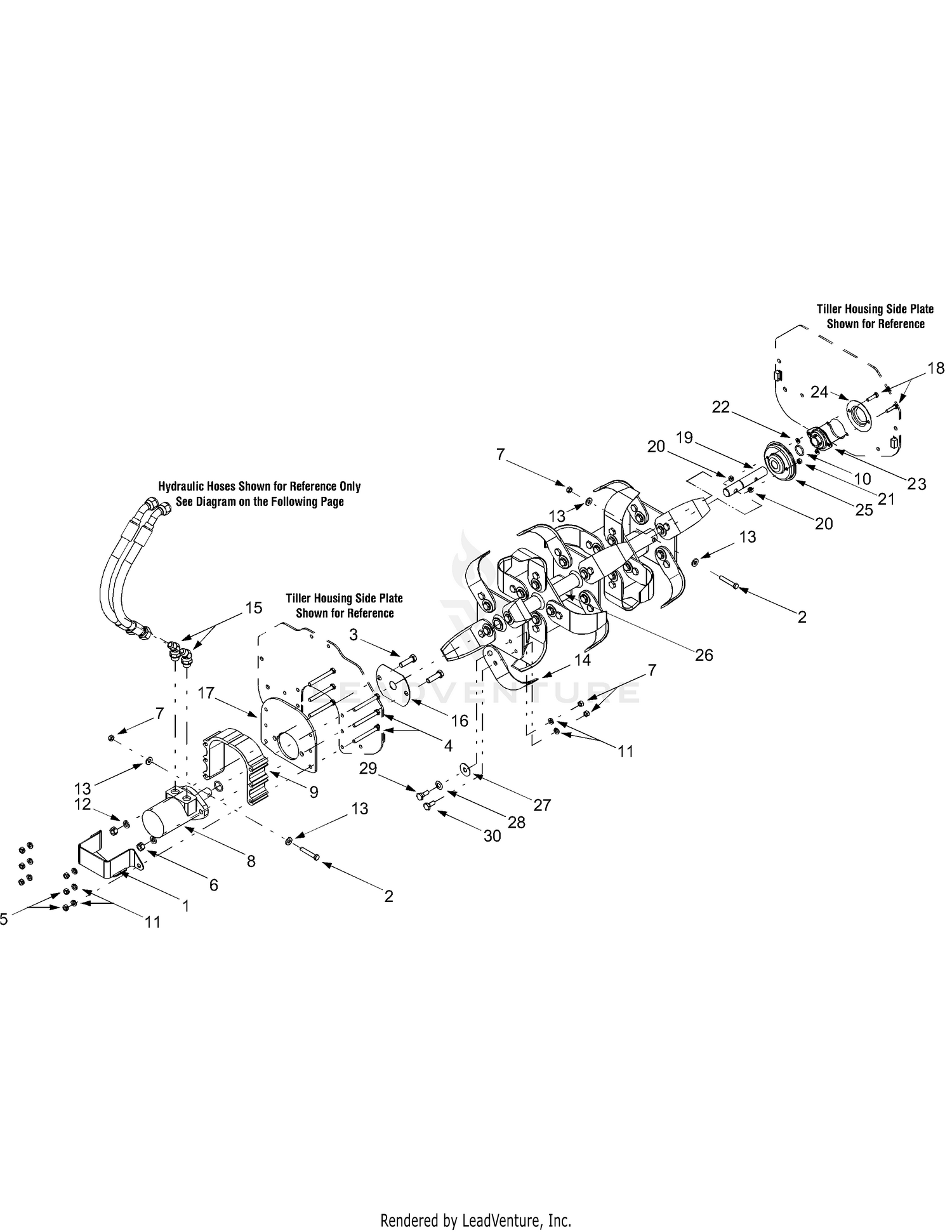

| Ref | Part Number | Description |
|---|
| 1 |
686-0123-0637 |
MOTOR GUARD ASSEMBLY(POWDER BLACK) Not Available This part replaces 686-0123. Price: |
| 2 |
710-1254 |
SCREW 3/8-24X2.25 GR8 Price: $6.26 |
| 3 |
710-3067 |
Hex Cap Screw, 1/2-13 x 1.75 Price: $6.06 |
| 4 |
710-3085 |
Hex Cap Screw, 3/8-16 x 3.5 Price: $3.90 |
| 5 |
712-3000 |
Hex Lock Nut, 3/8-16 Price: $3.90 |
| 6 |
712-3022 |
Hex Lock Nut, 1/2-13 Price: $3.61 |
| 7 |
712-3054 |
Hex Lock Nut, 3/8-24 Price: $3.90 |
| 8 |
718-0659 |
HYDRAULIC MOTOR Not Available Price: |
| 8 |
ET-24300-625 |
KEY-.1552 SQ x .68 Not Available Price: |
| 9 |
719-0552 |
SPACER Not Available Price: |
| 10 |
721-0513 |
O-RING SEAL Not Available Price: |
| 11 |
736-0217 |
Lock Washer, 3/8 Price: $3.86 |
| 12 |
736-0921 |
Lock Washer, 1/2 Price: $3.90 |
| 13 |
736-3004 |
Flat Washer, .406 x .875 x .105 Price: $4.08 |
| 14 |
786-0290-0637 |
Articulating Tine Not Available This part replaces 786-0290. Price: |
| 16 |
786-0241-0637 |
MOTOR COVER Not Available This part replaces 786-0241. Price: |
| 17 |
786-0291-0637 |
PLATE Not Available This part replaces 786-0291. Price: |
| 18 |
710-0528 |
Hex Cap Screw, 5/16-18 x 1.25 Price: $3.90 |
| 19 |
711-1418 |
TINE SHAFT Not Available Price: |
| 20 |
712-3009 |
Hex Lock Nut, 5/16-18 Price: $5.99 |
| 21 |
712-3010 |
HEX NUT 5/16-18 This part replaces 7123010. Price: $3.89 |
| 22 |
936-0119 |
LOCK WASHER 5/16 This part replaces 736-0119. Price: $4.29 |
| 23 |
741-0723 |
FLANGE BEARING ASSEMBLY Not Available Price: |
| 24 |
786-0242-0637 |
DUST COVER CAP Not Available This part replaces 786-0242. Price: |
| 25 |
786-0262-0637 |
BEARING COVER Not Available This part replaces 786-0262. Price: |
| 26 |
686-0148-0637 |
TINE ADAPTER ASSEMBLY (POWDER BLACK) Not Available This part replaces 686-0148. Price: |
| 27 |
736-0208 |
Flat Washer, .51 x 1.5 x .07 Price: $4.02 |
| 28 |
736-0253 |
Belleville Washer Price: $3.58 |
| 29 |
738-1138 |
Shoulder Screw, .49 x .21, 3/8-24 Price: $7.02 |
