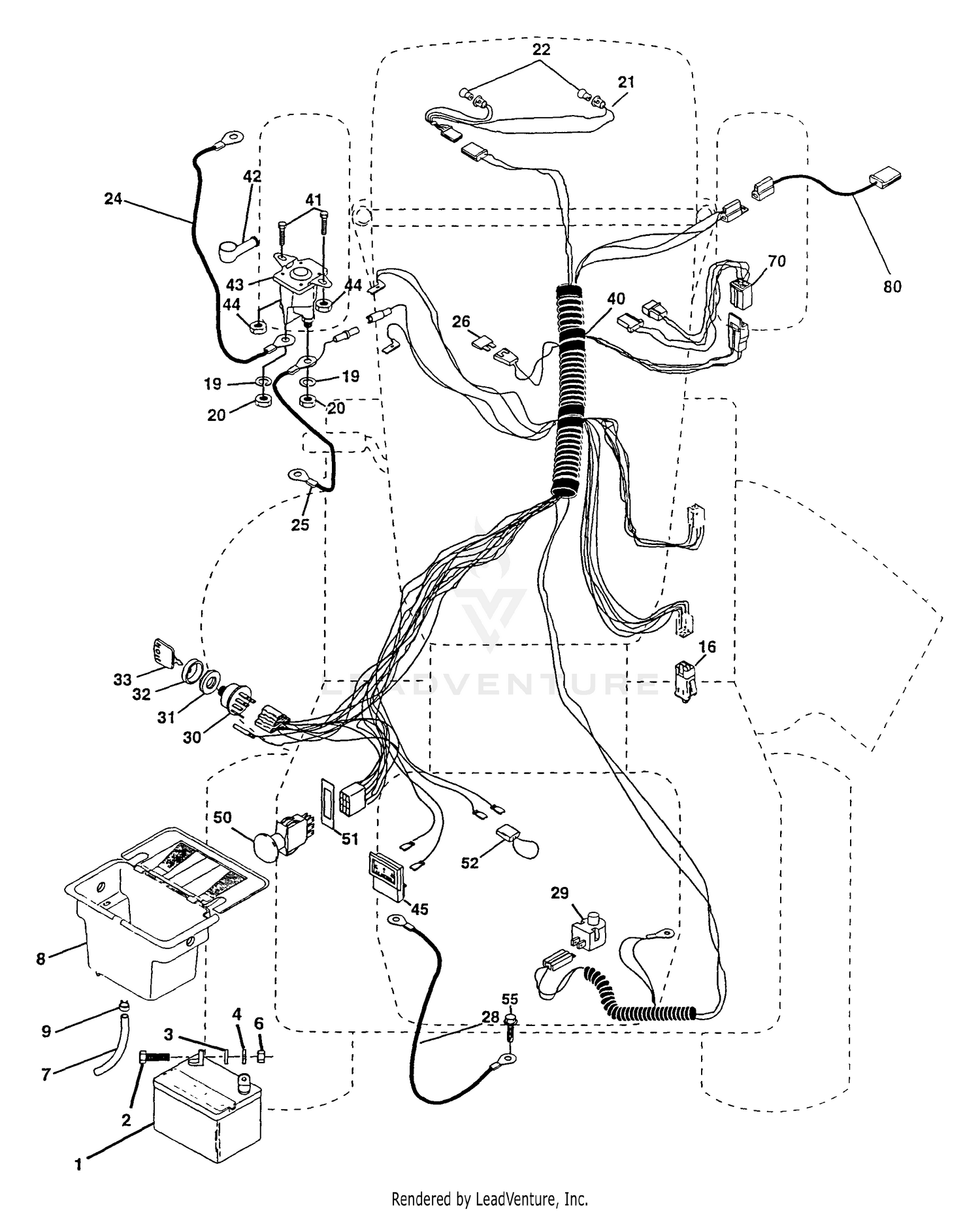

| Ref | Part Number | Description |
|---|
| 1 |
144926 |
Battery 12 Volt 30 AMP (AYP part number) Price: Call Us |
| 1 |
3272-37 |
PIN-COTTER Price: $0.75 |
| 2 |
32136-9 |
NUT-HEX, SLOTTED Price: $7.44 |
| 2 |
74760412 |
Bolt Hex Hd 1/4-20 UNC X 3/4 Price: Call Us |
| 3 |
18-6320 |
WASHER-STEERING Price: $2.65 |
| 3 |
19091016 |
Washer 9/32 X 5/8 X 16 Ga. Price: Call Us |
| 4 |
10040400 |
Washer Lock Hvy Helical 1/4 Price: Call Us |
| 4 |
26-2800 |
DISCONTINUED Price: Call Us |
| 5 |
237-84 |
GROMMET Price: $1.12 |
| 6 |
18-7980 |
DISCONTINUED Price: Call Us |
| 6 |
73220400 |
Nut Fin Hex 1/4-20 UNC Price: Call Us |
| 7 |
109238X |
Tube Plastic 12" Price: Call Us |
| 7 |
323-12 |
SCREW-HH Price: $1.14 |
| 8 |
156417 |
Case Battery Mech Hinge Price: Call Us |
| 8 |
18-6920 |
DISCONTINUED Price: Call Us |
| 9 |
109596X |
Clamp Hose Olive Price: Call Us |
| 9 |
322-3 |
SCREW-HH Price: $0.79 |
| 10 |
10-9240 |
SEAT CLAMP Price: $18.21 |
| 11 |
32153-3 |
NUT-HEX, SIDE DEFORM This part replaces 32146-5. Price: $5.59 |
| 12 |
18-7080 |
DISCONTINUED Price: Call Us |
| 13 |
3290-344 |
DISCONTINUED Price: Call Us |
| 14 |
2412-43 |
DISCONTINUED Price: Call Us |
| 15 |
323-10 |
SCREW-HH Price: $0.89 |
| 16 |
153664 |
Switch Interlock Push-In (AYP part number) Price: Call Us |
| 16 |
32104-24 |
Screw, Self-Tap Price: Call Us |
| 18 |
3290-199 |
NUT-SPEED Price: $4.09 |
| 19 |
10090400 |
Washer Lock 1/4 (AYP part number) Price: Call Us |
| 19 |
321-2 |
SCREW-HH Price: $2.79 |
| 20 |
3296-19 |
NUT-HEX Price: $0.65 |
| 20 |
73350400 |
Nut Jam Hex 1/4-20 UNC Price: Call Us |
| 21 |
136850 |
Harness Asm Light W/4152j Price: Call Us |
| 21 |
18-6290 |
DISCONTINUED Price: Call Us |
| 22 |
4152J |
Bulb Light #1156 Price: Call Us |
| 22 |
5108 |
VALVE This part replaces 232-35. Price: $6.29 |
| 23 |
114-4643 |
WHEEL This part replaces 242-53. Price: $149.61 |
| 24 |
4799J |
Cable Battery 6 Ga 11" red Price: Call Us |
| 24 |
85-8290 |
TIRE-2PLY, KNOBBY This part replaces 28-1070. Price: $120.96 |
| 25 |
146147 |
Cable Battery 6 Ga 44" red w/16 wire Price: Call Us |
| 26 |
108824X |
Fuse 30 AMP Auto Green Price: Call Us |
| 26 |
26-3790 |
NUT-LOCK Price: $24.46 |
| 27 |
17-2520 |
STUD-TYPE, DRIVE Price: $9.72 |
| 28 |
18-8090 |
DISCONTINUED X-REF Price: Call Us |
| 28 |
4207J |
Cable Ground 6 Ga 12" black Price: Call Us |
| 29 |
121305X |
Switch Plunger Nc Gray Price: Call Us |
| 29 |
3217-7 |
NUT-HEX Price: $0.28 |
| 30 |
140301 |
Switch Ign 4 pos w/Lights Price: Call Us |
| 30 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 31 |
124211X |
Nut Ignition Price: Call Us |
| 31 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 32 |
141226 |
Cover Sw Ignition Price: Call Us |
| 32 |
18-8000 |
RUBBER MOUNT Price: $97.89 |
| 33 |
11-5790 |
KEY-SQUARE Price: $17.50 |
| 33 |
122147X |
Key Ign Molded Indak Price: Call Us |
| 34 |
32146-13 |
NUT-HEX Price: $3.49 |
| 35 |
3231-2 |
BOLT-CARR Price: $0.81 |
| 36 |
251-165 |
BEARING-BALL Price: $104.65 |
| 37 |
251-166 |
BEARING-FLANGE Price: $14.74 |
| 38 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 39 |
18-6270 |
DISCONTINUED Price: Call Us |
| 40 |
158684 |
Harness Ign. Price: Call Us |
| 40 |
325-10 |
SCREW-HH Price: $1.82 |
| 41 |
323-6 |
SCREW-HH Price: $0.66 |
| 41 |
71110408 |
Bolt Blk Fin Hex 1/4-20 x 1/2 Price: Call Us |
| 42 |
131563 |
Cover Terminal Red Price: Call Us |
| 42 |
18-6210-01 |
DISCONTINUED This part replaces 18-6210. Price: Call Us |
| 43 |
145673 |
Solenoid (AYP part number) Price: Call Us |
| 43 |
353-427 |
FITTING-45 DEG Price: $26.43 |
| 44 |
237-80 |
O-RING Price: $6.10 |
| 44 |
73640400 |
Nut Keps Hex 1/4-20 UNC Price: Call Us |
| 45 |
121433X |
Ammeter Rectangular 6 amp (AYP part number) Price: Call Us |
| 45 |
17-2450 |
DISCONTINUED Price: Call Us |
| 46 |
115-9471 |
BEARING-CUP This part replaces 254-61. Price: $6.46 |
| 47 |
115-9472 |
BEARING-CONE AND SEAL This part replaces 254-70. Price: $22.04 |
| 50 |
154959 |
Switch, PTO 3 PDT Black Delta 96 Price: Call Us |
| 51 |
140405 |
Ring Retainer PTO Price: Call Us |
| 52 |
141940 |
Protection Wire Loop Price: Call Us |
| 70 |
140422 |
Harness, Eng. B & S 14 OHV Dual Price: Call Us |
