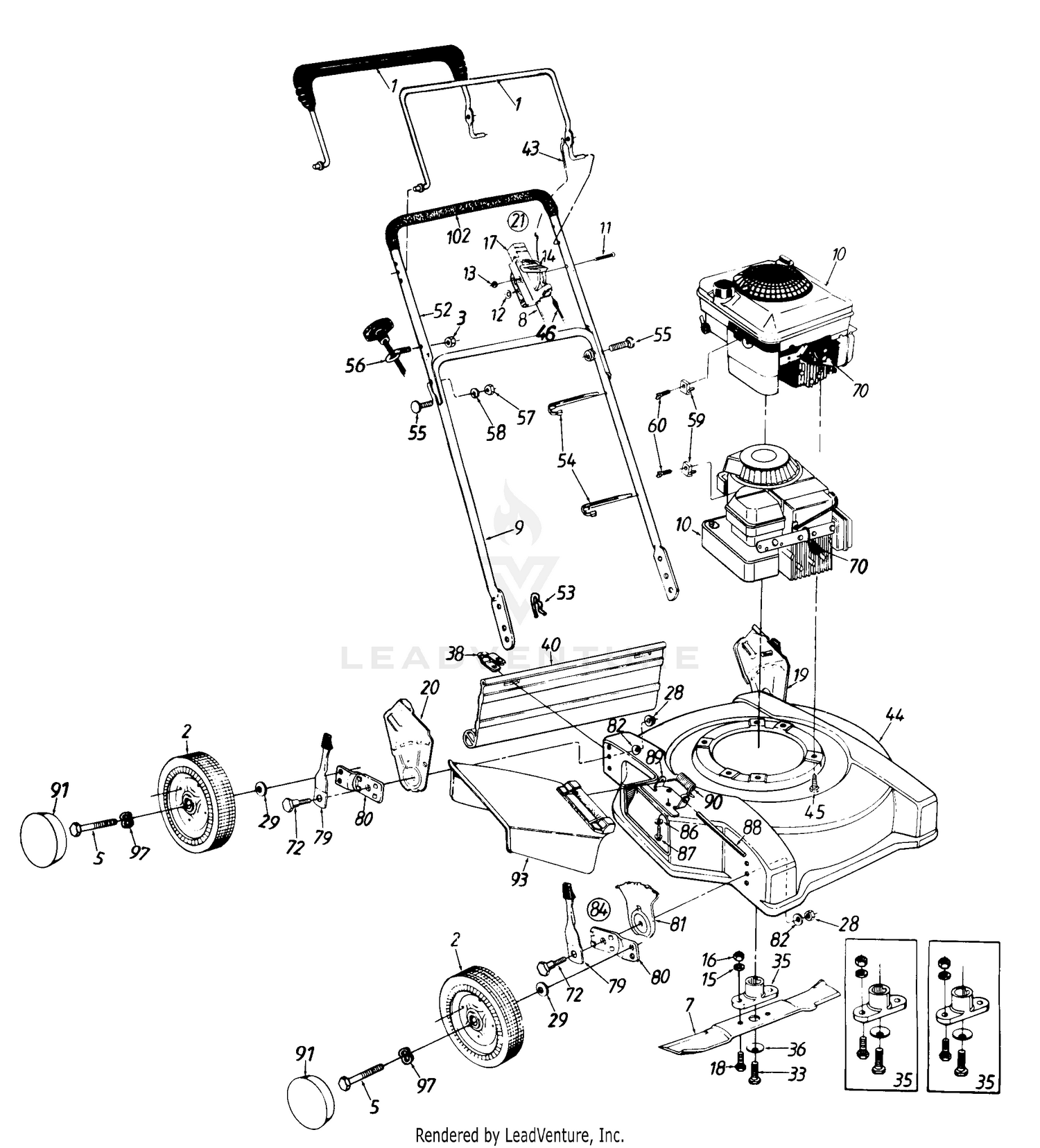

| Ref | Part Number | Description |
|---|
| 3 |
712-0324 |
Hex L-Nut 1/4-20 Thd. Price: $3.38 |
| 5 |
738-0102 |
Axle Bolt Price: $9.22 |
| 9 |
749-0928A-0637 |
Lower Handle This part replaces 749-0372B. Price: $29.67 |
| 10 |
N/A |
Engine |
| 13 |
712-0291 |
Hex L-Nut 1/4-20 Thd. Price: $3.93 |
| 16 |
712-0241 |
Hex Nut 3/8-24 Thd. Price: $3.86 |
| 18 |
710-1055 |
SCREW 3/8-24 C 1.00 GR5 Not Available Price: |
| 19 |
684-3001 |
Wheel Brkt. Ass'y.- L.H. Price: Call Us |
| 20 |
684-3000 |
Wheel Brkt. Ass'y.- R.H. Price: Call Us |
| 29 |
736-0105 |
Bell-Wash..40" I.D. x .88" Price: $3.96 |
| 38 |
17098P |
HINGE CLIP Not Available This part replaces 17098. Price: |
| 43 |
N/A |
UNKNOWN |
| 45 |
710-0654A |
Hex Wash. Hd. TT-Tap Scr. 3/8-16 x 1.00" Lg. Price: $3.75 |
| 53 |
714-0104 |
Intern. Cot. Pin 5/16" Dia. Price: $3.90 |
| 54 |
725-0157 |
Cable Tie This part replaces 726-0240. Price: $3.46 |
| 55 |
710-0671 |
BOLT-CARRIAGE-CURV 5/16-18 x 1.38 Not Available Price: |
| 56 |
710-1205 |
Rope Guide Price: $3.53 |
| 57 |
712-3010 |
HEX NUT 5/16-18 This part replaces 712-0267. Price: $3.89 |
| 72 |
738-0507B |
Shoulder Bolt .50" Dia. Price: $3.86 |
| 79 |
94832 |
Front Spring Lever This part replaces 14832. Price: $9.48 |
| 80 |
15262B |
Pivot Bar Price: $13.59 |
| 81 |
787-01290A |
Height Adjustment Plate This part replaces 15261A. Price: $10.58 |
| 82 |
936-0356 |
BELL WASHER Not Available This part replaces 736-0356. Price: |
| 84 |
753-06761 |
Height Adj. Ass'y. Comp. (R.H.) This part replaces 14578. Price: $57.55 |
| 86 |
736-0270 |
SPRING WASHER BELL Price: $3.63 |
| 87 |
710-0599 |
Hex Wash. Hd. Tap Scr. 1/4-20 x .5" Lg. Price: $3.86 |
| 88 |
747-0710A |
Hinge Pin This part replaces 747-0710. Price: $3.86 |
| 89 |
17032A |
PLATE-ADAPTER Not Available This part replaces 17032. Price: |
| 90 |
932-0593 |
Torsion Spring This part replaces 732-0593. Price: $4.24 |
| 93 |
931-1034B |
CHUTE DEFLECTOR Not Available This part replaces 731-1034. Price: |
