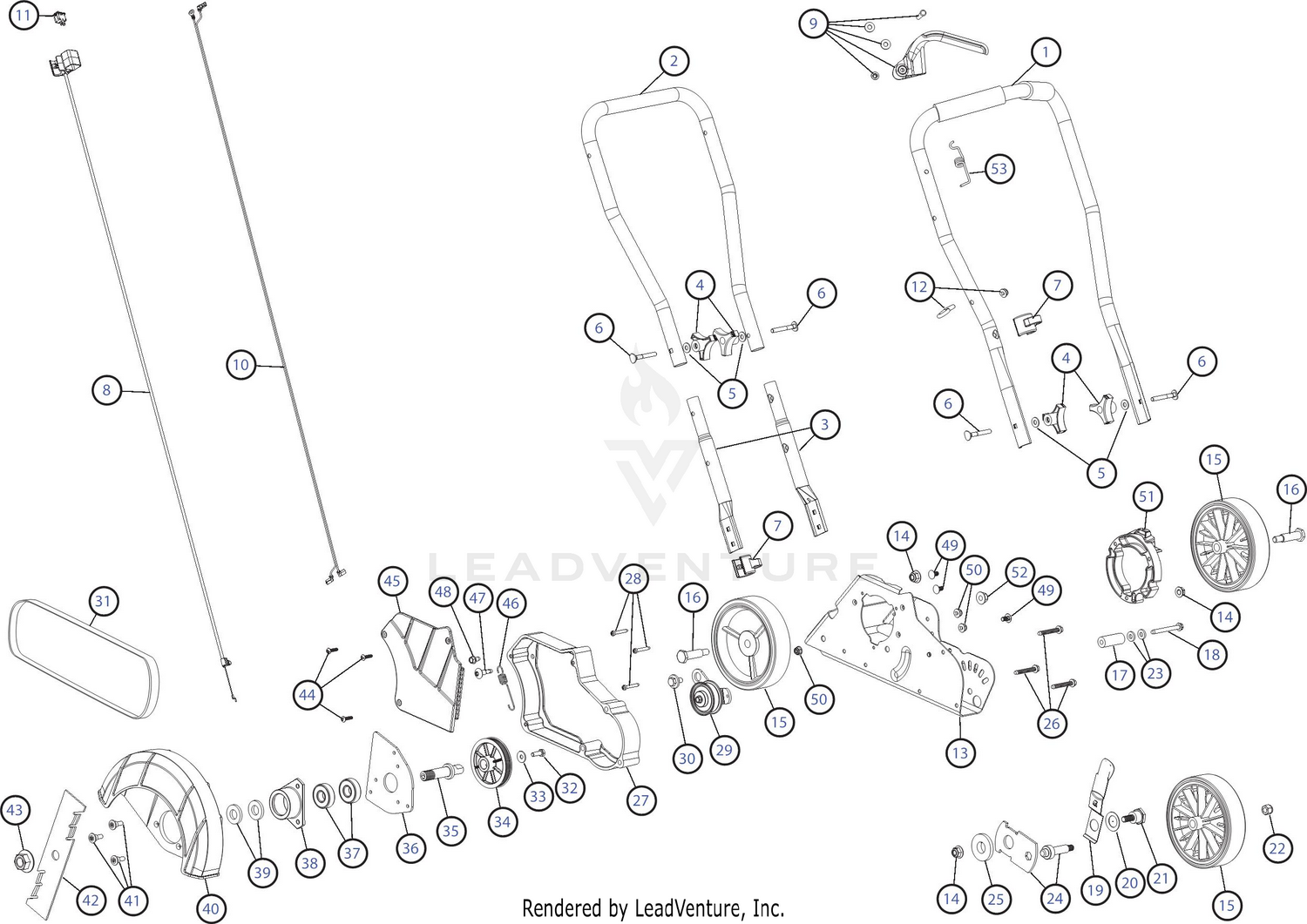

General Assembly
Parts (52)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 753-06542 | Upper Handle Price: $25.15 |
| 2 | 753-06543 | Middle Handle Price: $19.36 |
| 3 | 753-06544 | Handle Extension Price: $6.10 |
| 4 | 791-182677 | Handle Knob Price: $12.48 |
| 5 | 4150 | Washer Price: $2.63 |
| 6 | 791-182899 | Bolt Price: $6.82 |
| 7 | 731-1820 | Cable Guide Price: $7.65 |
| 8 | 753-06546 | Throttle Cable Price: $8.76 |
| 9 | 753-10504 | THROTTLE LEVER This part replaces 753-06592. Price: $5.44 |
| 10 | 9681 | WIRE LEAD Price: $6.17 |
| 11 | 791-182405 | On/Off Switch Price: $9.29 |
| 12 | 753-05524 | Starter Rope Guide Price: $6.01 |
| 13 | 753-06593 | Edger Frame Price: $38.10 |
| 14 | 712-04065 | Lock Nut Price: $3.68 |
| 15 | 734-04261 | Wheel Price: $18.51 |
| 16 | 938-0373 | Wheel Bolt Price: $8.45 |
| 17 | 750-04783 | Spacer Price: $3.36 |
| 18 | 710-1206 | Spacer Screw Price: $6.20 |
| 19 | 687-02582S | PIVOT ARM This part replaces 687-02582. Price: $3.43 |
| 20 | 736-0741 | Washer Price: $3.99 |
| 21 | 738-1172 | Shoulder Screw Price: $5.01 |
| 22 | 712-0130 | Nut Price: $3.61 |
| 23 | 750-04929 | Washer Price: $3.88 |
| 24 | 787-01580 | Pivot Arm Price: $2.72 |
| 25 | 753-06287 | Height Adjustment Spacer Price: $2.16 |
| 26 | 710-1026 | Spindle Plate Screw Price: $5.94 |
| 27 | 753-06556 | Spindle Spacer Price: $2.83 |
| 28 | 753-06559 | Screw Price: $2.32 |
| 29 | 753-05540 | Idler Pulley Assembly Price: $33.52 |
| 30 | 738-0930 | Shoulder Screw Price: $6.07 |
| 31 | 754-04149 | Belt Price: $26.86 |
| 32 | 710-3015 | Screw Price: $3.65 |
| 33 | 736-0270 | SPRING WASHER BELL Price: $3.63 |
| 34 | 756-04087B | Pulley Price: $11.10 |
| 35 | 753-05543 | Blade Spindle Price: $18.96 |
| 36 | 787-01505 | SPINDLE MOUNT PLATE Price: $6.17 |
| 37 | 741-04547 | Bearing Price: $8.29 |
| 38 | 718-04012 | Bearing Cup Price: $19.55 |
| 39 | 736-04088 | Flat Washer .635x1.24x.181 This part replaces 936-04088. Price: $3.90 |
| 40 | 731P05064 | EDGER BLADE GUARD (W/LABEL) This part replaces 731-05064. Price: $23.87 |
| 41 | 738-0706D | Screw Price: $3.89 |
| 42 | 781-0080-0637 | Edger Blade Price: $7.95 |
| 43 | 712-0417A | HEX NUT Price: $6.50 |
| 44 | 710-04194 | Screw Price: $3.66 |
| 45 | 731-05822 | Belt Cover Price: $9.85 |
| 46 | 753-06562 | Spring Price: $2.83 |
| 47 | 753-06563 | Bolt Price: $2.32 |
| 48 | 710-0599 | Screw Price: $3.86 |
| 49 | 710-05177 | CARRIAGE BOLT 1/4-20X.50" This part replaces 753-06565. Price: $4.26 |
| 50 | 712-04064 | Nut Price: $3.64 |
| 51 | 753-06566 | Spacer Price: $5.34 |
| 52 | 753-06564 | Nut Not Available Price: |
