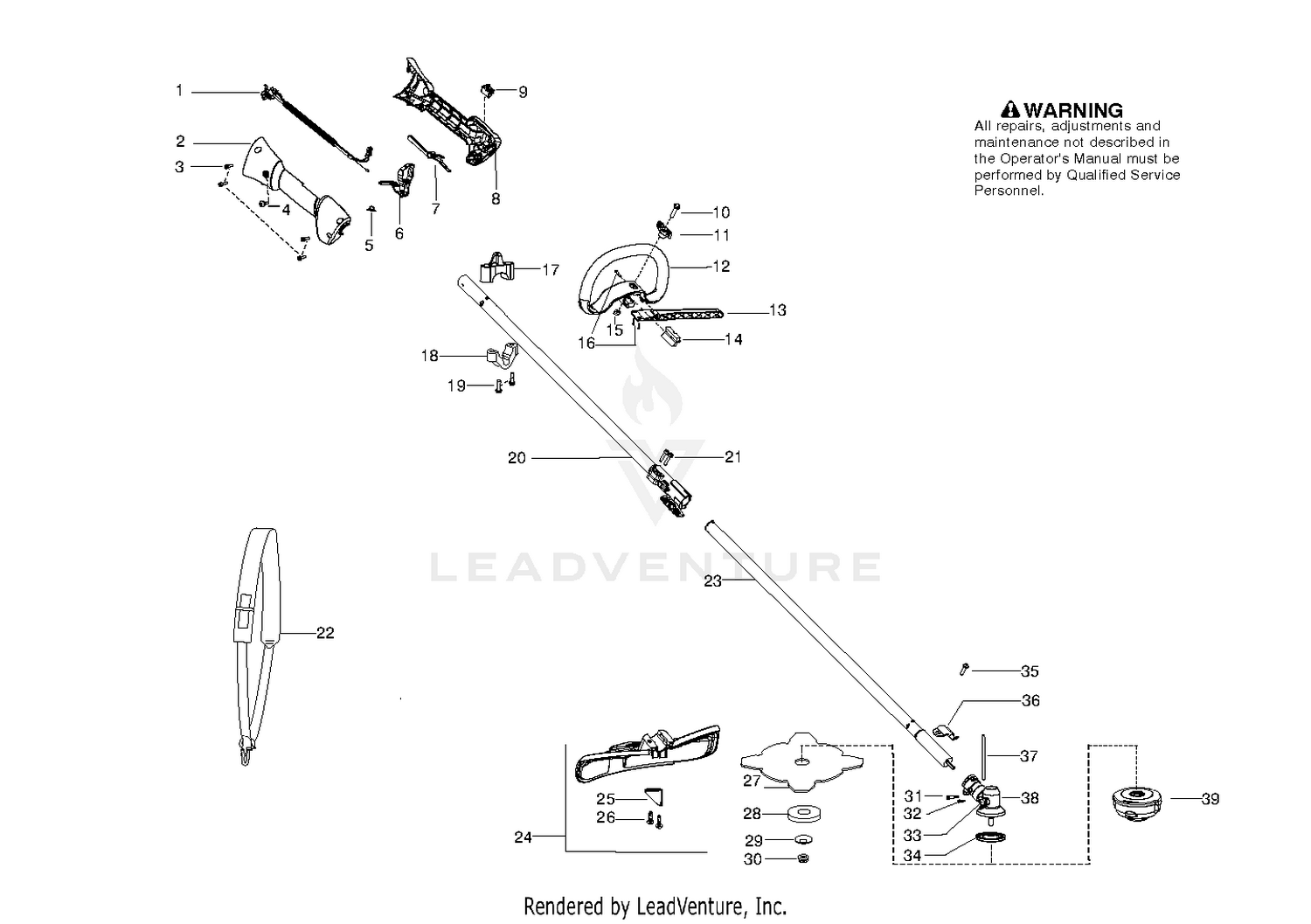

SHAFT HANDLE
Parts (36)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 576139401 | ASSY CABLE / WIRE HARNESS Price: $19.99 |
| 2 | 545223001 | HSG THROTTLE RIGHT HVA Price: $9.99 |
| 3 | 530016449 | SCREW M4 X 1.75 PT 16MM Price: $3.99 |
| 4 | 530015805 | SCREW-10-14 X 1/2 PLASTITE Price: $2.99 |
| 5 | 530016454 | SPRING TRIGGER Price: $4.99 |
| 6 | 574355301 | TRIGGER THROTTLE HVA ORANGE Price: $4.99 |
| 7 | 574355401 | THROTTLE LOCKOUT HVA ORANGE Price: $4.99 |
| 8 | 545223201 | HSG THROTTLE LEFT HVA Price: $5.99 |
| 9 | 545049311 | Switches This part replaces 545049309. Price: $5.99 |
| 10 | 725238051 | SCREW M6X50 Price: $2.99 |
| 11 | 503879001 | KNOB Price: $3.99 |
| 12 | 503871907 | HANDLE LOOP Price: $12.99 |
| 13 | 503997804 | HANDLE Price: $14.99 |
| 14 | 503940301 | SPACER PLASTIC Price: $9.99 |
| 15 | 502197101 | NUT Price: $0.25 |
| 16 | 574181501 | SCREW IHSCFTO Price: $2.99 |
| 17 | 545113301 | CLAMP HARNESS UPPER Price: $4.99 |
| 18 | 545056601 | CLAMP HARNESS LOWER Price: $3.99 |
| 19 | 530015940 | SCREW Price: $2.99 |
| 20 | 545006074 | DRIVESHAFT Price: $79.99 |
| 21 | 503200725 | SCREW Price: $2.99 |
| 22 | 537216202 | Harness - Diagonal with sign Price: $8.99 |
| 23 | 545180849 | KIT LOWER SHAFT Price: $84.99 |
| 25 | 530052286 | Limiter - Line Price: $0.68 |
| 26 | 530015814 | SCREW Price: $0.17 |
| 27 | 596278001 | HUS 10" GRASSBLADE 255-4T 1" This part replaces 504001303. Price: $22.99 |
| 28 | 503890101 | SUPPORTING CUP Price: $14.99 |
| 29 | 537285601 | SUPPORT FLANGE Price: $9.99 |
| 30 | 503856301 | GEARHEAD NUT - BRUSHCUTTER Price: $5.99 |
| 31 | 530016014 | SCREW - CARB. ADAPTOR Price: $2.99 |
| 32 | 545003902 | SCREW Price: $2.99 |
| 33 | 575724601 | PLUG GREASE 9MM Price: $2.99 |
| 34 | 537234901 | DRIVE DISC Price: $19.99 |
| 35 | 530015771 | SCREW 1/4-20 X 7/8 (TAP Price: $3.99 |
| 37 | 502285901 | LOCKING PIN Price: $4.99 |
| 38 | 530096295 | ASSY GEARBOX Price: $34.99 |
