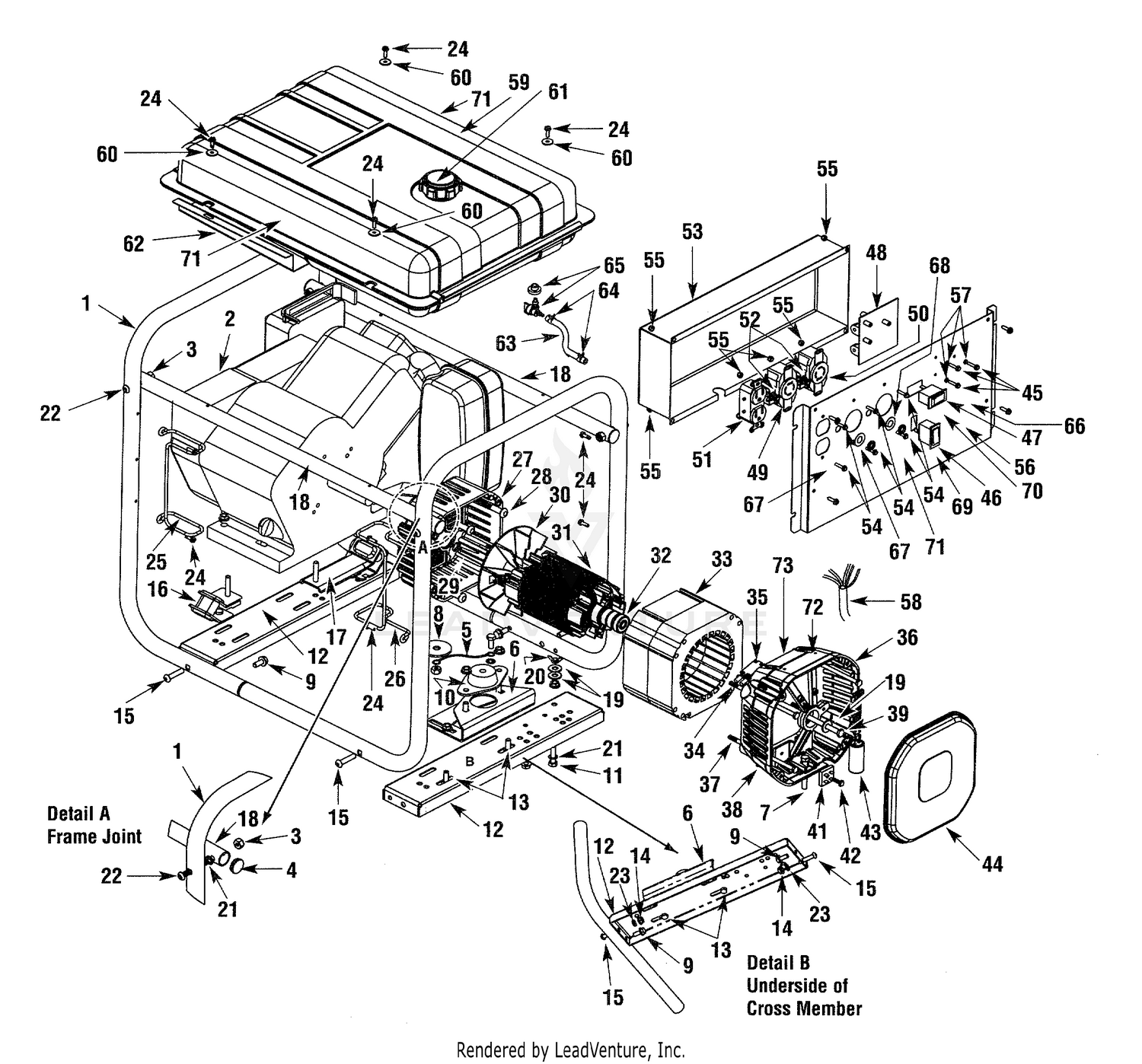

General Assembly

General Assembly

Parts (71)

RefPart NumberDescription
1 1917987 BOX W/CARR Not Available Price:
3 1917873 Nut, 5/16" -18 Nyloc Price: Call Us
4 1917989 PLUG-ENDCA Not Available Price:
5 1917990 Grounding wire, 5-3/4" Price: Call Us
6 1917991 BRACKET-C MOU Not Available Price:
7 1918254 Bolt, 5/16" -18 x 2-1/2" HH Price: Call Us
8 1918195 Flat washer, 2" OD Price: Call Us
9 1918255 Screw, 5/16" -12 x 3/4" thread forming Price: Call Us
10 1917992 ISOLATOR-V Not Available Price:
11 1918256 Bolt, 5/16" -18 x 1-1/4" HH Price: Call Us
12 1917993 CROSS MEMB Not Available Price:
13 1918257 Bolt, 5/16" -18 x 3/4" HH Price: Call Us
14 1918258 Nut, 5/16" serrated flange Price: Call Us
15 1918259 Screw, 5/16" -18 x 1-1/2" SBC Price: Call Us
16 1917994 ISOLATOR-V Not Available Price:
17 1917996 ISOLATOR-E Not Available Price:
18 1917995 Mount, cross bar-gas tank Price: Call Us
19 1918260 Flat washer, 5/16" Price: Call Us
20 1918261 Wing nut, 5/16" -18 Price: Call Us
21 1918190 WASHER-5/1 Not Available Price:
22 1918262 Bolt, 5/16" 18 x 2-1/4" SBC Price: Call Us
23 1917887 Washer, 5/16" split-ring lock Price: Call Us
24 1918265 Screw, #10 self tapping Price: Call Us
25 1918206 HOLDER-COR Not Available Price:
26 1918225 HOLDER-COR Not Available Price:
27 1917997 Adapter, engine Price: Call Us
28 1918263 Screw, 3/8" -16 x 3/4" button socket Price: Call Us
29 1918264 Screw, No. 8 -18 x 5/8" Price: Call Us
30 1911998 Fan, rotor Price: Call Us
31 1917999 ASSEMBLY-ROTOR Not Available Price:
32 1918000 BEARING-RO Not Available Price:
33 1918001 ASSM-STATO Not Available Price:
34 1918002 Kit, brush Price: Call Us
35 1918207 HOLDER, BRUSH Not Available Price:
36 1918003 BEAE-RINGN Not Available Price:
37 1918004 Bolt, 1/4" x 20 hex Price: Call Us
38 1918007 Screw, 18 Hi-Lo Price: Call Us
39 1918005 Bolt, 5/16" x 24 hex Price: Call Us
41 1918048 Rectifier, 200V, 8 Amp Price: Call Us
42 1918297 Screw, #10 self tapping type "F" Price: Call Us
43 1918008 ASSM-CAPAC Not Available Price:
44 1918009 Cover, end Price: Call Us
45 1918270 Screw, #6 - 32 X 1/4" pan head Price: Call Us
46 1918023 SWITCH-ON/OFF ROCK Not Available Price:
47 1918024 SWITCH-ON/OFF ROCK Not Available Price:
48 1918022 BOARD-CIRC Not Available Price:
49 1918021 RECEPTACLE Not Available Price:
50 1918020 RECEPTACLE Not Available Price:
51 1918018 RECEPTACLE Not Available Price:
52 1918017 BREAKER-CIRCUIT 52 Not Available Price:
53 1918197 Cover, power panel rear Price: Call Us
54 1918268 Bolt, #8 - 32 hex head Price: Call Us
55 1918266 Nut, #8 - 32 Nyloc hex Price: Call Us
56 1918019 Panel, power control Price: Call Us
57 1918269 Washer, #6 lock Price: Call Us
58 1918198 CABLE (524 Not Available Price:
59 1918014 FUEL TANK Not Available Price:
60 1918015 Washer, fuel tank mounting Price: Call Us
61 1918016 CAP W/GAUG Not Available Price:
62 1918013 Shield, heat Price: Call Us
63 1918011 FUEL LINE Not Available Price:
64 1918010 Clamp, fuel line Price: Call Us
65 1918012 KIT-FUEL V Not Available Price:
66 DK399409AV Decal, warning control Price: Call Us
67 DK399410AV Decal, 120V black Price: Call Us
68 DK399454AV Decal, 120V/240V black Price: Call Us
69 DK399455AV Decal, idle control Price: Call Us
70 DK399456AV Decal, full power control Price: Call Us
71 DK399534AV Decal, tank Price: Call Us
72 DK660105AJ Decal, UPC Price: Call Us
73 DK660205AJ Decal, Model Price: Call Us
