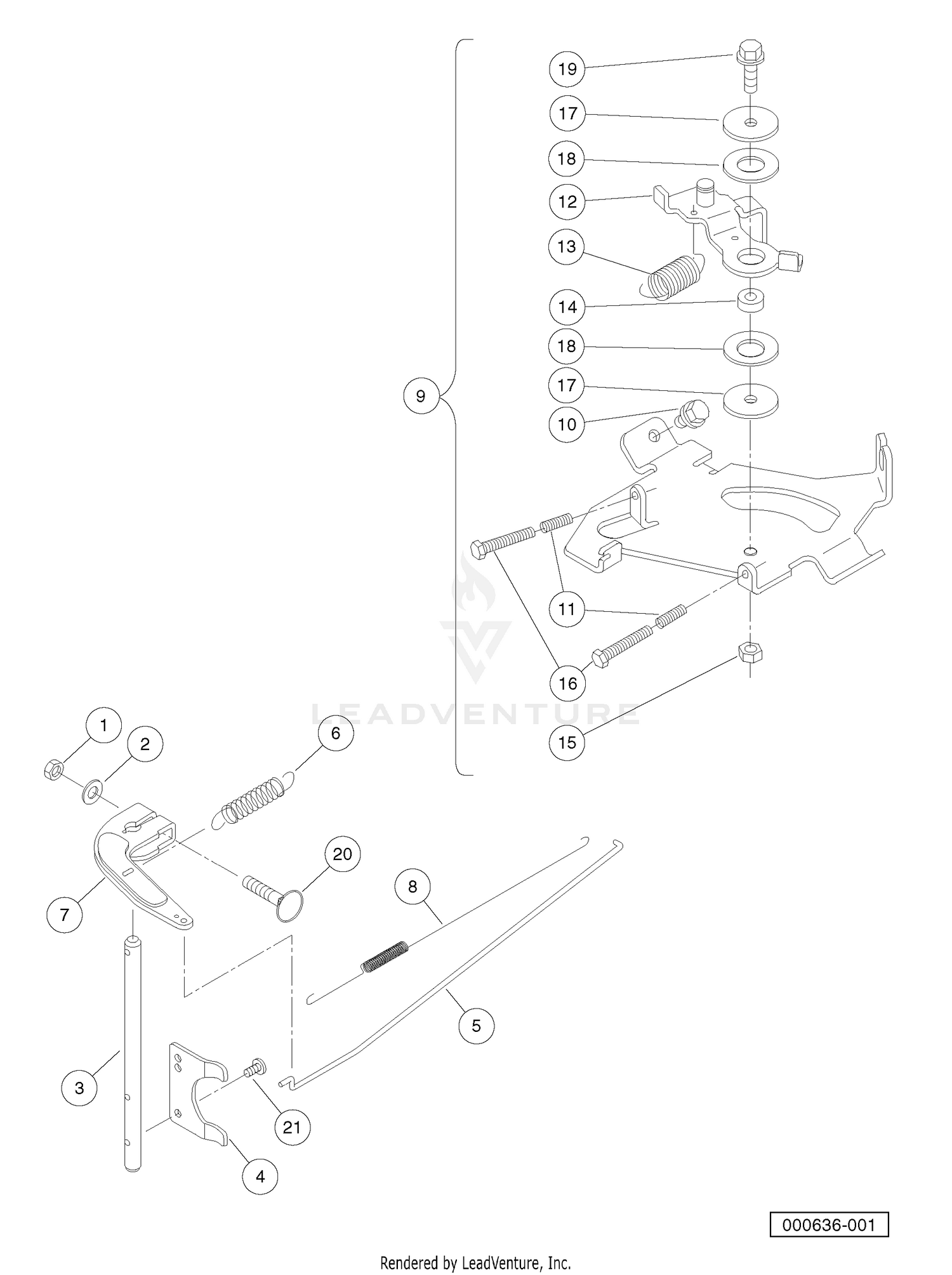

| Ref | Part Number | Description |
|---|
| 1 |
1012919 |
Nut -6mm- Price: Call Us |
| 1 |
3290-467 |
PIN-HAIR Price: $0.27 |
| 2 |
1016513 |
Washer, M6 Flat Price: Call Us |
| 2 |
237-141 |
GROMMET-RUBBER Price: $2.39 |
| 3 |
103002001 |
Shaft, Governor, Fh Price: Call Us |
| 3 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 4 |
103002101 |
Plate, Governor, Fh Price: Call Us |
| 4 |
106-1057 |
KIT-CLUTCH BRACKETS This part replaces 86-2590. Price: $221.30 |
| 5 |
103002301 |
Link, Arm, Governor, Fh Price: Call Us |
| 5 |
32128-19 |
NUT-HF Price: $0.99 |
| 6 |
103002401 |
Spring, Governor, Fh Price: Call Us |
| 6 |
92-0625 |
FLAT PULLEY ASM Price: $75.60 |
| 7 |
103002501 |
Arm, Governor, Shaft Price: Call Us |
| 7 |
92-9722 |
V-PULLEY ASM Price: $211.52 |
| 8 |
103002901 |
Spring, Arm, Governor, Fh Price: Call Us |
| 8 |
119-4162 |
SCREW-CARR This part replaces 323-13. Price: $1.73 |
| 9 |
86-1820-01 |
BRACKET-PULLEY Price: $18.96 |
| 10 |
102992401 |
Bolt, Flg, M6 X 1.0 X 12 Price: Call Us |
| 10 |
32144-70 |
SCREW-HWHTF Price: $1.99 |
| 11 |
103002801 |
Spring, Fh Price: Call Us |
| 11 |
3296-25 |
NUT-LOCK, NI Price: $1.34 |
| 12 |
103297401 |
Lever, Governor, Control, Fh Price: Call Us |
| 12 |
32121-11 |
PIN-ROLL Price: $0.47 |
| 13 |
103297501 |
Spring, Governor Return, Fh Price: Call Us |
| 13 |
48-7081 |
GRIP-PLASTIC Price: $7.54 |
| 14 |
103297601 |
Collar, Governor, Fh Price: Call Us |
| 14 |
86-2400-01 |
LATCH-ARM Price: $109.47 |
| 15 |
103297801 |
Nut, Governor, Fh Price: Call Us |
| 15 |
325-5 |
SCREW-HH Price: $1.20 |
| 16 |
103298001 |
Bolt, Speed Control, Fh Price: Call Us |
| 16 |
3290-483 |
WASHER-CONICAL Price: $7.61 |
| 17 |
103298201 |
Washer, Governor, Lower, Fh Price: Call Us |
| 17 |
86-1560 |
SPACER-CYLINDER, LIFT Price: $23.34 |
| 18 |
103298301 |
Washer, Governor, Middle, Fh Price: Call Us |
| 18 |
86-2600-01 |
WASHER-GUIDE, BELT This part replaces 86-2600. Price: $5.77 |
| 19 |
103298501 |
Bolt, Flanged, M6 X 20, Kaw Price: Call Us |
| 19 |
86-1490 |
END-ROD, LH THREAD Price: $84.31 |
| 20 |
103298101 |
Bolt, M6 X 35, Kawasaki Price: Call Us |
| 20 |
3220-12 |
NUT-HEX JAM LH Price: $1.83 |
| 21 |
86-1570 |
ROD-THREADED Price: $55.04 |
| 22 |
3220-5 |
NUT-JAM This part replaces 3220-5-01. Price: $0.65 |
| 23 |
86-1550 |
END-ROD, RH THREAD Price: $79.70 |
| 24 |
325-7 |
SCREW-HH Price: $1.53 |
| 25 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 26 |
92-4033-01 |
TRAP-DOOR Price: $141.84 |
| 27 |
256-243 |
BEARING-FLANGE Price: $9.99 |
| 28 |
3296-25 |
NUT-LOCK, NI Price: $1.34 |
