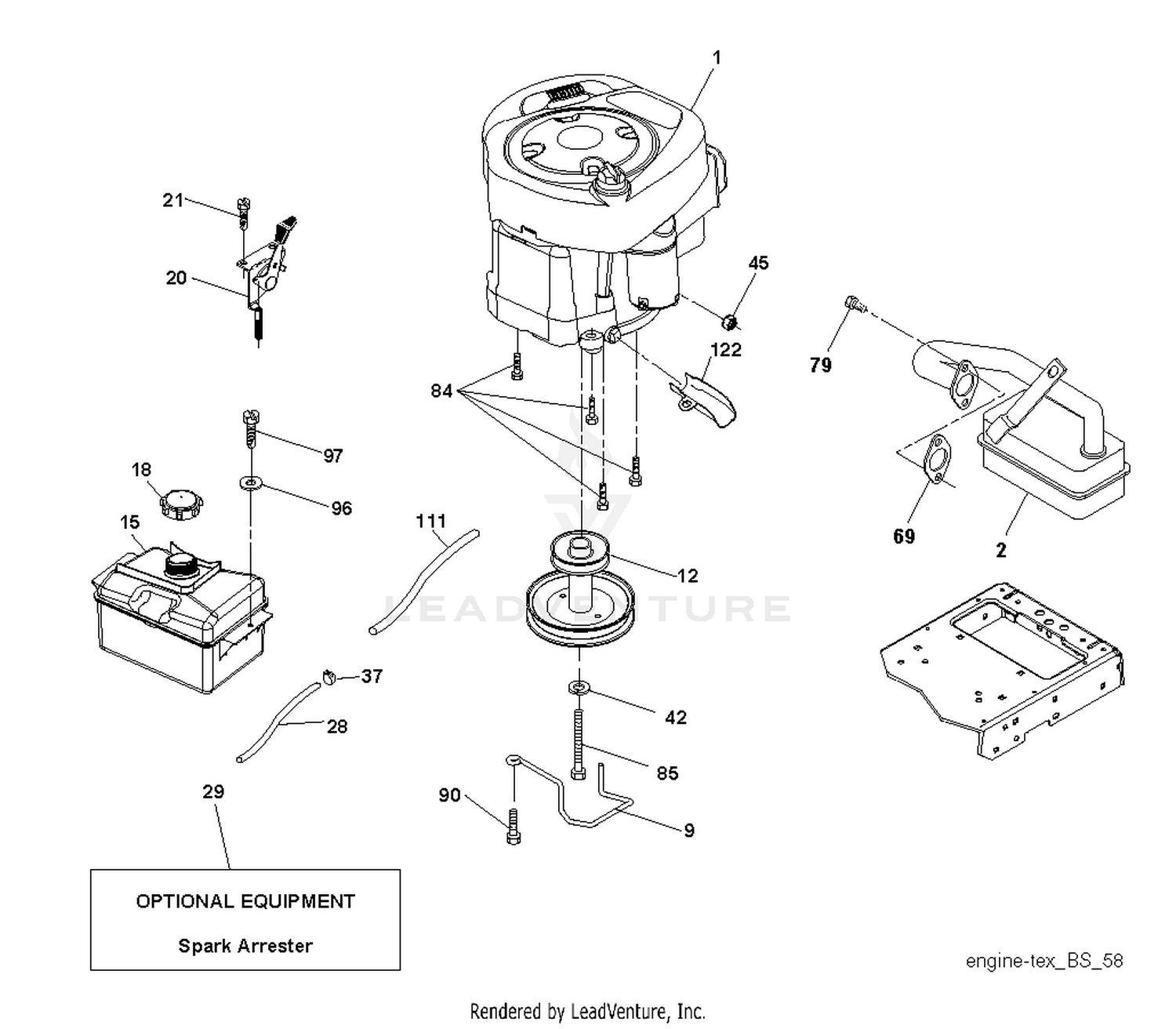

| Ref | Part Number | Description |
|---|
| 1 |
92-1354 |
CAP-END Price: $2,256.45 |
| 2 |
532137352 |
MUFFLER.LT.BRIGGS.14HP.IC/OHV Price: $39.99 |
| 2 |
98-7897 |
VALVE - RELIEF This part replaces 92-1355. Price: $307.38 |
| 4 |
75-0240 |
O-RING Price: $2.36 |
| 5 |
110-6342 |
SPRING This part replaces 75-0140. Price: $9.45 |
| 6 |
98-7897 |
VALVE - RELIEF This part replaces 84-0550. Price: $307.38 |
| 7 |
92-1356 |
VALVE-SCREW Price: $147.12 |
| 8 |
84-0480 |
POPPET-RELIEF, CHARGE Price: $54.48 |
| 9 |
532194319 |
KEEPER.BELT.ENGINE.3.25 (3 2) Price: $11.99 |
| 9 |
84-0490 |
SPRING-COMPRESSION Price: $15.55 |
| 10 |
92-1353 |
SHIM KIT Price: $36.78 |
| 11 |
28-3570 |
O-RING Price: $6.06 |
| 12 |
532140186 |
PULLEY.ENG.CL.MECH.SLVR.LT/YT Price: $99.99 |
| 12 |
84-0500 |
CHARGE RELIEF PLUG ASM Price: $37.39 |
| 13 |
75-0500 |
BEARING-NEEDLE Price: $83.78 |
| 14 |
84-0210 |
GASKET-CAP, END Price: $27.88 |
| 15 |
532433003 |
TANK.ASM.1.5GAL.FRT.W/CAP.EPA Price: $179.99 |
| 15 |
94-3975 |
PIN This part replaces 75-0480. Price: $5.80 |
| 16 |
84-0460 |
SCREW-HWHTF Price: $4.27 |
| 17 |
84-0440 |
COVER-TRUNNION Price: $235.07 |
| 18 |
532438596 |
CAP.2.25'.VENTED.TETHER .EPA Price: $29.99 |
| 18 |
84-0430 |
O-RING Price: $6.94 |
| 19 |
84-0270 |
SPACER-TRUNNION Price: $43.60 |
| 20 |
532176636 |
CONTROL.TH/CK.C.BLACK This part replaces 532183897. Price: $27.99 |
| 20 |
84-0570 |
SHIM-TRUNNION, COMPOSITE Price: $44.85 |
| 21 |
596321701 |
Screws This part replaces 532416358. Price: $2.99 |
| 21 |
84-0260 |
BEARING-ROLLER, TAPERED Price: $135.12 |
| 22 |
353-551 |
PLUG-HH Price: $18.48 |
| 23 |
237-80 |
O-RING Price: $6.10 |
| 24 |
84-0360 |
WASHER Price: $3.60 |
| 25 |
84-0330 |
SCREW-HH Price: $9.87 |
| 26 |
84-0300 |
SHAFT-PUMP Price: $416.83 |
| 27 |
84-0310 |
DISCONTINUED Price: Call Us |
| 28 |
587044822 |
HOSE.1/4".LOW.PERM.FUEL.LN.22" This part replaces 532401137. Price: $9.99 |
| 28 |
84-0320 |
RING-RETAINING Price: $1.32 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 29 |
84-0400 |
SEAL-LIP Price: $20.85 |
| 30 |
84-0410 |
DISCONTINUED Price: Call Us |
| 31 |
28-3520 |
O-RING Price: $8.44 |
| 32 |
84-0380 |
RING-RETAINING, INT. Price: $12.75 |
| 33 |
84-0240 |
HOUSING-PUMP Price: $1,872.02 |
| 34 |
84-0470 |
SEAL-LIP Price: $41.78 |
| 35 |
84-0450 |
COVER-TRUNNION Price: $352.66 |
| 36 |
84-0250 |
SWASHPLATE-VARIABLE Price: $1,011.82 |
| 37 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 37 |
75-0400 |
PLATE-THRUST Price: $41.27 |
| 38 |
75-0470 |
CYLINDER BLOCK KIT Price: $1,746.91 |
| 39 |
84-0280 |
PLATE-VALVE, RH Price: $391.57 |
| 40 |
75-0510 |
PIN Price: $8.40 |
| 41 |
92-1358 |
DISCONTINUED Price: Call Us |
| 42 |
596238901 |
Washers This part replaces 810040700. Price: $2.99 |
| 42 |
92-1352 |
PLUG Price: $30.00 |
| 45 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 69 |
596135301 |
Washers This part replaces 819091416. Price: $2.99 |
| 79 |
817060620 |
SCREW.3/8-16 Price: $5.99 |
| 84 |
817060620 |
SCREW.3/8-16 Price: $5.99 |
| 85 |
501606501 |
BOLT.HEX.7/16-20X4.GR5.1.5BLUE This part replaces 532173937. Price: $2.99 |
| 90 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 96 |
596135301 |
Washers This part replaces 819091416. Price: $2.99 |
| 97 |
817670412 |
SCREW HEXWSHR 1/4-20X3/4 Price: $3.99 |
| 111 |
587044580 |
Hoses This part replaces 532414119. Price: $9.99 |
