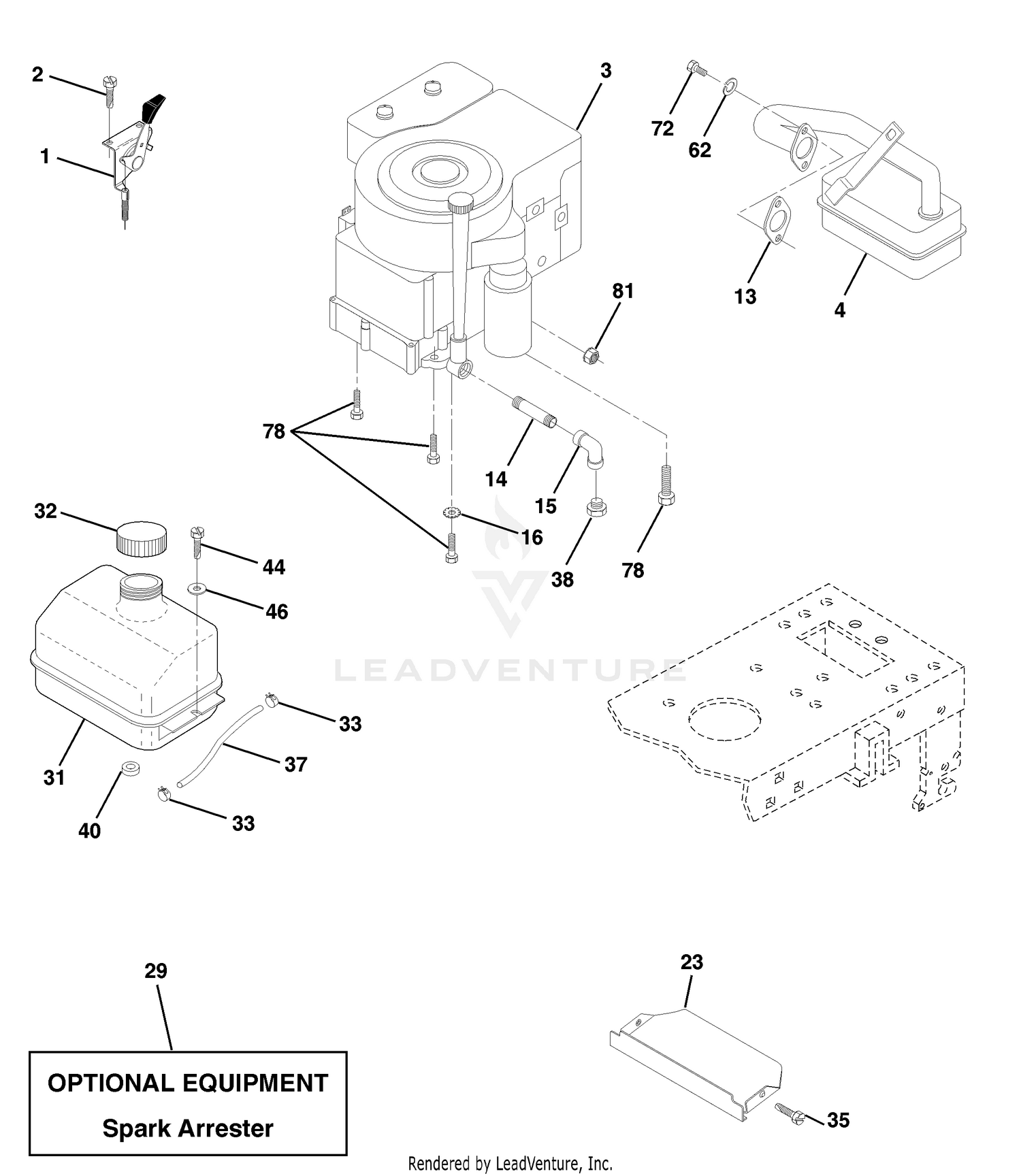

| Ref | Part Number | Description |
|---|
| 1 |
52-9260 |
SCREW-SET Price: $8.09 |
| 1 |
532170551 |
CONTROL.THROTTLE/CHOKE.BLACK This part replaces 532140310. Price: $24.99 |
| 2 |
596582501 |
Bolts This part replaces 817720410. Price: $2.99 |
| 3 |
52-9230 |
RING-RETAINING Price: $26.68 |
| 4 |
52-9240 |
BUSHING Price: $65.67 |
| 4 |
532137348 |
MUFFLER.SINGLE.B&S.10-12HP Price: $89.99 |
| 7 |
59-6730 |
RACE Price: $10.63 |
| 8 |
59-6740 |
BEARING Price: $28.82 |
| 11 |
59-6820 |
CENTERING SPRING KIT Price: $50.64 |
| 13 |
532272293 |
GASKET.ENG.1.313 ID.TIN PLATED Price: $8.99 |
| 14 |
813280324 |
Nipple Pipe 3/8 Npt X 3" Price: $3.12 |
| 14 |
92-9732 |
PLATE-WEAR Price: $101.64 |
| 15 |
52-9320 |
DRIVE Price: $141.01 |
| 15 |
532428287 |
VALUE.OIL.DRAIN This part replaces 813200300. Price: $14.99 |
| 16 |
596238701 |
Washers This part replaces 811050600. Price: $3.99 |
| 16 |
76-6300 |
GEROTOR ASM Price: $478.69 |
| 17 |
76-6320 |
SPACER Price: $9.40 |
| 18 |
92-9730 |
CAP-END Price: $167.54 |
| 19 |
92-9736 |
SCREW-CAP Price: $4.82 |
| 20 |
59-6830 |
CENTERING PIN KIT Price: $3.98 |
| 21 |
52-9290 |
RETAINER-CHECKBALL Price: $15.41 |
| 22 |
52-9280 |
CHECKBALL Price: $7.01 |
| 23 |
532159880 |
PROTECTOR Price: $7.99 |
| 24 |
52-9270 |
SEAT-CHECKBALL Price: $35.12 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 31 |
532184900 |
TANK.ASM.FUEL.FRONT.W/CAP This part replaces 532109202. Price: $39.99 |
| 32 |
581075501 |
CAP.2.25'.VENTED.RATCHET.EPA This part replaces 532140527. Price: $22.99 |
| 33 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 35 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 817490512. Price: $3.99 |
| 37 |
587044820 |
HOSE 1/4" LOW PERMEATION FUEL This part replaces 532137040. Price: $9.99 |
| 40 |
532124028 |
BUSHING.SNAP.NYL.BLK. Price: $4.99 |
| 44 |
874760412 |
BOLT.HEX.1/4.X.3/4.DICHROMATE This part replaces 817490412. Price: $3.99 |
| 46 |
596135301 |
Washers This part replaces 819091416. Price: $2.99 |
| 62 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040500. Price: $2.99 |
| 72 |
596134201 |
Screws This part replaces 871070512. Price: $2.99 |
| 78 |
874760620 |
BOLT This part replaces 817490620. Price: $4.99 |
