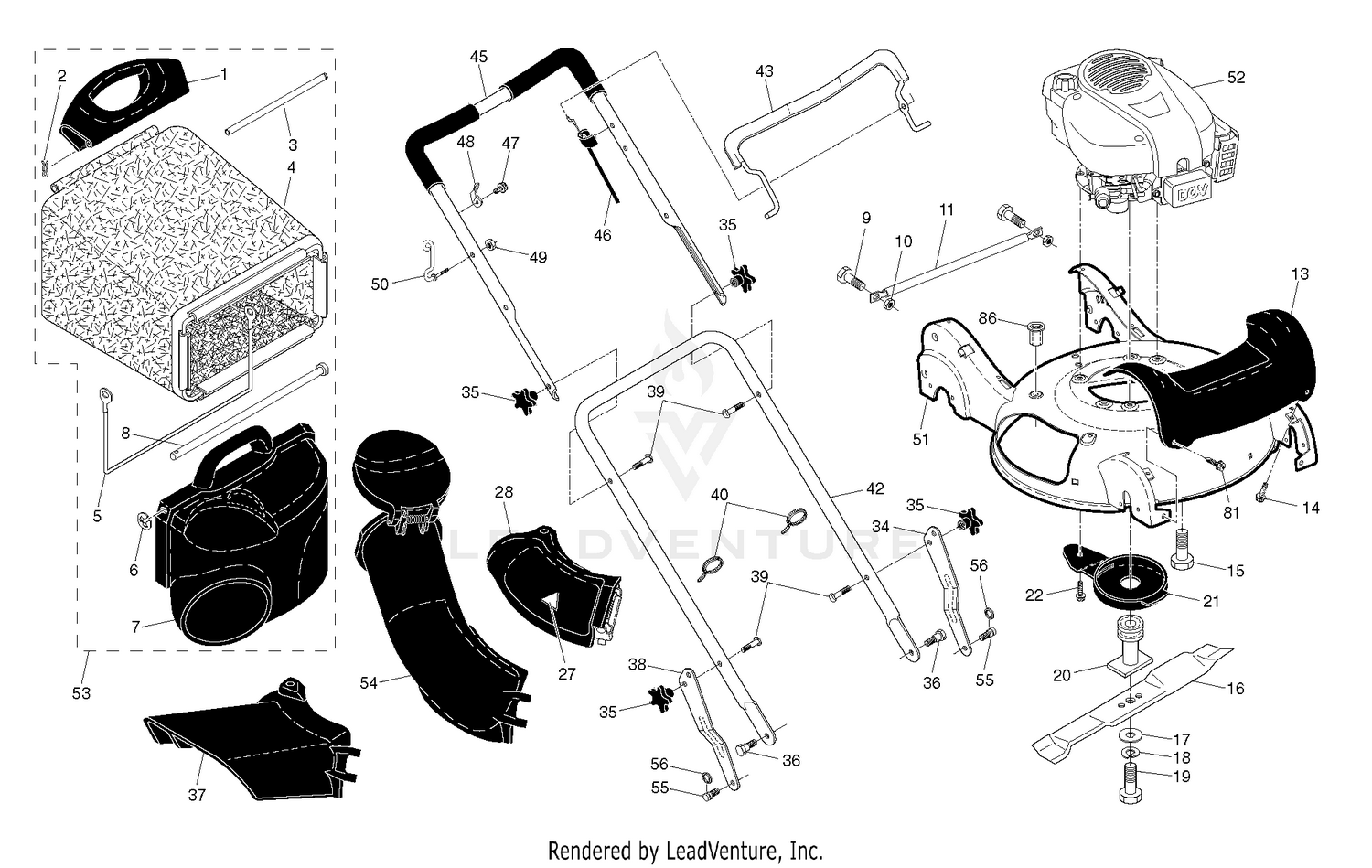

| Ref | Part Number | Description |
|---|
| 1 |
532190582 |
HANDLE.GRASSBAG.REAR.H-GRAY Price: $12.99 |
| 2 |
532065322 |
COTTER PIN (3 2)(2 2MC) Price: $3.99 |
| 3 |
532183483 |
ROD.REAR.HANDLE.YELLOW Price: $4.99 |
| 4 |
532401898 |
Grassbag Price: Call Us |
| 5 |
532188506 |
FRAME, GRASSBAG Price: $22.99 |
| 6 |
812000014 |
E-RING Price: $3.99 |
| 7 |
532188498 |
DOOR.GRASSBAG.H-GRAY This part replaces 532190581. Price: $43.99 |
| 8 |
532183479 |
ROD, PIVOT Price: $12.99 |
| 9 |
872140405 |
BOLT T Price: $3.99 |
| 10 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 873800400. Price: $1.99 |
| 11 |
532188359 |
TUBE.SKIRT.HV.RWGD.BLACK This part replaces 532190692. Price: $27.99 |
| 13 |
532414958 |
COVER.FRONT.21.HV.H-GRAY Price: $19.99 |
| 14 |
532199422 |
SCREW, HEX WASHER HEAD Price: $3.99 |
| 16 |
532415076 |
Blade, 21" Price: Call Us |
| 17 |
532851074 |
WASHER,HARDEN Price: $3.99 |
| 18 |
596238701 |
Washers This part replaces 532850263. Price: $3.99 |
| 19 |
532191760 |
BOLT.HD.HEAD.3/8-24X2.50 (2 2) Price: $4.99 |
| 20 |
532186766 |
ADAPTER.BLADE Price: $32.99 |
| 21 |
532188510 |
SHIELD.DEBRIS.21.HV.RWGD.BLACK This part replaces 532190516. Price: $9.99 |
| 22 |
817600406 |
SCREW 1/4X20 Price: $2.99 |
| 27 |
581579101 |
DECAL.CUTFINGER.CE.02 This part replaces 532182166. Price: $3.99 |
| 28 |
532433368 |
NEEDS DESCRIPTION Price: Call Us |
| 34 |
532187063 |
BRKT.ADJ.LOWER.HDL.LH This part replaces 532190619. Price: $8.99 |
| 35 |
532182398 |
KNOB.HANDLE.PLASTIC.STAR.BLACK Price: $5.99 |
| 36 |
532194187 |
SCREW.5/16X.680.TRIM.H Price: $5.99 |
| 37 |
532433420 |
Price: Call Us |
| 38 |
532190621 |
BRACKET.ADJ.LOWER.HDL.RT.GREY Price: $5.99 |
| 39 |
532191574 |
BOLT, HANDLE 5/16-18X1.75 Price: $5.99 |
| 40 |
532007192 |
WIRE TIE This part replaces 532066426. Price: $7.99 |
| 42 |
532187096 |
HANDLE.LOWER.GREY Price: $27.99 |
| 43 |
532426812 |
BAIL.CONTROL.MZR.BS.ORANGE Price: $37.99 |
| 45 |
532186296 |
HANDLE.ASM.UPPER.W/GRIP Price: $44.99 |
| 46 |
583314001 |
CABLE.MZR.SNAP-IN This part replaces 532408885. Price: $11.99 |
| 47 |
532178848 |
SCREW Price: $3.99 |
| 48 |
532430034 |
BRACKET.UPSTOP.RT Price: $5.99 |
| 49 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 532132004. Price: $1.99 |
| 50 |
532188501 |
GUIDE.ROPE.WALK.MOWER Price: $12.99 |
| 51 |
532433366 |
Price: Call Us |
| 53 |
532401896 |
Grassbag Assembly, Complete Price: Call Us |
| 54 |
532433359 |
Price: Call Us |
| 55 |
532194192 |
STUD.SHOULDER.T45.BZP Price: $4.99 |
| 56 |
812000058 |
E-RING 7/16 RE Price: $2.99 |
| 81 |
532194189 |
SCREW.HWH.13-16-5.8.BZP Price: $4.99 |
| 86 |
532432234 |
Price: Call Us |
