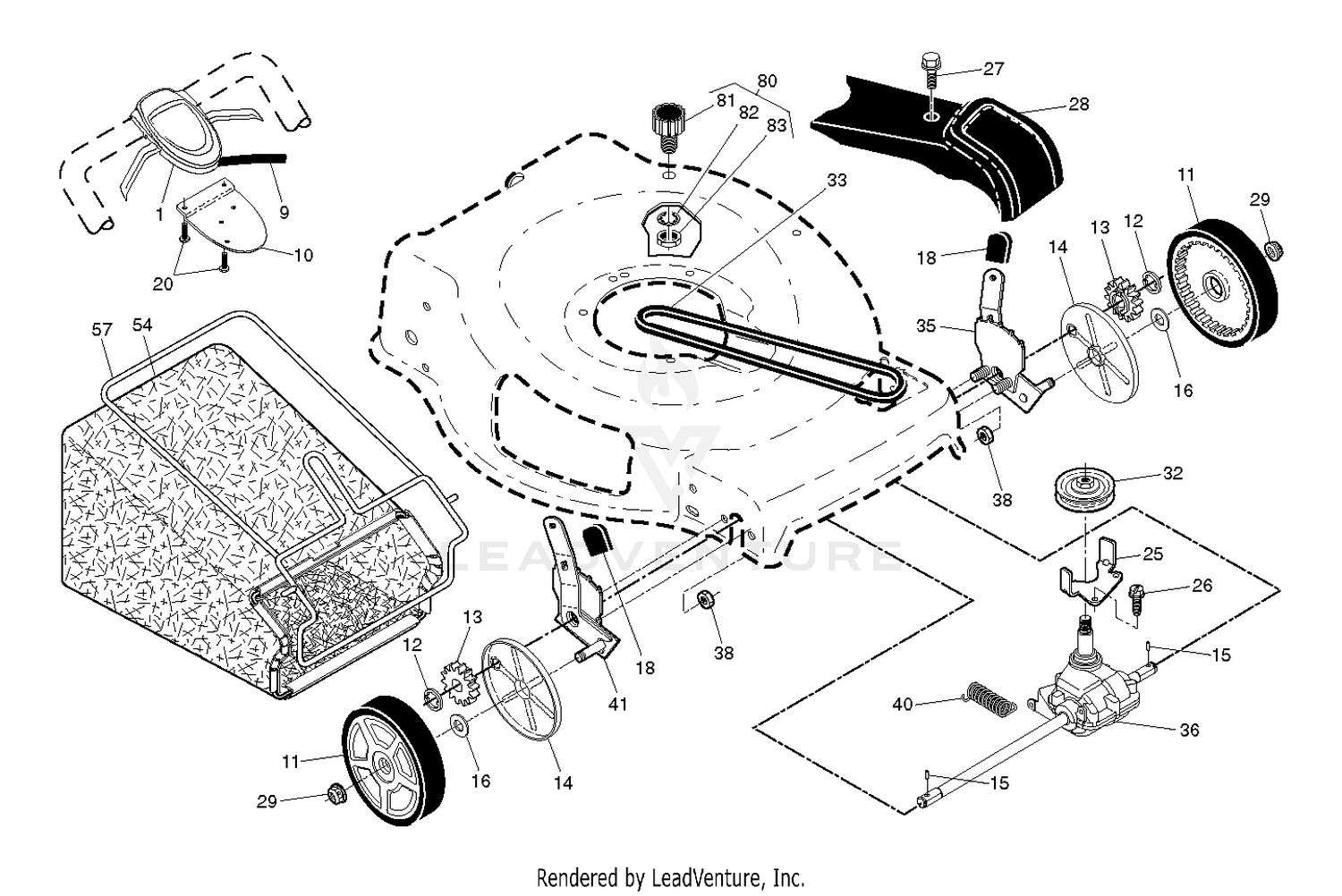

| Ref | Part Number | Description |
|---|
| 1 |
107-7773 |
SCREW-HSH Price: $8.36 |
| 1 |
579708910 |
CNTROL.AW22+FGD.ST.GEN.BLK/B Price: $74.99 |
| 2 |
3234-7 |
SCREW-HHF Price: $1.99 |
| 3 |
107-2996 |
FRONT GRASS SHIELD ASM Price: $69.51 |
| 4 |
125-2098 |
SHIELD-GRASS, REAR (5 INCH) Price: $62.97 |
| 5 |
3256-74 |
WASHER-FLAT Price: $0.27 |
| 6 |
322-14 |
SCREW-HH Price: $1.01 |
| 7 |
110-1706 |
DEFLECTOR Price: $4.76 |
| 9 |
532431649 |
CABLE.CONTROL.22FGD.GEN2 Price: $39.99 |
| 10 |
532432790 |
BRACKET.DRIVE.CONTR.GEN2.BLACK Price: $2.99 |
| 11 |
532430452 |
RP.WHEEL.8X1.75.5SPK.RAD3.BLCK This part replaces 581009201. Price: $19.99 |
| 12 |
812000058 |
E-RING 7/16 RE Price: $1.99 |
| 13 |
532403849 |
PINION.14.TEETH.FGD Price: $3.99 |
| 14 |
581840401 |
COVER.DUST.WHEEL.INNER.WALK Price: $2.99 |
| 15 |
532404845 |
PAWL, DRIVE Price: $2.99 |
| 16 |
532067725 |
WASHER FLUT Price: $3.99 |
| 18 |
532701037 |
SELECTOR KNOB Price: $2.99 |
| 20 |
532181698 |
SCREW, PHILLIPS HEAD 10 X 5/8 Price: $3.99 |
| 25 |
532430458 |
BRACKET.BELT.GUIDE.22+FGD This part replaces 532431711. Price: $2.99 |
| 26 |
532163409 |
SCREW Price: $3.99 |
| 27 |
532175262 |
SCREW, HEX HD TAPPING #10-24 1 Price: $3.99 |
| 28 |
532432674 |
COVER.DR.ASM.421086.CE This part replaces 532421086. Price: $11.99 |
| 29 |
532409148 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT Price: $2.99 |
| 32 |
532443262 |
PULLEY.DRIVE.EZ/VARI.SCREWON Price: $8.99 |
| 33 |
532196853 |
BELT.DRIVE.FGD. Price: $12.99 |
| 36 |
532424741 |
TRANSMISSION.22+.FWGD.SS Price: $64.99 |
| 38 |
532191730 |
NUT.HEX.FLANGE.1/4 Price: $3.99 |
| 40 |
532406558 |
SPRING Price: $2.99 |
| 54 |
580947309 |
GBAG.A1640416S.BLK.PPRO.MRG. Price: $49.99 |
| 57 |
585054702 |
FRAME.GBAG.22+.BLK This part replaces 532419951. Price: $12.99 |
| 80 |
532421114 |
KIT.WASH-OUT.PORT Price: $12.99 |
| 81 |
532421114 |
KIT.WASH-OUT.PORT This part replaces 532419735. Price: $12.99 |
| 82 |
532415585 |
WASHER.LOCK.INTERNAL.TOOTH Price: $1.99 |
