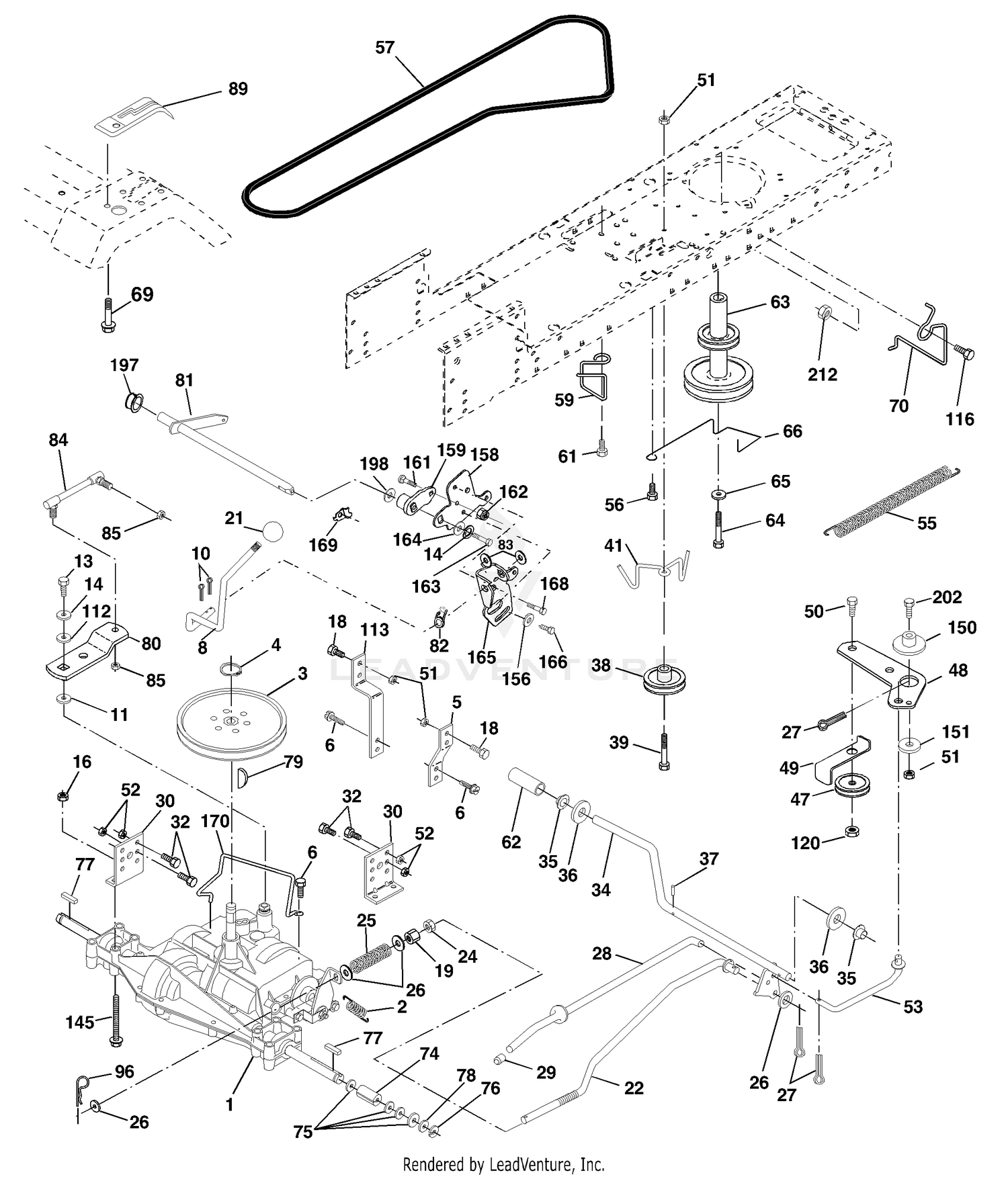

| Ref | Part Number | Description |
|---|
| 1 |
98-0647 |
HOSE-HYD, TRACTION, RH (LOWER) Price: $162.42 |
| 2 |
146682 |
Spring Return Brake T/a Zinc Price: Call Us |
| 2 |
63-4050 |
FITTING-HYD Price: $137.82 |
| 3 |
123666X |
Pulley Transaxle 18/20" tires Price: Call Us |
| 3 |
70-7130 |
LINE-TUBE Price: $141.98 |
| 4 |
112-0205 |
HYD HOSE ASM Price: $170.87 |
| 4 |
12000028 |
Ring Retainer # 5100-62 Price: Call Us |
| 5 |
121520X |
Strap Torque 30 Degrees Price: Call Us |
| 5 |
83-1200 |
TUBE-TRACTION, LH (LOWER) Price: $110.49 |
| 6 |
107-9519 |
HYD HOSE ASM Price: $83.34 |
| 6 |
17060512 |
Screw 5/16-18 x 3/4 Price: Call Us |
| 7 |
98-0649 |
HOSE-HYD Price: $67.35 |
| 8 |
165619 |
Rod Shifter Fender STLT Price: Call Us |
| 8 |
340-138 |
FITTING-HYD, 45 DEG Price: $31.15 |
| 9 |
115-5296 |
NEEDLE VALVE ASM This part replaces 93-2556. Price: $427.28 |
| 10 |
340-18 |
FITTING-HYD, 90 DEG Price: $38.93 |
| 10 |
76020416 |
Pin Cotter 1/8 x 1 Cad Price: Call Us |
| 11 |
105701X |
Washer Plate Shf 388 Sq Hole Price: Call Us |
| 11 |
340-77 |
FITTING-ELBOW, 90 DEG Price: $24.95 |
| 13 |
74550412 |
Bolt 1/4-28unf Gr8 W/Patch Price: Call Us |
| 14 |
10040400 |
Washer Lock Hvy Helical 1/4 Price: Call Us |
| 14 |
98-2150 |
HOSE-HYD Price: $75.17 |
| 15 |
105-3800 |
CONTROL VALVE ASM Price: $4,089.31 |
| 16 |
304-61 |
CLAMP-HOSE Price: $6.08 |
| 16 |
73800500 |
Nut Lock Hex w/Ins. 5/16-18 Unc Price: Call Us |
| 17 |
32128-20 |
NUT-HF Price: $0.99 |
| 18 |
74780616 |
Bolt Fin Hex 3/8-16 Unc x 1 Gr 5 Price: Call Us |
| 19 |
73800600 |
Nut Lock Hex w/Ins. 38/-16 Unc Price: Call Us |
| 19 |
83-1670 |
FITTING ASM Price: $128.24 |
| 20 |
95-5986 |
HYD HOSE ASM Price: $77.25 |
| 21 |
140845 |
Knob Deluxe Price: Call Us |
| 22 |
130804 |
Rod Brake Blk Zinc 26 840 Price: Call Us |
| 22 |
340-16 |
FITTING-HYD, 90 DEG Price: $54.23 |
| 23 |
71-0990 |
ORIFICE ( .0465 ONE-WAY) Price: $56.83 |
| 24 |
63-4080 |
FITTING-MANIFOLD Price: $236.16 |
| 24 |
73350600 |
Nut Hex Jam 3/8-16 Unc Price: Call Us |
| 25 |
106888X |
Spring Rod Brake 2 00 Zinc Price: Call Us |
| 25 |
322-14 |
SCREW-HH Price: $1.01 |
| 26 |
19131316 |
Washer 13/32 x 13/16 x 16 Ga. Price: Call Us |
| 26 |
63-4030 |
TUBE-HYD Price: $148.62 |
| 27 |
63-4020 |
TUBE-HYD Price: $176.67 |
| 27 |
76020412 |
Pin Cotter 1/8 x 3/4 Cad Price: Call Us |
| 28 |
175765 |
Rod Brake Parking Lt/Yt Price: Call Us |
| 28 |
340-101 |
FITTING-HYD, 45 DEG Price: $31.00 |
| 29 |
71673 |
Cap Brake Parking Price: Call Us |
| 30 |
169592 |
Bracket Mtg Transaxle Price: Call Us |
| 30 |
95-5987 |
HOSE-HYD Price: $68.07 |
| 32 |
12-3270 |
SCREW Price: $3.09 |
| 32 |
74760512 |
Bolt Hex Hd 5/16-18 Unc x 3/4 Price: Call Us |
| 33 |
3234-4 |
SCREW-HHF Price: $0.50 |
| 34 |
175578 |
Shaft Asm Pedal Foot Price: Call Us |
| 34 |
98-0648 |
HYD HOSE ASM Price: $166.79 |
| 35 |
120183X |
Bearing Nylon Blk 629 Id Price: Call Us |
| 35 |
98-2153 |
HYD HOSE ASM Price: $126.10 |
| 36 |
19211616 |
Washer 21/32 x 1 x 16 Ga Price: Call Us |
| 36 |
2412-41 |
CLAMP-R Price: $4.82 |
| 37 |
1572H |
Pin Roll 3/16 x 1" Price: Call Us |
| 37 |
3296-16 |
NUT-LOCK, NI Price: $1.39 |
| 38 |
179114 |
Pulley Composite Flat Price: Call Us |
| 38 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 39 |
74760648 |
Bolt Fin Hex 3/8-16unc x 3 Price: Call Us |
| 39 |
83-1890 |
SWITCH-BALL Price: $63.08 |
| 40 |
38-0410 |
NUT-HEX Price: $5.77 |
| 41 |
175556 |
Keeper Belt Idler Price: Call Us |
| 47 |
127783 |
Pulley Idler Price: Call Us |
| 48 |
154407 |
Bellcrank Clutch Grnd Drv STL Price: Call Us |
| 49 |
123205X |
Retainer Belt Style Spring Price: Call Us |
| 50 |
74760624 |
Bolt Hex Hd 3/8-16 Unc x 1-1/2 Price: Call Us |
| 51 |
73680600 |
Nut Crownlock 3/8-16 UNC Price: Call Us |
| 52 |
73680500 |
Nut Crown Lock 5/16-18 Price: Call Us |
| 53 |
105710X |
Link Clutch 7 66 Price: Call Us |
| 55 |
105709X |
Spring Return Clutch 6 75 Price: Call Us |
| 56 |
17060620 |
Screw 3/8-16 x 1-1/4 Price: Call Us |
| 57 |
130801 |
V-Belt Gd Drive Price: Call Us |
| 59 |
169691 |
Keeper Belt Centerspan Price: Call Us |
| 61 |
17120614 |
Screw 3/8-16 x .875 Price: Call Us |
| 62 |
8883R |
Cover Pedal Blk Round Price: Call Us |
| 63 |
175410 |
Pulley Eng Price: Call Us |
| 64 |
71170764 |
Bolt Hex 7/16-20 x 4 Gr 5 Price: Call Us |
| 65 |
10040700 |
Washer Lock Hvy Hlcl Spr 7/16 Price: Call Us |
| 66 |
154778 |
Keeper Belt Engine Price: Call Us |
| 69 |
145432 |
Screw Hex Wsh Hi-Lo 1/4-1/2 Unc Price: Call Us |
| 70 |
134683 |
Guide Belt Mower Drive RH Price: Call Us |
| 74 |
137057 |
Spacer Split Price: Call Us |
| 75 |
121749X |
Washer 25/32 x 1 1/4 x 16 Ga Price: Call Us |
| 76 |
12000001 |
E-ring #5133-75 Price: Call Us |
| 77 |
123583X |
Key Square Price: Call Us |
| 78 |
121748X |
Washer 25/32 x 1-5/8 x 16ga Price: Call Us |
| 79 |
2228M |
Key Woodruff Price: Call Us |
| 80 |
145090 |
Arm, Shift Price: Call Us |
| 81 |
165592 |
Shaft Assembly Price: Call Us |
| 82 |
123782X |
Spring, Torsion Price: Call Us |
| 83 |
19171216 |
Washer 17/32 x 3/4 x 16 Gauge Price: Call Us |
| 84 |
166231 |
Link Transaxle Price: Call Us |
| 85 |
150360 |
Nut, Nylock Price: Call Us |
| 89 |
169372X428 |
Console, Shift, STLT Price: Call Us |
| 96 |
4497H |
Retainer Spring Price: Call Us |
| 112 |
19091210 |
Washer 9/32 x 3/4 x 10 Ga Price: Call Us |
| 113 |
127285X |
Strap Torque Price: Call Us |
| 116 |
72140608 |
Bolt Rd Hd Sqnk 3/8-16 x 1 Unc Price: Call Us |
| 120 |
73900600 |
Nut Lock Flg. 3/8-16 Unc Price: Call Us |
| 145 |
74490540 |
Bolt Hex Flghd 5/16-18 x Gr.5 Price: Call Us |
| 150 |
175456 |
Spacer Retainer Price: Call Us |
| 151 |
19133210 |
Washer 13/32 x 2 x 10 Ga. Price: Call Us |
| 156 |
166002 |
Washer Srrted 5/16ID x 1 .125 Price: Call Us |
| 158 |
165589 |
Bracket Shift Mount Price: Call Us |
| 159 |
165494 |
Hub Tapered Flange Shift Lt Price: Call Us |
| 161 |
72140406 |
Bolt Rdhd Sqnk 1/4-20 x 3/4 Gr.5 Price: Call Us |
| 162 |
73680400 |
Nut Crownlock 1/4-20 UNC Price: Call Us |
| 163 |
74780416 |
Bolt Hex Fin 1/4-20 UNC x 1 Gr.5 Price: Call Us |
| 164 |
19091010 |
Washer 5/8 x .281 x 10 Ga. Price: Call Us |
| 165 |
165623 |
Bracket Pivot Lever Price: Call Us |
| 166 |
166880 |
Screw 5/16-18 x 5/8 Price: Call Us |
| 168 |
165492 |
Bolt shoulder 5/16-18 x .561 Price: Call Us |
| 169 |
165580 |
Plate Fastening Lt Price: Call Us |
| 170 |
178394 |
Keeper Belt T/A Price: Call Us |
| 197 |
169613 |
Nyliner Snap-In 5/8" ID Price: Call Us |
| 198 |
169593 |
Washer Nyl 7/8ID x .105" Price: Call Us |
| 202 |
72110612 |
Bolt Carr Sh 3/8-16 x 1-1/2 Gr.5 Price: Call Us |
